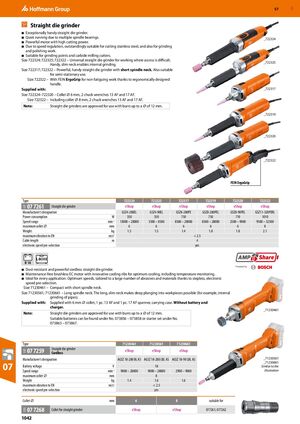

Ручные и измерительные инструменты Hoffmann Group 2026 - страница 1042

GBP 57 ​ Straight die grinder ■ Exceptionally handy straight die grinder. ■ Quiet running due to multiple spindle bearings. _722324 ■ Powerful motor with high cutting power. ■ Due to speed regulation, outstandingly suitable for cutting stainless steel, and also for grinding and polishing work. ■ Suitable for grinding points and carbide milling cutters. Size 722324; 722325; 722322 – Universal straight die grinder for working where access is difficult. _722325 Handy, slim neck enables internal grinding. Size 722317; 722322 – Powerful, handy straight die grinder with short spindle neck. Also suitable for semi-stationary use. Size 722322 – With FEIN ErgoGrip for non-fatiguing work thanks to ergonomically designed handle. Supplied with: _722317 Size 722324–722320 – Collet ⌀ 6 mm, 2 chuck wrenches 13 AF and 17 AF. Size 722322 – Including collet ⌀ 8 mm, 2 chuck wrenches 13 AF and 17 AF. Note: Straight die grinders are approved for use with burrs up to a ⌀ of 12 mm. _722319 _722320 _722322 FEIN ErgoGrip Type 722324 722325 722317 722319 722320 722322 07 7261 Straight die grinder eShop eShop eShop eShop eShop eShop 03F Manufacturer‘s designation GSZ4-280EL GSZ4-90EL GSZ8-280PE GSZ8-280PEL GSZ8-90PEL GSZ11-320PERL Power consumption W 350 350 750 750 710 1010 Speed range min-1 13000 – 28000 3500 – 8500 8500 – 28000 8500 – 28000 2500 – 9000 9500 – 32500 maximum collet ⌀ mm 6 6 6 6 6 8 Weight kg 1.5 1.5 1.4 1.8 1.8 2.1 maximum vibration to EN m/s2 < 2.5 Cable length m 4 electronic speed pre-selection yes L-BOXX B 18 ■ Dust-resistant and powerful cordless straight die grinder. ■ Maintenance-free brushless EC motor with innovative cooling ribs for optimum cooling, including temperature monitoring. ■ Ideal for every application. Optimum speeds, tailored to a large number of abrasives and materials thanks to stepless, electronic speed pre-selection. Size 71230461 – Compact with short spindle neck. Size 71230561; 71230661 – Long spindle neck. The long, slim neck makes deep plunging into workpieces possible (for example, internal grinding of pipes). Supplied with: Supplied with 6 mm ⌀ collet, 1 pc. 13 AF and 1 pc. 17 AF spanner, carrying case. Without battery and charger. _71230461 Note: Straight die grinders are approved for use with burrs up to a ⌀ of 12 mm. Suitable batteries can be found under No. 073856 – 073858 or starter set under No. 073863 – 073867. Type 71230461 71230561 71230661 Straight die grinder 07 7259 eShop eShop eShop 03F Cordless Manufacturer‘s designation AGSZ 18-280 BL AS AGSZ 18-280 LBL AS AGSZ 18-90 LBL AS _71230561 _71230661 07 Battery voltage Speed range V min-1 9000 – 28000 18 9000 – 28000 2900 – 9000 Similar to the illustration maximum collet ⌀ mm 8 Weight kg 1.4 1.6 1.6 maximum vibration to EN m/s2 < 2.5 electronic speed pre-selection yes Collet ⌀ mm 6 8 suitable for 07 7268 03G Collet for straight grinder eShop eShop 077261; 077262 1042
