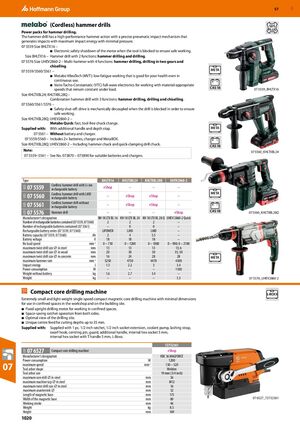

Ручные и измерительные инструменты Hoffmann Group 2026 - страница 1020

GBP 57 (Cordless) hammer drills SDS PLUS Power packs for hammer drilling. The hammer drill has a high-performance hammer action with a precise pneumatic impact mechanism that generates impacts with maximum impact energy with minimal pressure. 07 5559 Size BHLTX16 – ■ Electronic safety shutdown of the motor when the tool is blocked to ensure safe working. Size BHLTX16 – Hammer drill with 2 functions: hammer drilling and drilling. 07 5576 Size UHEV2860-2 – Multi-hammer with 4 functions: hammer drilling, drilling in two gears and chiselling. 07 5559/5560/5561 – META ■ Metabo VibraTech (MVT): low-fatigue working that is good for your health even in continuous use. ■ Vario-Tacho-Constamatic (VTC) full-wave electronics for working with material-appropriate speeds that remain constant under load. CAS 18 07 5559_BHLTX16 Size KHLTXBL24; KHLTXBL28Q – Combination hammer drill with 3 functions: hammer drilling, drilling and chiselling. 07 5560/5561/5576 – ■ Safety shut-off: drive is mechanically decoupled when the drill is blocked in order to ensure safe working. Size KHLTXBL28Q; UHEV2860-2 – Metabo Quick: fast, tool-free chuck change. Supplied with: With additional handle and depth stop. META 07 5561 – Without battery and charger. 07 5559/5560 – Includes 2× batteries, charger and MetaBOX. Size KHLTXBL28Q; UHEV2860-2 – Including hammer chuck and quick-clamping drill chuck. CAS 18 Note: 07 5560_KHLTXBL24 07 5559–5561 – See No. 073870 – 073890 for suitable batteries and chargers. Type BHLTX16 KHLTXBL24 KHLTXBL28Q UHEV2860-2 Cordless hammer drill with Li-ion 07 5559 03D eShop – – – rechargeable battery Cordless hammer drill with LiHD META 07 5560 03D – eShop eShop – ­rechargeable battery Cordless hammer drill without 07 5561 03D 03D – eShop eShop – ­rechargeable battery CAS 18 07 5576 Hammer drill – – – eShop 07 5560_KHLTXBL28Q Manufacturer‘s designation BH 18 LTX BL 16 KH 18 LTX BL 24 KH 18 LTX BL 28 Q UHEV 2860-2 Quick Number of rechargeable batteries contained (07 5559, 07 5560) 2 2 2 – Number of rechargeable batteries contained (07 5561) – 0 0 – Rechargeable battery series (07 5559, 07 5560) LiPOWER LiHD LiHD – Battery capacity (07 5559, 07 5560) Ah 2 4 5.5 – Battery voltage V 18 18 18 – No load speed min-1 0 – 730 0 – 1280 0 – 1000 0 – 900; 0 – 2100 maximum twist drill size ⌀ in steel mm 13 13 13 13; 6 maximum twist drill size ⌀ in wood mm 20 30 30 35; 30 maximum twist drill size ⌀ in concrete mm 16 24 28 28 META maximum hammer rate min-1 5250 4750 4470 4500 Impact energy J 1.3 2.2 3 3.4 Power consumption W – – – 1100 Weight without battery kg 1.6 2.7 3.4 – Weight kg – – – 3.3 07 5576_UHEV2860-2 Compact core drilling machine L-BOXX Extremely small and light-weight single-speed compact magnetic core drilling machine with minimal dimensions for use in confined spaces in the workshop and on the building site. ■ Fixed upright drilling motor for working in confined spaces. ■ Space-saving ratchet operation from both sides. ■ Optimal view of the drilling site. ■ Unique centre feed for cutting depths up to 35 mm. Supplied with: Supplied with 1 pc. 1/2 inch ratchet, 1/2 inch socket extension, coolant pump, lashing strap, swarf hook, centring pin, guard, additional handle, internal hex socket 5 mm, internal hex socket with T handle 5 mm, L-Boxx. ​ 72732361 07 6527 Compact core drilling machine eShop 03F Manufacturer‘s designation KBC 36 MAGFORCE Power consumption W 1200 07 maximum speed Tool arbor shape Tool arbor size min-1 130 – 520 Weldon 19 mm (3/4 inch) maximum core drill ⌀ in steel mm 36 maximum machine tap ⌀ in steel mm M12 maximum twist drill size ⌀ in steel mm 16 maximum countersink ⌀ mm 32 Length of magnetic base mm 175 Width of the magnetic base mm 80 07 6527_72732361 Working stroke mm 46 Weight kg 8.5 Height mm 169 1020
