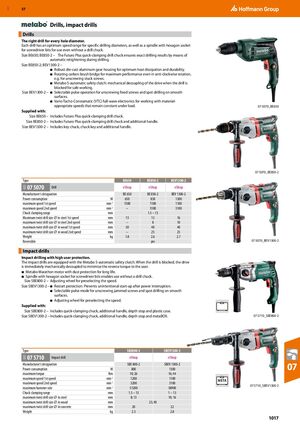

GBP 57 ​ Drills, impact drills Drills ​ The right drill for every hole diameter. Each drill has an optimum speed range for specific drilling diameters, as well as a spindle with hexagon socket for screwdriver bits for use even without a drill chuck. Size BE650; BE850-2 – The Futuro Plus quick-clamping drill chuck ensures exact drilling results by means of automatic retightening during drilling. Size BE850-2; BEV1300-2 – ■ Robust die-cast aluminum gear housing for optimum heat dissipation and durability. ■ Rotating carbon brush bridge for maximum performance even in anti-clockwise rotation, e.g. for unscrewing stuck screws. ■ Metabo S-automatic safety clutch: mechanical decoupling of the drive when the drill is blocked for safe working. Size BEV1300-2 – ■ Selectable pulse operation for unscrewing fixed screws and spot drilling on smooth surfaces. ■ Vario-Tacho-Constamatic (VTC) full-wave electronics for working with material- appropriate speeds that remain constant under load. 07 5070_BE650 Supplied with: Size BE650 – Includes Futuro Plus quick-clamping drill chuck. Size BE850-2 – Includes Futuro Plus quick-clamping drill chuck and additional handle. Size BEV1300-2 – Includes key chuck, chuck key and additional handle. 07 5070_BE850-2 Type BE650 BE850-2 BEV1300-2 07 5070 03D Drill eShop eShop eShop Manufacturer‘s designation BE 650 BE 850-2 BEV 1300-2 Power consumption W 650 850 1300 maximum speed 1st speed min-1 1500 1100 1100 maximum speed 2nd speed min-1 – 3100 3100 Chuck clamping range mm 1.5 – 13 Maximum twist drill size ⌀ in steel 1st speed mm 13 13 16 maximum twist drill size ⌀ in steel 2nd speed mm – 8 10 maximum twist drill size ⌀ in wood 1st speed mm 30 40 40 maximum twist drill size ⌀ in wood 2nd speed mm – 25 25 Weight kg 1.8 2.6 2.7 Reversible yes 07 5070_BEV1300-2 Impact drills ​ Impact drilling with high user protection. The impact drills are equipped with the Metabo S-automatic safety clutch. When the drill is blocked, the drive is immediately mechanically decoupled to minimise the reverse torque to the user. ■ Metabo Marathon motor with dust protection for long life. ■ Spindle with hexagon socket for screwdriver bits enables use without a drill chuck. Size SBE800-2 – Adjusting wheel for preselecting the speed. Size SBEV1300-2 – ■ Restart protection: Prevents unintentional start-up after power interruption. ■ Selectable pulse mode for unscrewing jammed screws and spot drilling on smooth surfaces. ■ Adjusting wheel for preselecting the speed. Supplied with: Size SBE800-2 – Includes quick-clamping chuck, additional handle, depth stop and plastic case. Size SBEV1300-2 – Includes quick-clamping chuck, additional handle, depth stop and metaBOX. 07 5710_SBE800-2 Type SBE800-2 SBEV1300-2 07 5710 03D Impact drill eShop eShop Manufacturer‘s designation Power consumption maximum torque W Nm SBE 800-2 800 10; 26 SBEV 1300-2 1300 16; 44 07 maximum speed 1st speed min-1 1200 1100 META maximum speed 2nd speed min-1 3200 3100 07 5710_SBEV1300-2 maximum hammer rate min-1 51200 58900 Chuck clamping range mm 1.5 – 13 1 – 13 maximum twist drill size ⌀ in steel mm 8; 13 10; 16 maximum twist drill size ⌀ in wood mm 25; 40 maximum twist drill size ⌀ in concrete mm 20 22 Weight kg 2.3 2.8 1017
