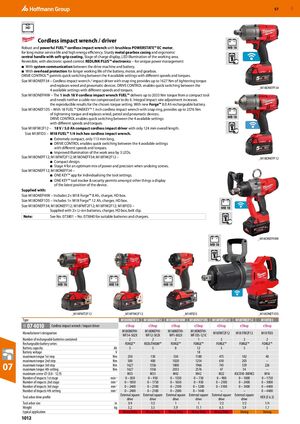

Ручные и измерительные инструменты Hoffmann Group 2026 - страница 1012

GBP 57 HD Cordless impact wrench / driver Robust and powerful FUEL™ cordless impact wrench with brushless POWERSTATE™ EC motor, MB 18 for long motor service life and high energy efficiency. Sturdy metal gearbox casing and ergonomic central handle with soft-grip coating. Stage of charge display, LED illumination of the working area. Reversible, with electronic speed control. REDLINK PLUS™ electronics − for unique power management: ■ With system communication between the drive machine and battery. ■ With overload protection for longer working life of the battery, motor, and gearbox. DRIVE CONTROL™ permits quick switching between the 4 available settings with different speeds and torques. Size M18ONEFF34 – Cordless impact wrench / impact driver with snap ring provides up to 1627 Nm of tightening torque and replaces wired and pneumatic devices. DRIVE CONTROL enables quick switching between the _M18ONEFF34 4 available settings with different speeds and torques. Size M18ONEFHIW – The 1 inch 18 V cordless impact wrench FUEL™ delivers up to 2033 Nm torque from a compact tool and needs neither a cable nor compressed air to do it. Integral impact rate adjustment increases the reproducible results for the chosen torque setting. With new Forge™ 8.0 Ah rechargeable battery. Size M18ONEF1DS – With 18 FUEL™ ONEKEY™ 1 inch cordless impact wrench with snap ring, provides up to 2576 Nm of tightening torque and replaces wired, petrol and pneumatic devices. DRIVE CONTROL enables quick switching between the 4 available settings MB 18 with different speeds and torques. Size M18FIW2F12 – 18 V / 5.0 Ah compact cordless impact driver with only 124 mm overall length. Size M18FID3 – M18 FUEL™ 1/4 inch hex cordless impact wrench. ■ Extremely compact, only 113 mm long. ■ DRIVE CONTROL enables quick switching between the 4 available settings with different speeds and torques. ■ Improved illumination of the work area by 3 LEDs. Size M18ONEFF12; M18FMT2F12; M18ONEFF34; M18FIW2F12 – _M18ONEFF12 ■ Compact design. ■ Stage 4 for an optimum mix of power and precision when undoing screws. Size M18ONEFF12; M18ONEFF34 – ■ ONE KEY™ app for individualising the tool settings. ■ ONE KEY™ tool tracker & security permits amongst other things a display of the latest position of the device. Supplied with: Size M18ONEFHIW – Includes 2× M18 Forge™ 8 Ah, charger, HD box. Size M18ONEF1DS – Includes 1× M18 Forge™ 12 Ah, charger, HD box. Size M18ONEFF34; M18ONEFF12; M18FMT2F12; M18FIW2F12; M18FID3 – MB 18 Supplied with 2× Li-ion batteries, charger, HD box, belt clip. Note: See No. 073801 – No. 073840 for suitable batteries and chargers. _M18ONEFHIW MB 18 MB 18 MB 18 MB 18 _M18FMT2F12 _M18FIW2F12 _M18FID3 _M18ONEF1DS Type M18ONEFF34 M18ONEFF12 M18ONEFHIW M18ONEF1DS M18FMT2F12 M18FIW2F12 M18FID3 07 4010 Cordless impact wrench / impact driver eShop eShop eShop eShop eShop eShop eShop 03L M18ONEFHI- M18ONEFHI- M180NEFHI- M18ONEFHI- Manufacturer‘s designation M18FMT2F12 M18 FIW2F12 M18 FID3 WF34-502X WF12-502X WF1-802X WF1DS-121C Number of rechargeable batteries contained 2 2 2 1 2 2 2 Rechargeable battery series FORGE™ REDLITHIUM™ FORGE™ FORGE™ FORGE™ FORGE™ FORGE™ Battery capacity Ah 5 5 8 12 5 5 5 Battery voltage V 18 maximum torque 1st step Nm 250 130 530 1180 475 102 40 maximum torque 2nd step Nm 500 400 1020 1254 610 203 – 07 maximum torque 3rd step maximum torque 4th setting maximum screw ⌀ (8.8 - 12.9) Nm Nm 1627 1627 M33 1356 1356 M33 1800 2033 M42 1966 2576 M42 745 47 M22 339 34 ASCD18-300W2 226 – M16 Number of impacts 1st stage min-1 0 – 850 0 – 950 0 – 1350 0 – 750 0 – 900 0 – 1000 0 – 1750 Number of impacts 2nd stage min-1 0 – 1850 0 – 1750 0 – 1650 0 – 930 0 – 2100 0 – 2400 0 – 3000 Number of impacts 3rd stage min -1 0 – 2400 0 – 2100 0 – 2100 0 – 1200 0 – 3100 0 – 3400 0 – 4400 Number of impacts 4th setting min-1 0 – 2400 0 – 2100 0 – 2500 0 – 1440 – – 0 – 4400 External square External square External square External square External square External square Tool arbor drive profile HEX (E 6.3) drive drive drive drive drive drive Tool arbor size in 3/4 1/2 1 1 1/2 1/2 1/4 Weight kg 3.2 3.3 5.9 11.1 6.3 5.9 1.7 typical application Heavy Duty Heavy Duty Heavy Duty Heavy Duty Heavy Duty Strong Strong 1012
