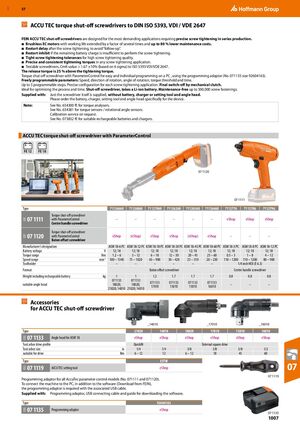

GBP 57 ACCU TEC torque shut-off screwdrivers to DIN ISO 5393, VDI / VDE 2647 FEIN ACCU TEC shut-off screwdrivers are designed for the most demanding applications requiring precise screw tightening in series production. ■ Brushless EC motors with working life extended by a factor of several times and up to 80 % lower maintenance costs. ■ Restart delay after the screw tightening, to avoid “follow-up”. ■ Restart inhibit if the remaining battery charge is insufficient to perform the screw tightening. ■ Tight screw tightening tolerances for high screw tightening quality. ■ Precise and consistent tightening torques in any screw tightening application. ■ Testable screwdrivers, CmK-value > 1.67 ±10% (based on 6 sigma) to ISO 5393 VDI/VDE 2647. The release torque is 25 % above the tightening torque. Torque shut-off screwdriver with ParameterControl for easy and individual programming on a PC , using the programming adaptor (No. 071135 size 92604163). Freely programmable parameters: Speed, direction of rotation, angle of rotation, torque threshold and time. Up to 5 programmable steps. Precise configuration for each screw tightening application. Final switch-off by mechanical clutch. Ideal for optimising the process and time. Shut-off screwdriver, takes a Li-ion battery. Maintenance-free up to 500,000 screw fastenings. Supplied with: Just the screwdriver itself is supplied, without battery, charger or setting tool and angle head. Please order the battery, charger, setting tool and angle head specifically for the device. Note: See No. 654300 ff. for torque analysers. See No. 654381 for torque sensors / rotational angle sensors. Calibration service on request. See No. 073832 ff. for suitable rechargeable batteries and chargers. ACCU TEC torque shut-off screwdriver with ParameterControl ​ FE 12 FE 18 07 1120 07 1111 Type 71126660 71126860 71127060 71126260 71126360 71126460 7112776 7112786 7112796 Torque shut-off screwdriver 07 1111 with ParameterControl – – – – – – eShop eShop eShop 03F Centre handle screwdriver Torque shut-off screwdriver 07 1120 with ParameterControl eShop (eShop) eShop eShop (eShop) eShop – – – 03F Baton offset screwdriver Manufacturer‘s designation ASW 18-6 PC ASW 18-12 PC ASW 18-18 PC ASW 18-30 PC ASW 18-45 PC ASW 18-60 PC ASM 18-3 PC ASM 18-8 PC ASM 18-12 PC Battery voltage V 12; 18 12; 18 12; 18 12; 18 12; 18 12; 18 12; 18 12; 18 12; 18 Torque range Nm 1.2 – 6 3 – 12 6 – 18 12 – 30 20 – 45 25 – 60 0.5 – 3 1–8 4 – 12 Speed range min 100 – 1340 75 – 1020 -1 65 – 900 30 – 420 25 – 310 20 – 230 110 – 1200 110 – 1200 80 – 900 Toolholder – – – – – – 1/4 inch HEX (E 6.3) Format Baton offset screwdriver Centre handle screwdriver Weight including rechargeable battery kg 1 1 1.2 1.7 1.7 1.7 0.8 0.8 0.8 071133 071133 071133 071133 071133 071133 suitable angle head 18020; 18020; – – – 17010 15010 15010 16010 21020; 14010 21020; 14010 ​ Accessories for ACCU TEC shut-off screwdriver _14010 _17010 _16010 Type 21020 14010 18020 17010 15010 16010 07 1133 03G Angle head for ASW 18 eShop eShop eShop eShop eShop eShop Tool arbor drive profile QuickIN External square drive Tool arbor size in 1/4 1/4 3/8 3/8 3/8 1/2 suitable for drive Nm 6 – 12 12 6 – 12 18 45 60 Type ESTW 07 1119 07 03G ACCU TEC setting tool eShop 07 1119 Programming adaptor for all AccuTec parameter control models (No. 071111 and 071120). To connect the machine to the PC, in addition to the software (Download from FEIN), the programming adaptor is required with the associated USB cable. Supplied with: Programming adaptor, USB connecting cable and guide for downloading the software. Type 92604163 07 1135 03G Programming adaptor eShop 07 1135 1007
