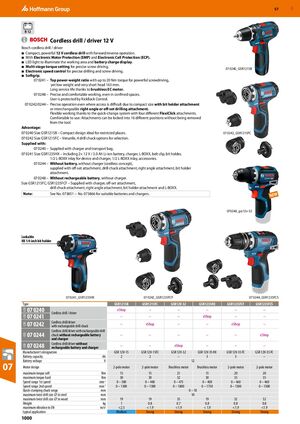

GBP 57 B 12 Cordless drill / driver 12 V Bosch cordless drill / driver ■ Compact, powerful 12 V cordless drill with forward/reverse operation. ■ With Electronic Motor Protection (EMP) and Electronic Cell Protection (ECP). ■ LED light to illuminate the working area and battery charge display. ■ Multi-stage torque setting for precise screw driving. 07 0240_GSR1215B ■ Electronic speed control for precise drilling and screw driving. ■ Softgrip. 07 0241 – Top power-weight ratio with up to 20 Nm torque for powerful screwdriving, yet low weight and very short head 163 mm. Long service life thanks to brushless EC motor. 07 0248 – Precise and comfortable working, even in confined spaces. User is protected by KickBack Control. 07 0242/0244 – Precise operation even where access is difficult due to compact size with bit holder attachment or interchangeable right angle or off-set drilling attachment. Flexible working thanks to the quick-change system with four different FlexiClick attachments. Comfortable to use: Attachments can be locked into 16 different positions without being removed from the tool. Advantage: 07 0240 Size GSR1215B – Compact design ideal for restricted places. 07 0242_GSR1215FC 07 0242 Size GSR1215FC – Versatile, 4 drill chuck options for selection. Supplied with: 07 0240 – Supplied with charger and transport bag. 07 0241 Size GSR1235HX – Including 2× 12 V / 3.0 Ah Li-ion battery, charger, L-BOXX, belt clip, bit holder, 1/2 L-BOXX inlay for device and charger, 1/2 L-BOXX inlay, accessories. 07 0244 – Without battery, without charger (cordless concept), supplied with off-set attachment, drill chuck attachment, right angle attachment, bit holder attachment. 07 0248 – Without rechargeable battery, without charger. Size GSR1215FC; GSR1235FCF – Supplied with charger, off-set attachment, drill chuck attachment, right angle attachment, bit holder attachment and L-BOXX. Note: See No. 073851 − No. 073866 for suitable batteries and chargers. NEW 070248_gsr12v-32 Lockable HX 1/4 inch bit holder 07 0241_GSR1235HX 07 0242_GSR1235FCF 07 0244_GSR1235FCS Type GSR1215B GSR1215FC GSR12V-32 GSR1235HX GSR1235FCF GSR1235FCS 07 0240 eShop – – – – – 03B 03B Cordless drill / driver 07 0241 – – – eShop – – Cordless drill/driver 07 0242 – eShop – – eShop – 03B with exchangeable drill chuck Cordless drill/driver with exchangeable drill 07 0244 chuck without rechargeable battery – – – – – eShop 03B and charger Cordless drill/driver without 07 0248 – – eShop – – – 03B rechargeable battery and charger Manufacturer‘s designation GSR 12V-15 GSR 12V-15FC GSR 12V-32 GSR 12V-35 HX GSR 12V-35 FC GSR 12V-35 FC Battery capacity Ah 2 2 – 3 3 – Battery voltage V 12 07 Motor design maximum torque soft Nm 2-pole motor 15 2-pole motor 15 Brushless motor 21 Brushless motor 15 2-pole motor 20 2-pole motor 20 maximum torque hard Nm 30 30 32 30 35 35 Speed range 1st speed min-1 0 – 380 0 – 400 0 – 475 0 – 400 0 – 460 0 – 460 Speed range 2nd speed min-1 0 – 1300 0 – 1300 0 – 1800 0 – 1750 0 – 1300 0 – 1300 Quick-clamping chuck range mm 0 – 10 maximum twist drill size ⌀ in steel mm 10 maximum twist drill size ⌀ in wood mm 19 19 35 19 32 32 Weight kg 1 0.8 0.7 0.8 0.8 0.8 maximum vibration to EN m/s2 <2.5 < 1.9 <1.9 < 1.9 <1.9 <1.9 typical application Medium Strong Strong Strong Strong Strong 1000
