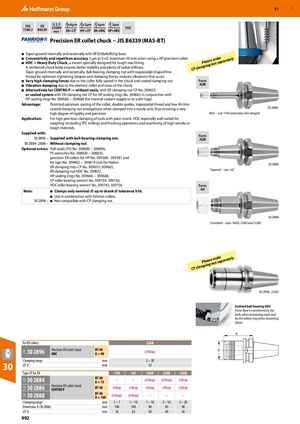

GBP 57 ISO JIS G 2.5 ≤6µm ≤3µm 6µm 3µm 7388-2 B6339 25000 HSC min-1 ER+CP HP+CP ER+HDC HP+HDC Precision ER collet chuck − JIS B6339 (MAS-BT) ■ Taper ground internally and externally with RFID/Balluffchip bore. ■ Concentricity and repetition accuracy 3 μm at 3×D, maximum 50 mm when using a HP precision collet. er e ord ately ■ HDC = Heavy Duty Chuck, a mount specially designed for rough machining. Pleas nut separ in g A reinforced chuck body ensures better stability and plenty of radial stiffness. CP c lamp Taper ground internally and externally. Ball-bearing clamping nut with trapezoidal-shaped fine thread for optimum tightening torques and clamping forces, reduces vibrations that occur. ■ Very high clamping forces due to the collet fully seated in the chuck and coated clamping nut. Form ■ Vibration damping due to the element collet and mass of the chuck. ADB ■ Alternatively for CENTRO P -> without seals, with ER clamping nut CP No. 309655 or sealed system with ER clamping nut CP for HP sealing rings No. 309665 in conjunction with HP sealing rings No. 309666 − 309668 (for internal coolant supply or as a dirt trap). Advantage: Patented optimum seating of the collet, double guides, trapezoidal thread and low-friction coated clamping nut amalgamate when clamped into a sturdy unit, thus ensuring a very 30 2886 high degree of rigidity and precision. Mini – size 11M (extremely slim design!) Application: For high precision clamping of tools with plain shank. HDC especially well-suited for roughing (including TPC milling) and finishing operations and machining of high-tensile or tough materials. Supplied with: Form 30 2896 – Supplied with ball-bearing clamping nut. ADB 30 2884–2888 – Without clamping nut. Optional extras: Pull studs (PS) No. 308600 – 308806, PS wrenches No. 308820 – 308835, precision ER collets for HP No. 309368 - 309381 and for taps No. 309402 − 309419 (not for Holex). 30 2886 ER clamping nuts CP No. 309655; 309665, ER clamping nut HDC No. 309657, Tapered − size 16C HP sealing rings No. 309666 − 309668, CP roller bearing wrench No. 309754; 309756, HDC roller bearing wrench No. 309745; 309756. Form AD Note: Clamps only nominal ⌀ up to shank ⌀ tolerance h10. ■  ■ Use in combination with Fahrion collets. 30 2896 – ■ Not compatible with CP clamping nut. 30 2884 Standard – sizes 16AD, 25AD and 32AD er e ord ately Pleas nut separ in g CP clamp 30 2896_32AD Inclined ball bearing HDC Force flow is transferred by the balls when tensioning (red) and by the safety ring when loosening (blue). A for ER collets 32AD Precision ER collet chuck BT 40 D 30 2896 (eShop) 33F HDC A = 90 Clamping range mm 2 – 20 30 ⌀ D Type CP for ER mm 11M 16C 53 16AD 25AD 32AD BT 40 30 2884 – – (eShop) (eShop) eShop 33F A = 75 Precision ER collet chuck 30 2886 BT 40 eShop eShop eShop eShop eShop 33F CENTRO P BT 40 30 2888 (eShop) (eShop) – – – 33F A = 160 Clamping range mm 1–7 1 – 10 1 – 10 2 – 16 2 – 20 Dimension A (30 2886) mm 100 100 90 90 90 ⌀ D mm 16 24 30 40 50 992
