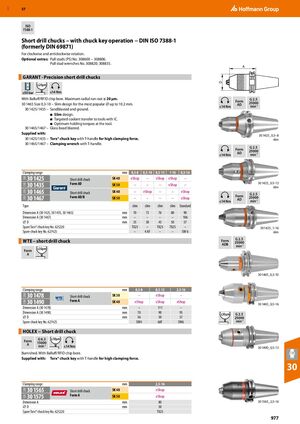

GBP 57 ISO 7388-1 S​ hort drill chucks – with chuck key operation − DIN ISO 7388-1 (formerly DIN 69871) For clockwise and anticlockwise rotation. Optional extras: Pull studs (PS) No. 308600 − 308806. Pull stud wrenches No. 308820; 308835. A GARANT - Precision short drill chucks ​ D ≤20µm ≤50 bar ≤14 Nm With Balluff/RFID chip bore. Maximum radial run-out ≤ 20 µm. G 2.5 Form 25000 30 1465 Size 0,3-10 – Slim design for the most popular ⌀ up to 10.2 mm. AD ≤14 Nm min-1 30 1425/1435 – Sandblasted and ground. ■ Slim design. ■ Targeted coolant transfer to tools with IC. ■ Optimum holding torques at the tool. 30 1465/1467 – Glass bead blasted. Supplied with: 30 1425_0.3–8 30 1425/1435 – Torx® chuck key with T-handle for high clamping force. slim 30 1465/1467 – Clamping wrench with T-handle. Form G 2.5 AD 25000 ≤14 Nm min-1 Clamping range mm 0,3-8 0,3-10 0,5-13 1-16 0,5-16 30 1425 SK 40 eShop – eShop eShop – 31B 31B 31B 31B Short drill chuck Form AD 30 1425_0.5-13 30 1435 SK 50 – – – eShop – slim 30 1465 Short drill chuck SK 40 – eShop – – eShop G 2.5 Form AD/B Form 30 1467 SK 50 – – – – eShop ≤14 Nm AD 25000 min-1 Type slim slim slim slim Standard Dimension A (30 1425, 30 1435, 30 1465) mm 70 73 76 80 90 Dimension A (30 1467) mm – – – – 106 ⌀ D mm 35 38 43 50 57 Spare Torx® chuck key No. 625220 TX25 – TX25 TX25 – 30 1425_1-16 Spare chuck key No. 627425 – 4 AF – – SW 6 slim G 2.5 WTE – short drill chuck ​ Form 25000 ADB min-1 ≤30µm Form A 30 1465_0,3-10 Clamping range mm 0,3-8 0,5-13 2,5-16 30 1478 33W 33W Short drill chuck SK 30 – eShop – Form A 30 1490 SK 40 eShop eShop eShop 30 1465_0,5-16 Dimension A (30 1478) mm – 111 – Dimension A (30 1490) mm 70 90 95 ≤30µm G 2.5 ⌀ D mm 36 50 57 25000 Spare chuck key No. 627425 SW4 6AF SW6 min-1 HOLEX − Short drill chuck ​ G 6.3 ≤50µm Form 15000 A min-1 ≤14 Nm 30 1490_0,5-13 Burnished. With Balluff/RFID chip bore. Supplied with: Torx® chuck key with T-handle for high clamping force. 30 Clamping range mm 2,5-16 30 1565 SK 40 eShop 32K 32K Short drill chuck Form A 30 1575 SK 50 eShop Dimension A mm 80 30 1565_2,5-16 ⌀ D mm 50 Spare Torx® chuck key No. 625220 TX25 977
