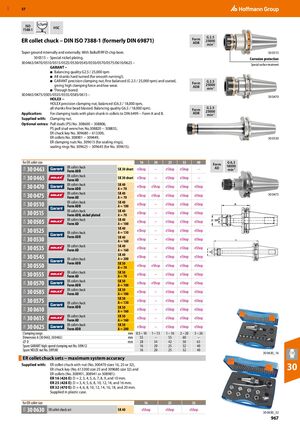

GBP 57 ≤3µm ISO HSC 7388-1 Form G 2.5 ​ER collet chuck – DIN ISO 7388-1 (formerly DIN 69871) ADB 25000 min-1 Taper ground internally and externally. With Balluff/RFID chip bore. 30 0515 30 0515 – Special nickel plating. Corrosion protection 30 0463/0470/0510/0515/0525/0530/0545/0550/0570/0575/0610/0625 – Special surface treatment GARANT − ■ Balancing quality G2.5 / 25,000 rpm ■ All shanks hard turned (for smooth running!). ■ GARANT precision clamping nut, fine balanced (G 2.5 / 25,000 rpm) and coated, G 2.5 Form 25000 giving high clamping force and low wear. ADB ■ Through bored. min-1 30 0465/0475/0505/0535/0555/0585/0615 – 30 0470 HOLEX − HOLEX precision clamping nut, balanced (G6.3 / 18,000 rpm, all shanks fine bead blasted. Balancing quality G6.3 / 18,000 rpm). Form G 2.5 ADB 25000 Application: For clamping tools with plain shank in collets to DIN 6499 − Form A and B. min-1 Supplied with: Clamping nut. Optional extras: Pull studs (PS) No. 308600 − 308806, PS pull stud wrenches No.308820 − 308835, ER chuck key No. 309680 − 613300, ER collets No. 308901 − 309449, 30 0530 ER clamping nuts No. 309615 (for sealing rings), sealing rings No. 309625 − 309645 (for No. 309615). for ER collet size ​ 16 20 25 32 40 Form G 6,3 ER collet chuck 18000 30 0463 SK 30 short eShop – eShop eShop – AD 31A Form ADB min-1 ER collet chuck 30 0465 SK 30 short eShop – eShop eShop – 32A Form AD ER collet chuck SK 40 30 0470 eShop eShop eShop eShop eShop 31A Form ADB A = 70 ER collet chuck SK 40 30 0475 eShop eShop eShop eShop eShop 30 0475 32A Form AD A = 70 ER collet chuck SK 40 30 0510 eShop – eShop eShop eShop 31A Form ADB A = 100 ER collet chuck SK 40 30 0515 eShop – eShop eShop eShop 31A Form ADB, nickel plated A = 70 ER collet chuck SK 40 30 0505 eShop – eShop eShop eShop 32A Form AD A = 100 SK 40 30 0525 eShop – eShop eShop eShop 31A ER collet chuck A = 130 Form ADB SK 40 30 0530 eShop – eShop eShop eShop 31A A = 160 ER collet chuck SK 40 30 0535 eShop – eShop eShop eShop 32A Form AD A = 160 SK 40 30 0545 eShop – eShop eShop eShop 31A ER collet chuck A = 200 Form ADB SK 50 30 0550 eShop eShop eShop eShop eShop 31A A = 70 ER collet chuck SK 50 30 0555 eShop – eShop eShop eShop 32A Form AD A = 70 ER collet chuck SK 50 30 0570 eShop eShop eShop eShop eShop 31A Form ADB A = 100 ER collet chuck SK 50 30 0585 eShop – eShop eShop eShop 32A Form AD A = 100 SK 50 30 0575 eShop – eShop eShop eShop 31A ER collet chuck A = 130 Form ADB SK 50 30 0610 eShop – eShop eShop eShop 31A A = 160 ER collet chuck SK 50 30 0615 eShop – eShop eShop eShop 32A Form AD A = 160 ER collet chuck SK 50 30 0625 eShop – eShop eShop eShop 31A Form ADB A = 200 Clamping range mm 0.5 – 10 1 – 13 1 – 16 2 – 20 3 – 26 Dimension A (30 0463, 30 0465) mm 55 – 55 60 – ⌀ D mm 28 34 42 50 63 Spare GARANT high-speed clamping nut No. 309612 16 20 25 32 40 Spare HOLEX nut No. 309580 16 20 25 32 40 30 0630_16 ER collet chuck sets − maximum system accuracy Supplied with: ER collet chuck with nut (No. 300470 sizes 16, 25 or 32), ER chuck key (No. 613300 size 25 and 309680 size 32) and ER collets (No. 308901, 308941 or 308981): 30 ER 16 (426 E): D = 2, 3, 4, 5, 6, 7, 8, 9, and 10 mm. ER 25 (428 E): D = 3, 4, 5, 6, 8, 10, 12, 14, and 16 mm. ER 32 (470 E): D = 4, 6, 8, 10, 12, 14, 16, 18, and 20 mm. Supplied in plastic case. for ER collet size ​ 16 25 32 30 0630 SK 40 37D ER collet chuck set eShop eShop eShop 30 0630_32 967
