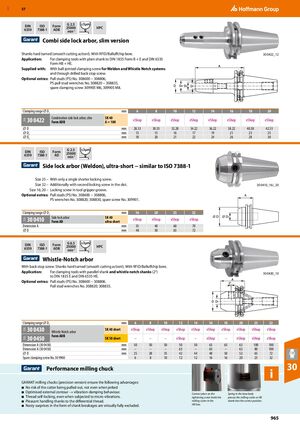

GBP 57 G 2.5 ≤3µm DIN ISO Form 25000 HPC 6359 7388-1 ADB min-1 Combi side lock arbor, slim version Shanks hard turned (smooth cutting action!). With RFID/Balluffchip bore. 30 0422_12 Application: For clamping tools with plain shank to DIN 1835 Form B + E and DIN 6535 Form HB + HE. Supplied with: With ball-jointed clamping screw for Weldon and Whistle Notch systems and through drilled back stop screw. Optional extras: Pull studs (PS) No. 308600 − 308806, PS pull stud wrenches No. 308820 − 308835, spare clamping screw 309905 M6, 309905 M8. Clamping range ⌀ D1 mm 6 8 10 12 14 16 18 20 Combination side lock arbor, slim SK 40 30 0422 eShop eShop eShop eShop eShop eShop eShop eShop 31A Form ADB A = 100 ⌀ D mm 28.33 30.33 32.28 34.22 36.22 38.22 40.38 42.53 ⌀ D2 mm 13 15 16 17 19 21 23 25 ⌀ D3 mm 18 20 21 22 24 26 28 30 G 2.5 ≤3µm DIN ISO Form 25000 6359 7388-1 AD min-1 Side lock arbor (Weldon), ultra-short − similar to ISO 7388-1 Size 25 – With only a single shorter locking screw. Size 32 – Additionally with second locking screw in the slot. 30 0410_16/_20 Size 16; 20 – Locking screw in tool gripper groove. Optional extras: Pull studs (PS) No. 308600 − 308806, A PS wrenches No. 308820; 308830, spare screw No. 309901. Clamping range ⌀ D1 mm 16 20 25 32 Side lock arbor SK 40 ⌀ D ⌀ D 30 0410 eShop eShop eShop eShop 31A Form AD ultra short Dimension A mm 35 40 60 70 ⌀ D mm 48 50 65 72 G 6.3 ≤3µm DIN ISO Form 25000 HPC 6359 7388-1 ADB min-1 Whistle-Notch arbor With back stop screw. Shanks hard turned (smooth cutting action!). With RFID/Balluffchip bore. Application: For clamping tools with parallel shank and whistle notch shanks (2°) 30 0430_10 to DIN 1835 E and DIN 6535 HE. Optional extras: Pull studs (PS) No. 308600 − 308806. Pull stud wrenches No. 308820; 308835. Clamping range ⌀ D1 mm 6 8 10 12 14 16 18 20 25 32 30 0430 SK 40 short eShop eShop eShop eShop eShop eShop eShop eShop eShop eShop 31A Whistle Notch arbor Form ADB 30 0450 SK 50 short – – – eShop – eShop – eShop eShop eShop 31A Dimension A (30 0430) mm 50 50 50 50 50 63 63 63 100 100 Dimension A (30 0450) mm – – – 63 – 63 – 63 80 100 ⌀ D mm 25 28 35 42 44 48 50 52 65 72 Spare clamping screw No. 30 9900 6 8 10 12 12 16 16 20 25 32 Performance milling chuck 30 GARANT milling chucks (precision version) ensure the following advantages: ■ No risk of the cutter being pulled out, not even when jerked ■ Optimised external contour → vibration-damping behaviour. Contact piece on the Spring in the base body ■ Thread self-locking, even when subjected to micro-vibrations. tightening screw holds the presses the milling cutter or HB ■ Pleasant handling thanks to the differential thread. milling cutter in the shank into the correct position. HB face. ■ Nasty surprises in the form of shank breakages are virtually fully excluded. 965
