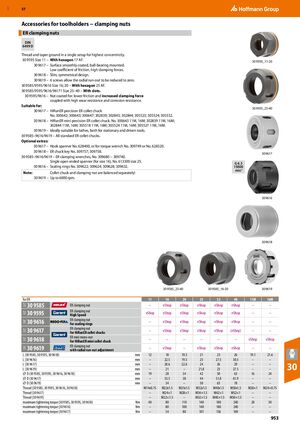

GBP 57 ​Accessories for toolholders − clamping nuts ER clamping nuts ​ DIN 6499 D Thread and taper ground in a single setup for highest concentricity. 30 9595 Size 11 – With hexagon 17 AF. 30 9595_11-20 30 9617 – Surface smoothly coated, ball-bearing mounted. Low coefficient of friction, high clamping forces. 30 9618 – Slim, symmetrical design. 30 9619 – 6 screws allow the radial run-out to be reduced to zero. 30 9585/9595/9616 Size 16; 20 – With hexagon 25 AF. 30 9585/9595/9616/96171 Size 25–40 – With slots. 30 9595/9616 – Nut coated for: lower friction and increased clamping force coupled with high wear resistance and corrosion resistance. Suitable for: 30 9595_25-40 30 9617 – HiRunER precision ER collet chuck No. 300642; 300643; 300647; 302839; 302843; 302844; 305523; 305524; 305532. 30 9618 – HiRunER mini precision ER collet chuck. No. 300643 11M, 16M; 302839 11M, 16M; 302844 11M, 16M; 305518 11M, 16M; 305524 11M, 16M; 305527 11M, 16M. 30 9619 – Ideally suitable for lathes, both for stationary and driven tools. 30 9585–9616/9619 – All standard ER collet chucks. Optional extras: 30 9617 – Hook spanner No. 628400, or for torque wrench No. 309749 or No. 628520. 30 9618 – ER chuck key No. 309757; 309758. 30 9617 30 9585–9616/9619 – ER clamping wrenches, No. 309680 − 309740. Single open ended spanner (for size 16), No. 613300 size 25. G 6.3 30 9616 – Sealing rings No. 309622; 309624; 309628; 309632. 15000 min-1 Note: Collet chuck and clamping nut are balanced separately! 30 9619 – Up to 6000 rpm. 30 9616 30 9618 30 9585_25-40 30 9585_16-20 30 9619 for ER 11 16 20 25 32 40 11M 16M 30 9585 ER clamping nut – eShop eShop eShop eShop eShop – – 32Z ER clamping nut 30 9595 eShop eShop eShop eShop eShop eShop – – 31Z High Speed ER clamping nut 30 9616 – eShop eShop eShop eShop eShop – – 39Z for sealing rings ER clamping nut 30 9617 – eShop eShop eShop eShop (eShop) – – 31Z for HiRunER collet chucks ER mini mono-nut 30 9618 – – – – – – eShop eShop 31Z for HiRunER mini collet chuck ER clamping nut 30 9619 – eShop – eShop eShop eShop – – 33E with radial run-out adjustment L (30 9585, 30 9595, 30 9618) mm 12 18 19.5 21 23 26 19.1 21.6 L (30 9616) mm – 22.5 19.5 25 27.5 30.5 – – L (30 9617) L (30 9619) ⌀ D (30 9585, 30 9595, 30 9616, 30 9618) mm mm mm – – 19 20.6 21 28 22.6 – 34 24 21.8 42 26 23 50 29 27.5 63 – – 16 – – 24 30 ⌀ D (30 9617) mm – 33.5 38 44 51.8 61.9 – – ⌀ D (30 9619) mm – 34 – 50 63 78 – – Thread (30 9585, 30 9595, 30 9616, 30 9618) M14x0.75 M22x1.5 M25x1.5 M32x1.5 M40x1.5 M50x1.5 M20×1 M24×0.75 Thread (30 9617) – M24×1 M28×1 M34×1.5 M42×1 M52×1 – – Thread (30 9619) – M22×1.5 – M32×1.5 M40×1.5 M50×1.5 – – maximum tightening torque (30 9585, 30 9595, 30 9618) Nm 40 80 110 140 180 240 20 30 maximum tightening torque (30 9616) Nm – 80 100 140 180 240 – – maximum tightening torque (30 9617) Nm – 54 80 101 136 169 – – 953
