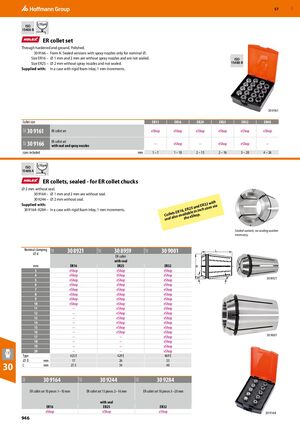

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 946

GBP 57 ≤10µm ISO 15488-B ER collet set Through hardened and ground. Polished. 30 9166 – Form A. Sealed versions with spray nozzles only for nominal ⌀. Size ER16 – ⌀ 1 mm and 2 mm are without spray nozzles and are not sealed. ISO Size ER25 – ⌀ 2 mm without spray nozzles and not sealed. 15488-B Supplied with: In a case with rigid foam inlay, 1 mm increments. 30 9161 Collet size ER11 ER16 ER20 ER25 ER32 ER40 30 9161 ER collet set eShop eShop eShop eShop eShop eShop 32Z ER collet set 30 9166 – eShop – eShop eShop – 32Z with seal and spray nozzles sizes included mm 1–7 1 – 10 2 – 13 2 – 16 3 – 20 4 – 26 ≤10µm ISO 15488-A ER collets, sealed - for ER collet chucks ⌀ 2 mm without seal. 30 9164 – ⌀ 1 mm and 2 mm are without seal. 30 9244 – ⌀ 2 mm without seal. h Supplied with: 2 wit 5 a n d ER3izes via 2 s 30 9164–9284 – In a case with rigid foam inlay, 1 mm increments. 6, ER le in inch ts ER1 b Colle lso availa eShop. seal a the Sealed variant, no sealing washer necessary. Nominal clamping 30 8921 30 8959 30 9001 32Z 32Z 32Z ⌀d ER collet with seal mm ER16 ER25 ER32 3 eShop eShop eShop 4 eShop eShop eShop 30 8921 5 eShop eShop eShop 6 eShop eShop eShop 7 eShop eShop eShop 8 eShop eShop eShop 9 eShop eShop eShop 10 eShop eShop eShop 11 – eShop eShop 12 – eShop eShop 13 – eShop eShop 14 – eShop eShop 15 – eShop eShop 16 – eShop eShop 30 9001 17 – – eShop 18 – – eShop 19 – – eShop 20 – – eShop Type 425 E 429 E 469 E ⌀ D mm 17 26 33 30 L mm 27.5 34 40 30 9164 30 9244 30 9284 32Z 32Z 32Z ER collet set 10 pieces 1−10 mm ER collet set 15 pieces 2−16 mm ER collet set 18 pieces 3−20 mm with seal ER16 ER25 ER32 eShop eShop eShop 30 9164 946
