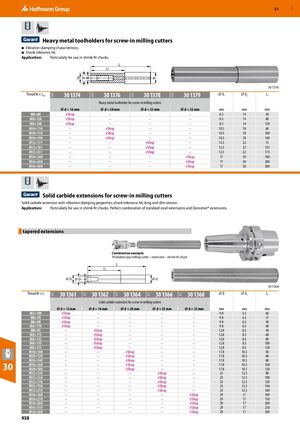

GBP 57 Heavy metal toolholders for screw-in milling cutters ■ Vibration-damping characteristics. ■ Shank tolerance h6. Application: Particularly for use in shrink-fit chucks. 30 1376 Thread M × Ltot 30 1374 30 1376 30 1378 30 1379 ⌀ D1 ⌀ D2 L1 31A 31A 31A 31A Heavy metal toolholder for screw-in milling cutters ⌀ d = 16 mm ⌀ d = 20 mm ⌀ d = 25 mm ⌀ d = 32 mm mm mm mm M8×88 eShop – – – 8.5 14 40 M8×128 eShop – – – 8.5 14 80 M8×168 eShop – – – 8.5 14 120 M10×110 – eShop – – 10.5 18 60 M10×150 – eShop – – 10.5 18 100 M10×190 – eShop – – 10.5 18 140 M12×131 – – eShop – 12.5 22 75 M12×181 – – eShop – 12.5 22 125 M12×231 – – eShop – 12.5 22 175 M16×160 – – – eShop 17 30 100 M16×260 – – – eShop 17 30 200 M16×360 – – – eShop 17 30 300 Solid carbide extensions for screw-in milling cutters Solid carbide extension with vibration-damping properties, shank tolerance h6, long and slim version. Application: Particularly for use in shrink-fit chucks. Perfect combination of standard steel extensions and Densimet® extensions. tapered extensions ​ Combination example: Threaded copy milling cutter – extension – shrink-fit chuck L L1 ⌀ D ⌀ D1 M ⌀d 30 1364 Thread M × L 30 1361 30 1362 30 1364 30 1366 30 1368 ⌀D ⌀ D1 L1 31Z 31Z 31Z 31Z 31Z Solid carbide extension for screw-in milling cutters ⌀ d = 12 mm ⌀ d = 16 mm ⌀ d = 20 mm ⌀ d = 25 mm ⌀ d = 32 mm mm mm mm M5×100 eShop – – – – 9.8 5.5 60 M6×70 eShop – – – – 9.8 6.5 21 M6×90 eShop – – – – 9.8 6.5 40 M6×110 eShop – – – – 9.8 6.5 60 M8×95 – eShop – – – 12.8 8.5 40 M8×115 – eShop – – – 12.8 8.5 60 M8×135 – eShop – – – 12.8 8.5 80 M8×155 – eShop – – – 12.8 8.5 100 M8×175 – eShop – – – 12.8 8.5 120 M10×100 – – eShop – – 17.8 10.5 40 M10×120 – – eShop – – 17.8 10.5 60 M10×140 – – eShop – – 17.8 10.5 80 30 M10×160 M10×180 M12×136 – – – – – – eShop eShop – – – eShop – – – 17.8 17.8 23 10.5 10.5 12.5 100 120 80 M12×156 – – – eShop – 23 12.5 100 M12×176 – – – eShop – 23 12.5 120 M12×196 – – – eShop – 23 12.5 140 M12×216 – – – eShop – 23 12.5 160 M16×160 – – – – eShop 29 17 100 M16×210 – – – – eShop 29 17 150 M16×260 – – – – eShop 29 17 200 M16×310 – – – – eShop 29 17 250 M16×360 – – – – eShop 29 17 300 938
