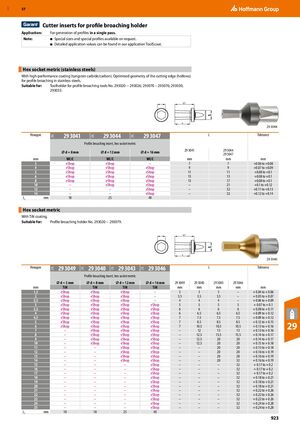

GBP 57 ​ Cutter inserts for profile broaching holder Application: For generation of profiles in a single pass. Note: ■ Special sizes and special profiles available on request. ■ Detailed application values can be found in our application ToolScout. Hex socket metric (stainless steels) ​ With high-performance coating (tungsten carbide/carbon). Optimised geometry of the cutting edge (hollows) for profile broaching in stainless steels. Suitable for: Toolholder for profile broaching tools No. 293020 − 293026; 293070 – 293076; 293030; 293033. 29 3044 Hexagon 29 3041 29 3044 29 3047 L Tolerance 29L 29L 29L Profile broaching insert, hex socket metric 29 3041 29 3044 ​ ⌀ d = 8 mm ⌀ d = 12 mm ⌀ d = 16 mm 29 3047 mm WC/C WC/C WC/C mm mm mm 3 eShop eShop – 7 7 +0.06 to +0.08 4 eShop eShop eShop 9 9 +0.07 to +0.09 5 eShop eShop eShop 11 11 +0.08 to +0.1 6 eShop eShop eShop 13 13 +0.08 to +0.1 8 eShop eShop eShop 13 17 +0.08 to +0.1 10 – eShop eShop – 21 +0.1 to +0.12 12 – – eShop – 32 +0.11 to +0.13 14 – – eShop – 32 +0.12 to +0.14 L1 mm 18 25 40 ​ ​ ​ Hex socket metric ​ With TiN coating. Suitable for: Profile broaching holder No. 293020 − 293079. 29 3040 Hexagon 29 3049 29 3040 29 3043 29 3046 L Tolerance 29L 29L 29L 29L Profile broaching insert, hex socket metric ⌀ d = 5 mm ⌀ d = 8 mm ⌀ d = 12 mm ⌀ d = 16 mm 29 3049 29 3040 29 3043 29 3046 ​ mm TiN TiN TiN TiN mm mm mm mm mm 1,5 eShop eShop eShop – 3 3 3 – + 0.04 to + 0.06 2 eShop eShop eShop – 3.5 3.5 3.5 – + 0.05 to + 0.07 2,5 eShop eShop eShop – 4 4 4 – + 0.06 to + 0.09 3 eShop eShop eShop eShop 5 5 5 5 + 0.07 to + 0.1 3,5 eShop eShop eShop eShop 6 6 6 6 + 0.08 to + 0.11 4 eShop eShop eShop eShop 6 6.5 6.5 6.5 + 0.09 to + 0.12 4,5 eShop eShop eShop eShop 7 7.5 7.5 7.5 + 0.09 to + 0.12 5 eShop eShop eShop eShop 7 8.5 8.5 8.5 + 0.12 to + 0.15 6 7 eShop – eShop eShop eShop eShop eShop eShop 7 – 10.5 12 10.5 13 10.5 13 + 0.13 to + 0.16 + 0.13 to + 0.16 29 8 – eShop eShop eShop – 12.5 15.5 15.5 + 0.14 to + 0.17 9 – eShop eShop eShop – 12.5 20 20 + 0.14 to + 0.17 10 – eShop eShop eShop – 12.5 20 20 + 0.15 to + 0.18 11 – – eShop eShop – – 20 20 + 0.15 to + 0.18 12 – – eShop eShop – – 20 20 + 0.16 to + 0.19 13 – – eShop eShop – – 20 28 + 0.16 to + 0.19 14 – – eShop eShop – – 20 32 + 0.16 to + 0.19 15 – – – eShop – – – 32 + 0.17 to + 0.2 16 – – – eShop – – – 32 + 0.17 to + 0.2 17 – – – eShop – – – 32 + 0.17 to + 0.2 18 – – – eShop – – – 32 + 0.18 to + 0.21 19 – – – eShop – – – 32 + 0.18 to + 0.21 20 – – – eShop – – – 32 + 0.18 to + 0.21 21 – – – eShop – – – 32 + 0.22 to + 0.26 22 – – – eShop – – – 32 + 0.22 to + 0.26 23 – – – eShop – – – 32 + 0.22 to + 0.26 24 – – – eShop – – – 32 + 0.24 to + 0.28 25 – – – eShop – – – 32 + 0.24 to + 0.28 L1 mm 10 18 25 40 ​ ​ ​ ​ ​ 923
