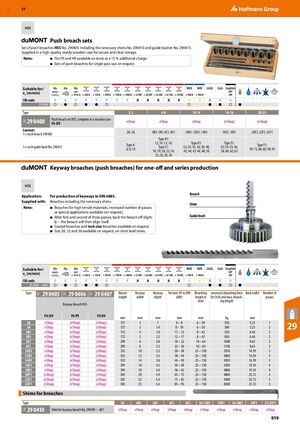

GBP 57 HSS Push broach sets Set of push broaches HSS No. 290405 including the necessary shims No. 290410 and guide bushes No. 290415. Supplied in a high-quality sturdy wooden case for secure and clear storage. Note: ■ Fits P9 and H9 available ex stock at a 15 % additional charge. ■ Sets of push broaches for single pass use on request. Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M K N N ​ ​ ​ ​ ​ 29 0400 ○ ● ○ ● ● ○ ○ ● ● ○ ● Type 2-3 4-8 10-14 16-18 20-25 Push broach set HSS, complete in a wooden case 29 0400 eShop eShop eShop (eShop) (eShop) 29J Fit JS9 Content: 2A; 3A 4B1; 5B1; 6C1; 8C1 10D1; 12D1; 14D1 16E1; 18E1 20F1; 22F1; 25F1 1× each broach 290405 Type B1: 12; 14; 15; 16; Type D1: Type E1: Type A: Type F1: 1× each guide bush No. 290415 Type C1: 32; 34; 35; 36; 38; 40; 52; 54; 55; 56; 6; 8; 10 70; 75; 80; 85; 90; 95 18; 19; 20; 22; 24; 42; 44; 45; 46; 48; 50 58; 60; 62; 65 25; 26; 28; 30 ​ Keyway broaches (push broaches) for one-off and series production HSS Broach Application: For production of keyways to DIN 6885. Supplied with: Broaches including the necessary shims. Shim Note: ■ Broaches for high tensile materials, increased number of passes or special applications available (on request). ■ After first and second of three passes, back the broach off slight- Guide bush ly − the broach will then align itself. ■ Coated broaches and inch size broaches available on request. ■ Size 28, 32 and 36 available on request, on short lead times. Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M K N N ​ ​ ​ ​ ​ 29 0405 – 0407 ○ ● ○ ● ● ○ ○ ● ● ○ ● Type 29 0405 29 0406 29 0407 Broach Keyway Keyway for bore ⌀ to DIN Broaching necessary broaching force Back width Number of 29J 29J 29J length width depth 6885 length in for St50 and max. broach- passes steel ing length Keyway broach HSS Fit JS9 Fit P9 Fit H9 mm mm mm mm mm kg mm ​ 2A eShop (eShop) (eShop) 127 2 1 6–8 6 – 30 350 3.25 1 3A 4B1 eShop eShop (eShop) (eShop) (eShop) (eShop) 127 172 3 4 1.4 1.8 8 – 10 11 – 12 6 – 30 8 – 42 300 550 3.25 6.46 2 2 29 5B1 eShop (eShop) (eShop) 172 5 2.3 12 – 17 8 – 42 850 6.46 2 6C1 eShop (eShop) (eShop) 299 6 2.8 18 – 22 10 – 64 1000 9.63 2 8C1 eShop (eShop) (eShop) 299 8 3.3 22 – 30 10 – 64 1700 9.63 3 10D1 eShop (eShop) (eShop) 353 10 3.3 30 – 38 25 – 150 2950 14.39 3 12D1 eShop (eShop) (eShop) 353 12 3.3 38 – 44 25 – 150 3800 14.39 3 14D1 eShop (eShop) (eShop) 353 14 3.8 44 – 50 25 – 150 5050 14.39 3 16E1 eShop (eShop) (eShop) 394 16 4.3 50 – 58 25 – 150 4300 19.34 4 18E1 eShop (eShop) (eShop) 394 18 4.4 58 – 65 25 – 150 4800 19.34 4 20F1 (eShop) (eShop) (eShop) 505 20 4.9 65 – 75 25 – 150 4000 25.72 4 22F1 (eShop) (eShop) (eShop) 505 22 5.4 75 – 85 25 – 150 4300 25.72 5 25F1 (eShop) (eShop) (eShop) 505 25 5.4 85 – 95 25 – 150 8300 25.72 5 Shims for broaches Type 3A 4B1 5B1 6C1 8C1 10-12D1 14D1 16-18E1 20F1 22-25F1 29 0410 Shim for keyway broach No. 290405 − 407 eShop eShop eShop eShop eShop eShop eShop eShop eShop eShop 29J 919
