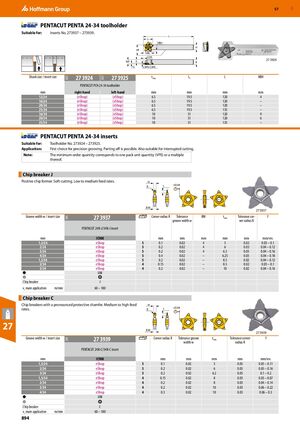

GBP 57 ​ PENTACUT PENTA 24-34 toolholder Suitable for: Inserts No. 273937 – 273939. L L1 HBH H HF HBL CDX WF f1 27 3924 B f2 CWN-CWX Shank size / insert size 27 3924 27 3925 tmax L1 L HBH 26D 26D PENTACUT PCH 24-34 toolholder mm right-hand left-hand mm mm mm mm 12/24 (eShop) (eShop) 6.5 19.5 120 4 16/24 (eShop) (eShop) 6.5 19.5 120 – 20/24 (eShop) (eShop) 6.5 19.5 120 – 25/24 (eShop) (eShop) 6.5 19.5 135 – 16/34 (eShop) (eShop) 10 31 120 9 20/34 (eShop) (eShop) 10 31 120 6 25/34 (eShop) (eShop) 10 31 135 – ​ PENTACUT PENTA 24-34 inserts Suitable for: Toolholder No. 273924 – 273925. Application: First choice for precision grooving. Parting off is possible. Also suitable for interrupted cutting. Note: The minimum order quantity corresponds to one pack unit quantity (VPE) or a multiple thereof. Chip breaker J ​ Positive chip former. Soft-cutting. Low to medium feed rates. w t ±0.04 R BW 27 3937 Groove width w / insert size 27 3937 Corner radius R Tolerance BW tmax Tolerance cor- f 26K groove width w ner radius R PENTACUT 24N-J/34N-J insert mm IC908 mm mm mm mm mm mm/rev. 1,5/24 eShop 5 0.1 0.02 4 5 0.02 0.03 – 0.1 2/24 eShop 5 0.2 0.02 4 6 0.03 0.04 – 0.12 3/24 eShop 5 0.2 0.02 4 6.5 0.03 0.04 – 0.16 4/24 eShop 5 0.4 0.02 – 6.25 0.03 0.04 – 0.18 1,5/34 eShop 5 0.2 0.02 – 8.5 0.02 0.04 – 0.12 2/34 eShop 4 0.15 0.02 – 8.5 0.02 0.03 – 0.1 3/34 eShop 4 0.2 0.02 – 10 0.02 0.04 – 0.16 UNI Chip breaker J ​ ​ ​ ​ ​ ​ ​ vc main application m/min 60 – 180 ​ ​ ​ ​ ​ ​ ​ Chip breaker C ​ Chip breakers with a pronounced protective chamfer. Medium to high feed w ±0.04 rates. R t 27 BW 27 3939 Groove width w / insert size 27 3939 Corner radius R Tolerance groove tmax Tolerance corner f 26K width w radius R PENTACUT 24N-C/34N-C insert mm IC908 mm mm mm mm mm/rev. 1,5/24 eShop 5 0.1 0.02 5 0.05 0.05 – 0.11 2/24 eShop 5 0.2 0.02 6 0.05 0.05 – 0.16 3/24 eShop 5 0.2 0.02 6.2 0.05 0.1 – 0.2 1,5/34 eShop 4 0.15 0.02 8 0.03 0.03 – 0.07 2/34 eShop 4 0.2 0.02 8 0.03 0.04 – 0.14 3/34 eShop 4 0.2 0.02 10 0.03 0.06 – 0.22 4/34 eShop 4 0.3 0.02 10 0.03 0.06 – 0.3 UNI Chip breaker C ​ ​ ​ ​ ​ ​ vc main application m/min 60 – 180 ​ ​ ​ ​ ​ ​ 894
