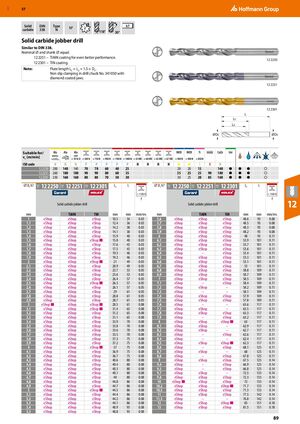

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 89

Предыдущая страница Следующая страница

Навигация

Твёрдосплавное спиральное сверло

Аналог DIN 338.

Номинальный диаметр и диаметр хвостовика равны.

12 2251 – покрытие TiAlN для ещё лучшей производительности.

12 2301 – покрытие TiN.

Примечание

  • Длина канала LC = L2 + 1,5 × DC
  • Нескользящее зажатие в сверлильном патроне № 341050 с алмазным покрытием губок

Применимо для / скорость резания [м/мин]

ISO код N P H M S K N
12 2250 200 140 140 70 70 60 40 25 20 20 15 140
12 2251 260 180 180 90 90 80 60 35 35 25 25 90 180
12 2301 230 160 160 80 80 70 50 30 30 25 20 85 160

Твёрдосплавное спиральное сверло (размеры 1–5,5 мм)

мм 12 2250 12 2251 12 2301 L2 L мм/об
1eShopeShopeShop10,5340,03
1,1eShopeShopeShop12,4360,03
1,2eShopeShopeShop14,2380,03
1,3eShopeShopeShop14,1380,03
1,4eShopeShopeShop15,9400,03
1,5eShopeShop ■eShop15,8400,03
1,6eShopeShopeShop17,6430,03
1,7eShopeShopeShop17,5430,03
1,8eShopeShopeShop19,3460,03
1,9eShopeShopeShop19,2460,03
2eShopeShop ■eShop21490,05
2,1eShopeShopeShop20,9490,05
2,2eShopeShopeShop23,7530,05
2,3eShopeShopeShop23,6530,05
2,4eShopeShopeShop26,4570,05
2,5eShopeShop ■eShop26,3570,05
2,6eShopeShopeShop26,1570,05
2,7eShopeShopeShop29610,05
2,8eShopeShopeShop28,8610,05
2,9eShopeShopeShop28,7610,05
3eShop ■eShop ■eShop28,5610,08
3,1eShopeShop ■eShop31,4650,08
3,2eShopeShopeShop31,2650,08
3,3eShopeShopeShop31,1650,08
3,4eShopeShopeShop33,9700,08
3,5eShopeShopeShop33,8700,08
3,6eShopeShopeShop33,6700,08
3,7eShopeShopeShop33,5700,08
3,8eShopeShopeShop37,3750,08
3,9eShopeShopeShop37,2750,08
4eShopeShop ■eShop37750,08
4,1eShopeShopeShop36,9750,08
4,2eShopeShopeShop36,7750,08
4,3eShopeShopeShop40,6800,08
4,4eShopeShopeShop40,4800,08
4,5eShopeShopeShop40,3800,08
4,6eShopeShopeShop40,1800,08
4,7eShopeShopeShop40800,08
4,8eShopeShopeShop44,8860,08
4,9eShopeShopeShop44,7860,08
5eShopeShop ■eShop44,5860,08
5,1eShopeShopeShop44,4860,08
5,2eShopeShopeShop44,2860,08
5,3eShopeShopeShop44,1860,08
5,4eShopeShopeShop48,9930,08
5,5eShopeShopeShop48,8930,08

Твёрдосплавное спиральное сверло (размеры 5,6–13 мм)

мм 12 2250 12 2251 12 2301 L2 L мм/об
5,6eShopeShopeShop48,6930,08
5,7eShopeShopeShop48,5930,08
5,8eShopeShopeShop48,3930,08
5,9eShopeShopeShop48,2930,08
6eShopeShopeShop48930,11
6,1eShopeShopeShop53,91010,11
6,2eShopeShopeShop53,71010,11
6,3eShopeShopeShop53,61010,11
6,4eShop–eShop53,41010,11
6,5eShopeShopeShop53,31010,11
6,6eShopeShopeShop53,11010,11
6,7eShopeShopeShop531010,11
6,8eShopeShopeShop58,81090,11
6,9eShopeShopeShop58,71090,11
7eShopeShopeShop58,51090,11
7,1eShop–eShop58,41090,11
7,2eShopeShop–58,21090,11
7,3eShop––58,11090,11
7,4eShopeShopeShop57,91090,11
7,5eShopeShopeShop57,81090,11
7,6eShop––63,61170,11
7,7eShopeShop–63,51170,11
7,8eShopeShopeShop63,31170,11
7,9eShop–eShop63,21170,11
8eShopeShopeShop ■631170,11
8,1eShopeShop–62,91170,11
8,2eShopeShop–62,71170,11
8,3eShop–eShop62,61170,11
8,4eShop––62,41170,11
8,5eShopeShopeShop ■62,31170,11
8,6eShop–eShop68,11250,11
8,7eShopeShop–681250,11
8,8eShop–eShop67,81250,11
9eShopeShopeShop67,51250,14
9,4eShop–eShop66,91250,14
9,5eShop–eShop66,81250,14
9,7eShopeShop–72,51330,14
9,8eShopeShopeShop72,31330,14
10eShop ■eShopeShop721330,14
10,2eShopeShopeShop ■71,71330,14
10,5eShopeShopeShop71,31330,14
11eShopeShopeShop77,51420,14
11,5eShop––76,81420,14
12eShopeShopeShop ■831510,18
13eShopeShopeShop81,51510,18
