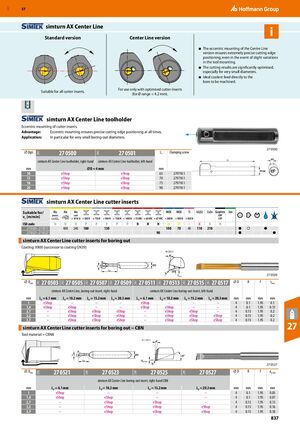

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 837

simturn AX Center Line

Standard version

Suitable for all cutter inserts.

Center Line version

For use only with optimised cutter inserts (for Ø range < 4.2 mm).

• The eccentric mounting of the Centre Line version ensures extremely precise cutting edge positioning, even in the event of slight variations in the tool mounting.
• The cutting results are significantly optimised, especially for very small diameters.
• Ideal coolant feed directly to the bore to be machined.

simturn AX Center Line toolholder

Eccentric mounting of cutter inserts.

Advantage: Eccentric mounting ensures precise cutting edge positioning at all times.

Application: In particular for very small boring-out diameters.

27 0500 27 0501 27 0500

• Dg6 L Clamping screw

1 simturn AX Center Line toolholder, right-hand simturn AX Center Line toolholder, left-hand

simturn AX Center Line cutter inserts

Suitable for/ v [m/min] c

simturn AX Center Line cutter inserts for boring out

Coating: X800 (successor to coating GN39)

27 0509 max

• D 27 0503 27 0505 27 0507 27 0509 27 0511 27 0513 27 0515 27 0517
• D R f t

min max simturn AX Center Line, boring-out insert, right-hand simturn AX Center Line boring-out insert, left-hand

simturn AX Center Line cutter inserts for boring out − CBN

Tool material = CBN8 A ( 10:1 )

a p max 27 0527

• D 27 0521 27 0523 27 0525 27 0527
• D R f a

min p max simturn AX Center Line boring-out insert, right-hand CBN
