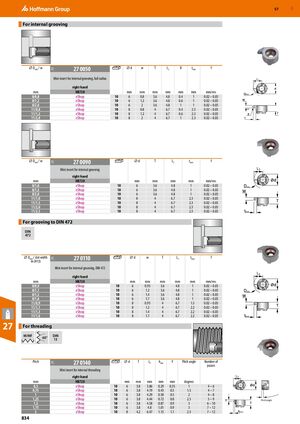

For internal grooving
- D / w 27 0050
- d w T L R t f
min 3 max
Mini insert for internal grooving, full radius L 3 right-hand
| mm | HB720 | mm | mm | mm | mm | mm | mm | mm/rev. | ||
| 8/0,8 | eShop | 10 | 6 | 0.8 | 3.6 | 4.8 | 0.4 | 1 | 0.02 – 0.03 | min |
| 8/1,2 | eShop | 10 | 6 | 1.2 | 3.6 | 4.8 | 0.6 | 1 | 0.02 – 0.03 | |
| 8/2,0 | eShop | 10 | 6 | 2 | 3.6 | 4.8 | 1 | 1 | 0.02 – 0.03 | |
| 11/0,8 | eShop | 10 | 8 | 0.8 | 4 | 6.7 | 0.4 | 2.3 | 0.02 – 0.03 | max |
| 11/1,2 | eShop | 10 | 8 | 1.2 | 4 | 6.7 | 0.6 | 2.3 | 0.02 – 0.03 | |
| 11/2,0 | eShop | 10 | 8 | 2 | 4 | 6.7 | 1 | 2.3 | 0.02 – 0.03 |
- D / w 27 0090
- d T L t f
min 3 max
Mini insert for internal grooving L 3 right-hand
| mm | HB720 | mm | mm | mm | mm | mm/rev. | |
| 8/1,0 | eShop | 10 | 6 | 3.6 | 4.8 | 1 | 0.02 – 0.03 |
8/1,5 min
| eShop | 10 | 6 | 3.6 | 4.8 | 1 | 0.02 – 0.03 | |
| 8/2,0 | eShop | 10 | 6 | 3.6 | 4.8 | 1 | 0.02 – 0.03 |
| 11/1,0 | eShop | 10 | 8 | 4 | 6.7 | 2.3 | 0.02 – 0.03 |
| 11/1,5 | eShop | 10 | 8 | 4 | 6.7 | 2.3 | 0.02 – 0.03 |
| 11/2,0 | eShop | 10 | 8 | 4 | 6.7 | 2.3 | 0.02 – 0.03 |
| 11/2,5 | eShop | 10 | 8 | 4 | 6.7 | 2.3 | 0.02 – 0.03 |
max
For grooving to DIN 472
DIN 472
- D / slot width 27 0110
- d w T L t f
minm (H13) 3 max
Mini insert for internal grooving, DIN 472 L right-hand 3
| mm | HB720 | mm | mm | mm | mm | mm | mm/rev. | |
| 8/0,9 | eShop | 10 | 6 | 0.93 | 3.6 | 4.8 | 1 | 0.02 – 0.03 |
| 8/1,1 | eShop | 10 | 6 | 1.2 | 3.6 | 4.8 | 1 | 0.02 – 0.03 |
| 8/1,3 | 10 | min | ||||||
| eShop | 6 | 1.4 | 3.6 | 4.8 | 1 | 0.02 – 0.03 | ||
| 8/1,6 | eShop | 10 | 6 | 1.7 | 3.6 | 4.8 | 1 | 0.02 – 0.03 |
| 11/0,9 | eShop | 10 | 8 | 0.93 | 4 | 6.7 | 1.5 | 0.02 – 0.03 |
| 11/1,1 | eShop | 10 | 8 | 1.2 | 4 | 6.7 | 2.2 | 0.02 – 0.03 |
| 11/1,3 | eShop | 10 | 8 | 1.4 | 4 | 6.7 | 2.2 | 0.02 – 0.03 |
| 11/1,6 | eShop | 10 | 8 | 1.7 | 4 | 6.7 | 2.2 | 0.02 – 0.03 |
max
27
For threading
M/MF 60° DIN
13
| Pitch | 27 0140 | d | T | L | h | Y | Pitch angle | Number of |
| 3 | min | passes |
Mini insert for internal threading right-hand L 3
| mm | HB720 | mm | mm | mm | mm | mm | degrees | ||
| 0,5 | eShop | 10 | 6 | 3.8 | 3.86 | 0.29 | 0.35 | 1 | 4 – 6 |
| 0,75 | eShop | 10 | 6 | 3.8 | 4.19 | 0.43 | 0.5 | 1.5 | 4 – 7 |
| 1 | eShop | 10 | 6 | 3.8 | 4.29 | 0.58 | 0.5 | 2 | 4 – 8 |
| 1,25 | eShop | 10 | 6 | 3.8 | 4.44 | 0.72 | 0.8 | 2.5 | 5 – 9 |
1,5 Pitch angle
| eShop | 10 | 6 | 3.8 | 4.58 | 0.87 | 0.9 | 3 | 6 – 10 | |
| 1,75 | eShop | 10 | 6 | 3.8 | 4.8 | 1.01 | 0.9 | 3 | 7 – 12 |
| 2 | eShop | 10 | 8 | 4.2 | 6.47 | 1.15 | 1.1 | 2.5 | 7 – 12 |
