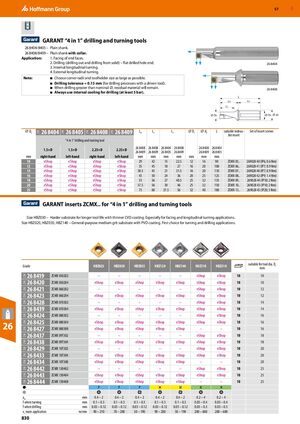

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 830

Предыдущая страница Следующая страница

Навигация

GARANT “4 in 1” drilling and turning tools

26 8404/8405 – Plain shank. 26 8408/8409 – Plain shank with collar.

Application: 1. Facing of end faces. 2. Drilling (drilling out and drilling from solid) – flat drilled hole end. 26 8404 3. Internal longitudinal turning. 4. External longitudinal turning.

Note: Choose corner radii and toolholder size as large as possible.

  • Drilling tolerance + 0.15 mm (for drilling processes with a driven tool).
  • When drilling greater than nominal ⌀, residual material will remain. 26 8408
  • Always use internal cooling for drilling (at least 5 bar).

L LA LS L1 ⌀ D ⌀ D S ⌀ d 2 C

⌀ D26 840426 840526 840826 8409LLL⌀ D⌀ dLsuitable indexa-Set of insert screws
CAs1s2ble insert

“4 in 1” drilling and turning tool

1.5×D1.5×D2.25×D2.25×D26 840826 840826 840426 840826 840826 8404
26 840926 840926 840526 840926 840926 8405
mmright-handleft-handright-handleft-handmmmmmmmmmmmmmm
10eShopeShopeShopeShop29421522.5121690ZCMX 05..269028 40 (IP6; 0.6 Nm)
12eShopeShopeShopeShop354518271620100ZCMX 06..269028 41 (IP7; 0.9 Nm)
14eShopeShopeShopeShop38.5452131.51620110ZCMX 07..269028 48 (IP7; 0.9 Nm)
16eShopeShopeShopeShop435024362025125ZCMX 08..269028 42 (IP9; 1.4 Nm)
18eShopeShopeShopeShop53562740.52532135ZCMX 09..269028 44 (IP10; 2 Nm)
20eShopeShopeShopeShop57.55630462532150ZCMX 10..269028 43 (IP10; 2 Nm)
25eShopeShopeShopeShop736037.5563240180ZCMX 13..269028 45 (IP20; 5 Nm)

GARANT inserts ZCMX.. for “4 in 1” drilling and turning tools

Size HBZ030 – Harder substrate for longer tool life with thinner CVD coating. Especially for facing and longitudinal turning applications. Size HBZ025; HBZ035; HBZ140 – General-purpose medium grit substrate with PVD coating. First choice for turning and drilling applications.

suitable for tool dia. D

Grade HBZ025 HBZ030 HBZ035 HBZ120 HBZ140 HUZ310 HBZ310 c

mm

26 8419ZCMX 050202–––––eShopeShop1010
26 8420ZCMX 050204eShopeShopeShopeShopeShopeShopeShop1010
26 8421ZCMX 060202–––––eShopeShop1012
26 8423ZCMX 060204eShopeShopeShopeShopeShopeShopeShop1012
26 8428ZCMX 070302–––––eShopeShop1014
26 8439ZCMX 070304eShopeShopeShopeShopeShopeShopeShop1014
26 8424ZCMX 080302–––––eShopeShop1016
26 26 8425ZCMX 080304eShopeShopeShopeShopeShopeShopeShop1016
26 8427ZCMX 080308eShopeShopeShopeShopeShop––1016
26 8437ZCMX 09T302–––––eShopeShop1018
26 8438ZCMX 09T304eShopeShopeShopeShopeShopeShopeShop1018
26 8429ZCMX 10T302–––––eShopeShop1020
26 8433ZCMX 10T304eShopeShopeShopeShopeShopeShopeShop1020
26 8434ZCMX 10T308eShopeShopeShopeShopeShop––1020
26 8442ZCMX 130402–––––eShopeShop1025
26 8443ZCMX 130404eShopeShopeShopeShopeShopeShopeShop1025
26 8444ZCMX 130408eShopeShopeShopeShopeShop––1025
PPPMMNN
f when turningmm0.1 – 0.30.1 – 0.30.1 – 0.30.1 – 0.30.1 – 0.30.05 – 0.40.05 – 0.4
f when drillingmm0.03 – 0.120.03 – 0.120.03 – 0.120.03 – 0.120.03 – 0.120.03 – 0.30.03 – 0.3
