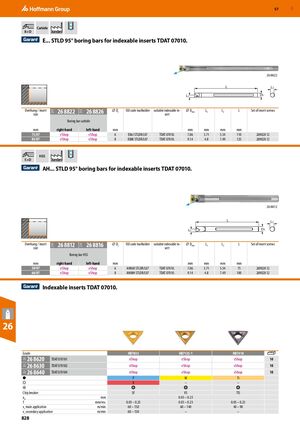

E... STLD 95° boring bars for indexable inserts TDAT 07010.
26 8822
L L 2 L Ds
Overhang / insert 26 8822 26 8826 ⌀ D ISO code toolholder suitable indexable in- ⌀ D L L L Set of insert screws
size s sert min 3 2
Boring bar carbide
| mm | right-hand | left-hand | mm | mm | mm | mm | mm | |||
| 75/07 | eShop | eShop | 6 | E06J STLDR/L07 | TDAT 07010. | 7.06 | 3.71 | 5.54 | 110 | 269028 12 |
| 85/07 | eShop | eShop | 8 | E08K STLDR/L07 | TDAT 07010. | 9.14 | 4.8 | 7.49 | 125 | 269028 12 |
HSS 5×D Standard AH... STLD 95° boring bars for indexable inserts TDAT 07010.
26 8812
L L 2 L Ds
Overhang / insert 26 8812 26 8816 ⌀ D ISO code toolholder suitable indexable in- ⌀ D L L L Set of insert screws
size s sert min 3 2
Boring bar HSS
| mm | right-hand | left-hand | mm | mm | mm | mm | mm | |||
| 50/07 | eShop | eShop | 6 | AH06X STLDR/L07 | TDAT 07010. | 7.06 | 3.71 | 5.54 | 75 | 269028 12 |
| 66/07 | eShop | eShop | 8 | AH08H STLDR/L07 | TDAT 07010. | 9.14 | 4.8 | 7.49 | 100 | 269028 12 |
Indexable inserts TDAT 07010.
26
| Grade | HB7035 | HB7125-1 | HB7410 | |||
| 26 8620 | TDAT 070101 | eShop | eShop | eShop | 10 | |
| 26 8630 | TDAT 070102 | eShop | eShop | eShop | 10 | |
| 26 8640 | TDAT 070104 | eShop | eShop | eShop | 10 |
| P | M | Ti | |
| K | – | – | |
| Chip breaker | SF | VS | TIS |
| f | mm/rev. | 0.03 – 0.25 | 0.05 – 0.23 | 0.05 – 0.23 | ||
| v secondary application | m/min | 60 – 150 | – | – |
