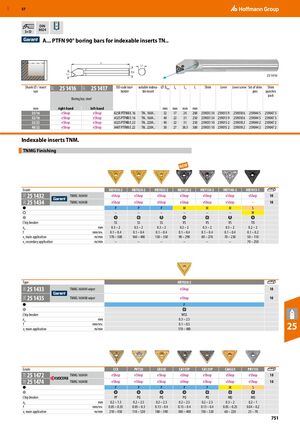

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 751

GBP 57 DIN 8024 3×D A... PTFN 90° boring bars for indexable inserts TN.. L L2 Ds L ​ 25 1416 Shank ⌀ / insert 25 1416 25 1417 ISO code tool- suitable indexa- ⌀ Dmin L3 L2 L Shim Lever Lever screw Set of shim Shim 21T 21T size holder ble insert pins punches pack Boring bar, steel mm right-hand left-hand ​ ​ mm mm mm mm ​ ​ ​ ​ ​ 25/16 eShop eShop A25R PTFNR/L 16 TN.. 1604.. 32 17 24 200 259031 34 259015 9 259018 6 259044 5 259047 3 32/16 eShop eShop A32S PTFNR/L 16 TN.. 1604.. 40 22 31 250 259031 34 259015 9 259018 6 259044 5 259047 3 32/22 eShop eShop A32S PTFNR/L 22 TN.. 2204.. 40 22 31 250 259031 10 259015 2 259018 2 259044 2 259047 2 40/22 eShop eShop A40T PTFNR/L 22 TN.. 2204.. 50 27 38.5 300 259031 10 259015 2 259018 2 259044 2 259047 2 ​Indexable inserts TNM. TNMG Finishing ​ NEW Grade HB7010-2 HB7020-2 HB7035-2 HB7120-2 HB7130-2 HB7140-2 HB7415-1 25 1432 TNMG 160404 eShop eShop eShop eShop eShop eShop eShop 10 21G 21G 25 1434 TNMG 160408 eShop eShop eShop eShop eShop eShop – 10 P P P M M M S ​ – – – – – – M ​ ​ ​ ​ ​ ​ ​ ​ ​ Chip breaker SS SS SS VS VS VS TIS ​ ap mm 0.3 – 2 0.3 – 2 0.3 – 2 0.3 – 2 0.3 – 2 0.3 – 2 0.2 – 2 ​ f mm/rev. 0.1 – 0.4 0.1 – 0.4 0.1 – 0.4 0.1 – 0.4 0.1 – 0.4 0.1 – 0.4 0.1 – 0.2 ​ vc main application m/min 170 – 500 160 – 400 150 – 350 90 – 290 80 – 270 70 – 230 50 – 110 ​ vc secondary application m/min – – – – – – 70 – 250 ​ Type HB7020-2 25 1433 TNMG 160404 wiper eShop 10 21G 25 1435 TNMG 160408 wiper eShop 10 21G P ​ ​ ​ Chip breaker WSS ​ ap mm 0.3 – 2.5 ​ f vc main application mm/rev. m/min 0.1 – 0.5 170 – 480 ​ ​ 25 Grade CCX PV720 CA510 CA115P CA125P CA6525 PR115S 25 1472 TNMG 160404 eShop eShop eShop eShop eShop eShop eShop 10 25E 25E 25 1474 TNMG 160408 eShop eShop eShop eShop eShop eShop eShop 10 P P P P P M S ​ ​ ​ ​ ​ ​ ​ ​ ​ Chip breaker PP PQ PQ PQ PQ MQ MQ ​ ap mm 0.2 – 1.5 0.2 – 2.5 0.2 – 2.5 0.2 – 2.5 0.2 – 2.5 0.3 – 2 0.2 – 1 ​ f mm/rev. 0.05 – 0.35 0.05 – 0.3 0.13 – 0.4 0.13 – 0.4 0.13 – 0.4 0.05 – 0.25 0.04 – 0.2 ​ vc main application m/min 210 – 450 110 – 520 180 – 590 180 – 400 150 – 320 60 – 220 25 – 70 ​ 751
