Режущие и зажимные инструменты Hoffmann Group 2026 - страница 701

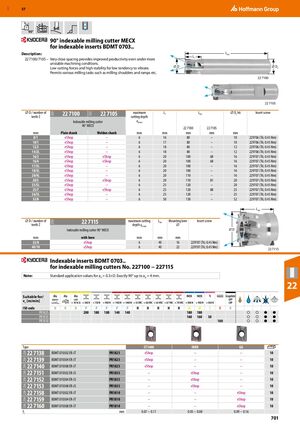

GBP 57 90° 90° indexable milling cutter MECX for indexable inserts BDMT 0703.. Description: Ltot L1 22 7100/7105 – Very close spacing provides improved productivity even under more unstable machining conditions. ⌀D ⌀ Ds Low cutting forces and high stability for low tendency to vibrate. Permits various milling tasks such as milling shoulders and ramps etc. 22 7100 22 7105 ⌀ D / number of 22 7100 22 7105 maximum L1 Ltot ⌀ Ds h6 Insert screw 25O 25O teeth Z cutting depth Indexable milling cutter ap max 90° MECX ​ 22 7100 22 7105 ​ ​ mm Plain shank Weldon shank mm mm mm mm mm ​ 8/1 eShop – 6 16 80 – 10 229706 (T6; 0.45 Nm) 10/1 eShop – 6 17 80 – 10 229706 (T6; 0.45 Nm) 12/2 eShop – 6 18 80 – 12 229706 (T6; 0.45 Nm) 14/2L eShop – 6 18 80 – 12 229706 (T6; 0.45 Nm) 16/3 eShop eShop 6 20 100 68 16 229707 (T6; 0.45 Nm) 16/4 eShop eShop 6 20 100 68 16 229707 (T6; 0.45 Nm) 17/3L eShop – 6 20 100 – 16 229707 (T6; 0.45 Nm) 18/3L eShop – 6 20 100 – 16 229707 (T6; 0.45 Nm) 20/4L eShop – 6 20 110 – 16 229707 (T6; 0.45 Nm) 20/5 eShop eShop 6 20 110 81 20 229707 (T6; 0.45 Nm) 25/5L eShop – 6 25 120 – 20 229707 (T6; 0.45 Nm) 25/7 eShop eShop 6 25 120 88 25 229707 (T6; 0.45 Nm) 26/5L eShop – 6 25 120 – 25 229707 (T6; 0.45 Nm) 32/8 eShop – 6 30 130 – 32 229707 (T6; 0.45 Nm) Ltot ⌀ D / number of 22 7115 maximum cutting Ltot Mounting bore Insert screw 25O teeth Z depth ap max ⌀ Indexable milling cutter 90° MECX ⌀D mm with bore mm mm mm ​ 32/8 eShop 6 40 16 229707 (T6; 0.45 Nm) 40/10 eShop 6 40 22 229707 (T6; 0.45 Nm) 22 7115 ​ Indexable inserts BDMT 0703.. for indexable milling cutters No. 227100 − 227115 Note: Standard application values for ae = 0.3×D. Exactly 90° up to ap = 4 mm. 22 Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M S K N ​ ​ ​ ​ ​ PR1825 200 180 180 140 140 180 180 ○ ○ ● ● PR1835 160 160 50 ○ ○ ● ● PR1810 180 ○ ○ ● ● Type ST1400 INOX GG 22 7138 BDMT 070302 ER-JT PR1825 eShop – – 10 25A 25A 25A 25A 25A 25A 25A 25A 25A 22 7139 BDMT 070304 ER-JT PR1825 eShop – – 10 22 7140 BDMT 070308 ER-JT PR1825 eShop – – 10 22 7151 BDMT 070302 ER-JS PR1835 – eShop – 10 22 7152 BDMT 070304 ER-JS PR1835 – eShop – 10 22 7153 BDMT 070308 ER-JS PR1835 – eShop – 10 22 7158 BDMT 070302 ER-JT PR1810 – – eShop 10 22 7159 BDMT 070304 ER-JT PR1810 – – eShop 10 22 7160 BDMT 070308 ER-JT PR1810 – – eShop 10 fz mm 0.07 − 0.11 0.05 − 0.08 0.09 − 0.16 ​ 701
