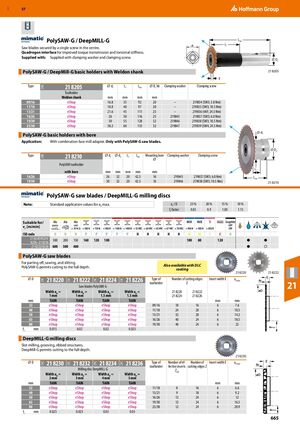

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 665

GBP 57 PolySAW-G / DeepMILL-G Ltot L1 Saw blades secured by a single screw in the centre. Quadrogon interface for improved torque transmission and torsional stiffness. Supplied with: Supplied with clamping washer and clamping screw. ⌀ Ds PolySAW-G / DeepMill-G basic holders with Weldon shank 21 8205 E Type 21 8205 ⌀ d1 L1 Ltot ⌀ Ds h6 Clamping washer Clamping screw 29B Toolholder Weldon shank mm mm mm mm ​ ​ 09/16 eShop 16.8 35 92 20 – 219834 (SW3; 3.8 Nm) 11/18 eShop 18.8 40 97 20 – 219835 (SW3; 10.5 Nm) 13/21 eShop 21.6 45 111 25 – 219836 (4AF; 24.5 Nm) 16/26 eShop 26 50 116 25 219845 219837 (SW3; 6.0 Nm) 19/30 eShop 30 55 128 32 219846 219838 (SW3; 10.5 Nm) 25/38 eShop 38.2 60 133 32 219847 219839 (SW4; 24.5 Nm) ⌀ d1 PolySAW-G basic holders with bore Application: With combination face mill adapter. Only with PolySAW-G saw blades. ⌀ D2 Type 21 8210 ⌀ d1 ⌀ d2 L1 Ltot Mounting bore Clamping washer Clamping screw 29B ⌀ PolySAW toolholder L1 with bore mm mm mm mm mm ​ ​ 16/26 eShop 26 32 20 42.5 16 219845 219837 (SW3; 6.0 Nm) Ltot 19/30 eShop 30 32 20 42.5 16 219846 219838 (SW3; 10.5 Nm) 21 8210 ​ PolySAW-G saw blades / DeepMILL-G milling discs Note: Standard application values for ae max. ae / D 25 % 20 % 15 % 10 % fz factor 0.85 0.9 1.00 1.15 Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M S K N ​ ​ ​ ​ ​ 21 8220/​8224/​ 300 200 150 160 120 100 100 80 120 ● ● 8230–​21 8236 21 8222/​8226 600 500 400 ● ○ PolySAW-G saw blades ​ For parting off, sawing, and slitting. PolySAW-G permits cutting to the full depth. Also available with DLC coating 21 8220 21 8222 ⌀D 21 8220 21 8222 21 8224 21 8226 Type of Number of cutting edges Insert width E ae max 29C 29C 29C 29C Width ap = Saw blades PolySAW-G Width ap = Width ap = Width ap = toolholder ​ 21 8220 Z 21 8222 ​ ​ 21 1 mm 1 mm 1.5 mm 1.5 mm 21 8224 21 8226 mm TiAlN TiAlN TiAlN TiAlN ​ ​ ​ mm mm 32 eShop eShop eShop eShop 09/16 18 16 6 7.6 40 eShop eShop eShop eShop 11/18 24 20 6 10.5 50 eShop eShop eShop eShop 13/21 32 20 6 14.2 63 eShop eShop eShop eShop 16/26 40 24 6 18.5 80 eShop eShop eShop eShop 19/30 40 24 6 25 max fz mm 0.015 0.02 0.02 0.025 ​ ​ ​ ​ ​ DeepMILL-G milling discs ​ Slot milling, grooving, ribbed structures. DeepMill-G permits cutting to the full depth. 21 8230 ⌀D 21 8230 21 8232 21 8234 21 8236 Type of Number of ef- Number of Insert width E ae max 29C 29C 29C 29C toolholder fective inserts cutting edges Z Milling disc DeepMILL-G Zeff Width ap = Width ap = Width ap = Width ap = 2 mm 3 mm 4 mm 5 mm mm TiAlN TiAlN TiAlN TiAlN ​ ​ ​ mm mm 32 eShop eShop eShop eShop 11/18 8 16 6 6.6 40 eShop eShop eShop eShop 13/21 9 18 6 9.2 50 eShop eShop eShop eShop 16/26 12 24 6 12 63 eShop eShop eShop eShop 19/30 12 24 6 16.5 80 eShop eShop eShop eShop 25/38 12 24 6 20.9 max fz mm 0.025 0.025 0.03 0.03 ​ ​ ​ ​ ​ 665
