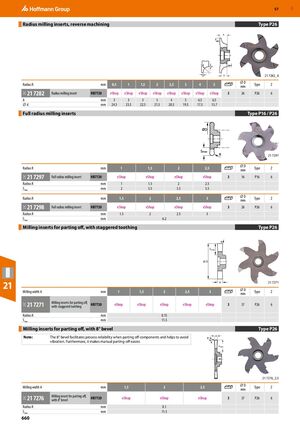

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 660

GBP 57 Radius milling inserts, reverse machining Type P26 21 7282_4 ⌀D Radius R mm 0,5 1 1,5 2 2,5 3 4 5 Type Z mm 21 7282 Radius milling insert HB7720 eShop eShop eShop eShop eShop eShop eShop eShop 3 26 P26 6 21C A mm 3 3 3 3 4 5 6.5 6.5 ​ ​ ​ ​ ⌀ d mm 24.3 23.3 22.3 21.3 20.3 19.3 17.3 15.7 ​ ​ ​ ​ Full radius milling inserts Type P16 / P26 21 7297 ⌀D Radius R mm 1 1,5 2 2,5 Type Z mm 21 7297 Full radius milling insert HB7720 eShop eShop eShop eShop 3 16 P16 6 21C Radius R mm 1 1.5 2 2.5 ​ ​ ​ ​ Smax mm 2 3.5 3.5 3.5 ​ ​ ​ ​ ⌀D Radius R mm 1,5 2 2,5 3 Type Z mm 21 7298 Full radius milling insert HB7720 eShop eShop eShop eShop 3 26 P26 6 21C Radius R mm 1.5 2 2.5 3 ​ ​ ​ ​ Smax mm 6.2 ​ ​ ​ ​ Milling inserts for parting off, with staggered toothing Type P26 R S max ØD 21 A 21 7271 ⌀D Milling width A mm 1 1,5 2 2,5 3 Type Z mm Milling inserts for parting off, HB7720 21 7271 eShop eShop eShop eShop eShop 3 37 P26 6 21C with staggered toothing Radius R mm 0.15 ​ ​ ​ ​ Smax mm 11.5 ​ ​ ​ ​ Milling inserts for parting off, with 8° bevel Type P26 Note: The 8° bevel facilitates process reliability when parting off components and helps to avoid vibration. Furthermore, it makes manual parting-off easier. max 21 7276_2,5 ⌀D Milling width A mm 1,5 2 2,5 Type Z mm Milling insert for parting off, 21 7276 HB7720 eShop eShop eShop 3 37 P26 6 21C with 8° bevel Radius R mm 0.1 ​ ​ ​ ​ Smax mm 11.5 ​ ​ ​ ​ 660
