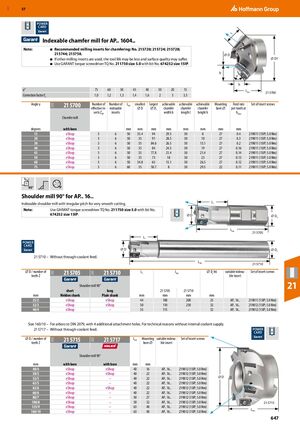

GBP 57 POWER CARD l Indexable chamfer mill for AP.. 1604.. Note: Recommended milling inserts for chamfering: No. 215720; 215724; 215728; ■  215744; 215758. ⌀D ■ If other milling inserts are used, the tool life may be less and surface quality may suffer. ⌀ D1 ■ Use GARANT torque screwdriver TQ No. 211750 size 5.0 with bit No. 674252 size 15IP. b γ˚ h γ° 75 60 50 45 40 30 20 15 Ltot 21 5700 Correction factor fz 1,0 1,2 1,3 1,4 1,6 2 3 3,5 Angle γ 21 5700 Number of Number of Ltot smallest largest achievable achievable achievable Mounting Feed rate Set of insert screws 21O effective in- indexable ⌀D ⌀ D1 chamfer chamfer chamfer bore ⌀ per tooth at serts Zeff inserts width b length l height h hmax Chamfer mill degrees with bore ​ ​ mm mm mm mm mm mm mm mm ​ 15 eShop 3 6 50 35.4 94 29.5 30 8 27 0.4 219811 (15IP; 5.0 Nm) 20 eShop 3 6 50 35 91 28.5 30 10 27 0.3 219811 (15IP; 5.0 Nm) 30 eShop 3 6 50 35 84.6 26.5 30 15.1 27 0.2 219811 (15IP; 5.0 Nm) 40 eShop 3 6 50 35 84 24.5 30 19 27 0.16 219811 (15IP; 5.0 Nm) 45 eShop 3 6 50 35 77.8 21.4 30 21.4 27 0.14 219811 (15IP; 5.0 Nm) 50 eShop 3 6 50 35 73 18 30 23 27 0.13 219811 (15IP; 5.0 Nm) 60 eShop 3 6 50 34.8 65 15.1 30 26.5 27 0.12 219811 (15IP; 5.0 Nm) 75 eShop 3 6 60 35 50.7 8 30 29.5 22 0.11 219811 (15IP; 5.0 Nm) 90° ​Shoulder mill 90° for AP.. 16.. Indexable shoulder mill with irregular pitch for very smooth cutting. L1 Note: Use GARANT torque screwdriver TQ No. 211750 size 5.0 with bit No. 674252 size 15IP. ⌀D ⌀ DS Ltot 21 5705 L1 POWER CARD ⌀D ⌀ DS 21 5710 – Without through-coolant feed. Ltot 21 5710 ⌀ D / number of 21 5705 21 5710 L1 Ltot ⌀ Ds h6 suitable indexa- Set of insert screws 21O 21O teeth Z ble insert short Shoulder mill 90° long ​ 21 5705 21 5710 ​ ​ 21 mm Weldon shank Plain shank mm mm mm mm ​ ​ 25/2 eShop eShop 44 100 200 25 AP.. 16.. 219811 (15IP; 5.0 Nm) 32/3 eShop eShop 50 110 250 32 AP.. 16.. 219812 (15IP; 5.0 Nm) 40/4 eShop – 55 115 – 32 AP.. 16.. 219812 (15IP; 5.0 Nm) Size 160/10 – For arbors to DIN 2079, with 4 additional attachment holes. For technical reasons without internal coolant supply. 21 5717 – Without through-coolant feed. POWER CARD ⌀ D / number of 21 5715 21 5717 Ltot Mounting suitable indexa- Set of insert screws 22O 21O teeth Z bore ⌀ ble insert Shoulder mill 90° mm with bore with bore mm mm ​ ​ 40/4 eShop eShop 40 16 AP.. 16.. 219812 (15IP; 5.0 Nm) 50/5 eShop eShop 40 22 AP.. 16.. 219812 (15IP; 5.0 Nm) 52/5 eShop – 40 22 AP.. 16.. 219812 (15IP; 5.0 Nm) ⌀D 63/5 eShop – 40 22 AP.. 16.. 219812 (15IP; 5.0 Nm) 63/6 eShop eShop 40 22 AP.. 16.. 219812 (15IP; 5.0 Nm) 66/6 eShop – 40 22 AP.. 16.. 219812 (15IP; 5.0 Nm) 80/7 eShop – 50 27 AP.. 16.. 219812 (15IP; 5.0 Nm) 100/8 eShop – 50 32 AP.. 16.. 219812 (15IP; 5.0 Nm) 21 5715 125/9 eShop – 63 40 AP.. 16.. 219812 (15IP; 5.0 Nm) Ltot 160/10 eShop – 63 40 AP.. 16.. 219812 (15IP; 5.0 Nm) 647
