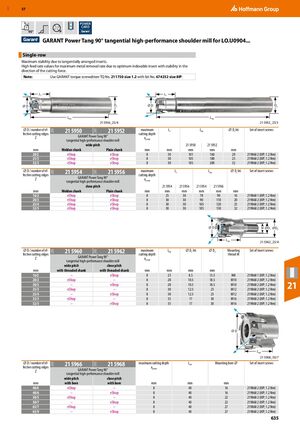

GBP 57 POWER CARD 90° GARANT Power Tang 90° tangential high-performance shoulder mill for LO.U0904... Single-row Maximum stability due to tangentially arranged inserts. High feed rate values for maximum metal removal rate due to optimum indexable insert with stability in the direction of the cutting force. Note: Use GARANT torque screwdriver TQ No. 211750 size 1.2 with bit No. 674252 size 8IP. L1 L1 ⌀D DS ⌀D DS Ltot Ltot 21 5956_25/4 21 5952_25/3 ⌀ D / number of ef- 21 5950 21 5952 maximum L1 Ltot ⌀ Ds h6 Set of insert screws 21O 21O fective cutting edges cutting depth Z GARANT Power Tang 90° ap max​ tangential high-performance shoulder mill wide pitch ​ 21 5950 21 5952 ​ ​ mm Weldon shank Plain shank mm mm mm mm mm ​ 20/2 eShop eShop 8 30 101 160 20 219868 2 (8IP; 1.2 Nm) 25/3 eShop eShop 8 30 105 180 25 219868 2 (8IP; 1.2 Nm) 32/3 eShop eShop 8 30 105 200 32 219868 2 (8IP; 1.2 Nm) ⌀ D / number of ef- 21 5954 21 5956 maximum L1 Ltot ⌀ Ds h6 Set of insert screws 21O 21O fective cutting edges cutting depth Z GARANT Power Tang 90° ap max​ tangential high-performance shoulder mill close pitch 21 5954 21 5956 21 5954 21 5956 ​ ​ mm Weldon shank Plain shank mm mm mm mm mm mm ​ 16/2 eShop eShop 8 25 30 78 90 16 219868 1 (8IP; 1.2 Nm) 20/3 eShop eShop 8 30 30 90 110 20 219868 2 (8IP; 1.2 Nm) 25/4 eShop eShop 8 30 30 105 120 25 219868 2 (8IP; 1.2 Nm) 32/5 eShop eShop 8 30 30 105 130 32 219868 2 (8IP; 1.2 Nm) ⌀D M ⌀D1 ⌀D2 Ltot 21 5962_25/4 ⌀ D / number of ef- 21 5960 21 5962 maximum Ltot ⌀ D1 h6 ⌀ D2 Mounting Set of insert screws 21O 21O fective cutting edges cutting depth thread M Z GARANT Power Tang 90° ap max tangential high-performance shoulder mill wide pitch close pitch mm with threaded shank with threaded shank mm mm mm mm ​ ​ 16/2 – eShop 8 23 8.5 13.5 M8 219868 1 (8IP; 1.2 Nm) 20/2 eShop – 8 28 10.5 18.5 M10 219868 2 (8IP; 1.2 Nm) 20/3 25/3 – eShop eShop – 8 8 28 30 10.5 12.5 18.5 23 M10 M12 219868 2 (8IP; 1.2 Nm) 219868 2 (8IP; 1.2 Nm) 21 25/4 – eShop 8 30 12.5 23 M12 219868 2 (8IP; 1.2 Nm) 32/3 eShop – 8 35 17 30 M16 219868 2 (8IP; 1.2 Nm) 32/5 – eShop 8 35 17 30 M16 219868 2 (8IP; 1.2 Nm) ⌀D Ltot 21 5968_50/7 ⌀ D / number of ef- 21 5966 21 5968 maximum cutting depth Ltot Mounting bore ⌀ Set of insert screws 21O 21O fective cutting edges ap max Z GARANT Power Tang 90° tangential high-performance shoulder mill wide pitch close pitch mm with bore with bore mm mm mm ​ 40/4 eShop – 8 40 16 219868 2 (8IP; 1.2 Nm) 40/6 – eShop 8 40 16 219868 2 (8IP; 1.2 Nm) 50/5 eShop – 8 40 22 219868 2 (8IP; 1.2 Nm) 50/7 – eShop 8 40 22 219868 2 (8IP; 1.2 Nm) 63/7 eShop – 8 40 27 219868 2 (8IP; 1.2 Nm) 63/9 – eShop 8 40 27 219868 2 (8IP; 1.2 Nm) 635
