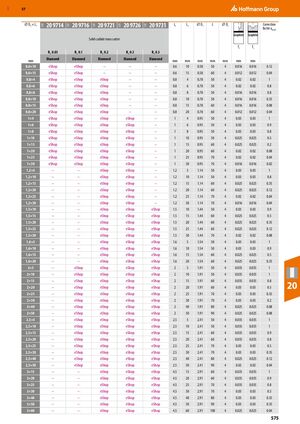

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 575

Предыдущая страница Следующая страница

Навигация

⌀ DC × L1 Артикул Lc (мм) L1 (мм) ⌀ D1 (мм) L (мм) ⌀ Ds (мм) fz (мм) fz (мм) Коэффициент коррекции ap corr
R1 0.05 R1 0.1 R1 0.2 R1 0.3 R1 0.5
0,6×10 eShop eShop – – – 0.6 10 0.58 50 4 0.016 0.016 0.12
0,6×15 eShop eShop – – – 0.6 15 0.58 60 4 0.012 0.012 0.04
0,8×4 eShop eShop eShop – – 0.8 4 0.78 50 4 0.02 0.02 1
0,8×6 eShop eShop eShop – – 0.8 6 0.78 50 4 0.02 0.02 0.8
0,8×8 eShop eShop eShop – – 0.8 8 0.78 50 4 0.016 0.016 0.8
0,8×10 eShop eShop eShop – – 0.8 10 0.78 50 4 0.016 0.016 0.35
0,8×15 eShop eShop eShop – – 0.8 15 0.78 60 4 0.016 0.016 0.08
0,8×20 eShop eShop eShop – – 0.8 20 0.78 60 4 0.012 0.012 0.04
1×4 eShop eShop eShop eShop – 1 4 0.95 50 4 0.03 0.03 1
1×6 eShop eShop eShop eShop – 1 6 0.95 50 4 0.03 0.03 0.9
1×8 eShop eShop eShop eShop – 1 8 0.95 50 4 0.03 0.03 0.8
1×10 eShop eShop eShop eShop – 1 10 0.95 50 4 0.025 0.025 0.5
1×15 eShop eShop eShop eShop – 1 15 0.95 60 4 0.025 0.025 0.2
1×20 eShop eShop eShop eShop – 1 20 0.95 60 4 0.02 0.02 0.08
1×25 eShop eShop eShop eShop – 1 25 0.95 70 4 0.02 0.02 0.04
1×30 eShop eShop eShop eShop – 1 30 0.95 70 4 0.016 0.016 0.02
1,2×5 – – eShop eShop – 1.2 5 1.14 50 4 0.03 0.03 1
1,2×10 – – eShop eShop – 1.2 10 1.14 50 4 0.03 0.03 0.8
1,2×15 – – eShop eShop – 1.2 15 1.14 60 4 0.025 0.025 0.35
1,2×20 – – eShop eShop – 1.2 20 1.14 60 4 0.025 0.025 0.12
1,2×25 – – eShop eShop – 1.2 25 1.14 70 4 0.02 0.02 0.04
1,2×30 – – eShop eShop – 1.2 30 1.14 70 4 0.016 0.016 0.04
1,5×10 – – eShop eShop eShop 1.5 10 1.44 50 4 0.03 0.03 0.9
1,5×15 – – eShop eShop eShop 1.5 15 1.44 60 4 0.025 0.025 0.5
1,5×20 – – eShop eShop eShop 1.5 20 1.44 60 4 0.025 0.025 0.35
1,5×25 – – eShop eShop eShop 1.5 25 1.44 60 4 0.025 0.025 0.12
1,5×30 – – eShop eShop eShop 1.5 30 1.44 70 4 0.02 0.02 0.08
1,6×5 – – eShop eShop eShop 1.6 5 1.54 50 4 0.03 0.03 1
1,6×10 – – eShop eShop eShop 1.6 10 1.54 50 4 0.03 0.03 0.9
1,6×15 – – eShop eShop eShop 1.6 15 1.54 60 4 0.025 0.025 0.5
1,6×20 – – eShop eShop eShop 1.6 20 1.54 60 4 0.025 0.025 0.35
2×5 – eShop eShop eShop eShop 2 5 1.91 50 4 0.035 0.035 1
2×10 – eShop eShop eShop eShop 2 10 1.91 50 4 0.035 0.035 1
2×15 – eShop eShop eShop eShop 2 15 1.91 60 4 0.035 0.035 0.8
2×20 – eShop eShop eShop eShop 2 20 1.91 60 4 0.03 0.03 0.5
2×25 – eShop eShop eShop eShop 2 25 1.91 70 4 0.03 0.03 0.35
2×30 – eShop eShop eShop eShop 2 30 1.91 70 4 0.03 0.03 0.2
2×40 – eShop eShop eShop eShop 2 40 1.91 80 4 0.025 0.025 0.08
2×50 – eShop eShop eShop eShop 2 50 1.91 90 4 0.025 0.025 0.08
2,5×5 – eShop eShop eShop eShop 2.5 5 2.41 50 4 0.035 0.035 1
2,5×10 – eShop eShop eShop eShop 2.5 10 2.41 50 4 0.035 0.035 1
2,5×15 – eShop eShop eShop eShop 2.5 15 2.41 60 4 0.035 0.035 0.9
2,5×20 – eShop eShop eShop eShop 2.5 20 2.41 60 4 0.035 0.035 0.8
2,5×25 – eShop eShop eShop eShop 2.5 25 2.41 70 4 0.03 0.03 0.5
2,5×30 – eShop eShop eShop eShop 2.5 30 2.41 70 4 0.03 0.03 0.35
2,5×40 – eShop eShop eShop eShop 2.5 40 2.41 80 4 0.025 0.025 0.12
2,5×50 – eShop eShop eShop eShop 2.5 50 2.41 90 4 0.02 0.02 0.04
3×15 – – eShop eShop eShop 4.5 15 2.91 60 4 0.035 0.035 1
3×20 – – eShop eShop eShop 4.5 20 2.91 60 4 0.035 0.035 0.9
3×25 – – eShop eShop eShop 4.5 25 2.91 70 4 0.035 0.035 0.8
3×30 – – eShop eShop eShop 4.5 30 2.91 70 4 0.03 0.03 0.5
3×40 – – eShop eShop eShop 4.5 40 2.91 80 4 0.03 0.03 0.35
3×50 – – eShop eShop eShop 4.5 50 2.91 90 4 0.03 0.03 0.35
3×60 – – eShop eShop eShop 4.5 60 2.91 100 4 0.025 0.025 0.04
