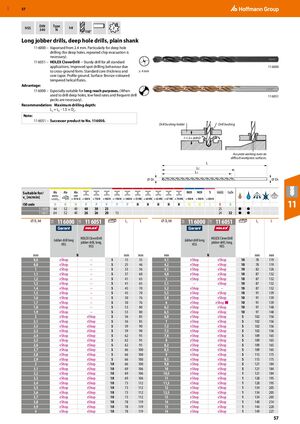

GBP 57 HSS DIN Type h8 340 N 2 118° ​Long jobber drills, deep hole drills, plain shank 11 6000 – Vaporised from 2.4 mm. Particularly for deep hole drilling (for deep holes, repeated chip evacuation is necessary). 11 6051 – HOLEX CleverDrill − Sturdy drill for all standard applications. Improved spot drilling behaviour due ​ 11 6000 to cross-ground form. Standard core thickness and ≥ 4 mm core taper. Profile ground. Surface: Bronze-coloured tempered helical flutes. Advantage: 11 6000 – Especially suitable for long reach purposes. (When used to drill deep holes, low feed rates and frequent drill ​ 11 6051 pecks are necessary). Recommendation: Maximum drilling depth: L2 = LC - 1.5 × DC. Note: 11 6051 – Successor product to No. 116050. Drill bushing holder Drill bushing 1-1.5× drill⌀ Accurate working even on difficult workpiece surfaces. L LC L2 ⌀ DC ⌀ DS Suitable for/ vc [m/min] ISO code 11 6000 N 64 N 52 N 40 P 40 P 30 P 25 P P H H H H H M M S K 25 N ​ ● ​ ● ​ ​ ​ 11 11 6051 64 52 40 26 26 20 15 24 32 ● ● ⌀ DC h8 11 6000 11 6051 Lc L ⌀ DC h8 11 6000 11 6051 Lc L 12B 12B 11B 11B HOLEX CleverDrill HOLEX CleverDrill Jobber drill long Jobber drill long jobber drill, long, jobber drill, long, HSS HSS HSS HSS mm N mm mm mm N mm mm 0,6 eShop – 5 15 35 4,1 eShop eShop 10 78 119 0,8 eShop – 5 25 46 4,2 eShop eShop 10 78 119 1 eShop – 5 33 56 4,5 eShop eShop 10 82 126 1,1 eShop – 5 37 60 4,8 eShop eShop 10 87 132 1,2 eShop – 5 41 65 5 eShop eShop 10 87 132 1,3 eShop – 5 41 65 5,1 – eShop 10 87 132 1,4 eShop – 5 45 70 5,2 eShop – 10 87 132 1,5 eShop – 5 45 70 5,5 eShop eShop 10 91 139 1,6 eShop – 5 50 76 5,8 eShop eShop 10 91 139 1,7 eShop – 5 50 76 6 eShop eShop ■ 10 91 139 1,8 eShop – 5 53 80 6,2 eShop eShop 10 97 148 1,9 eShop – 5 53 80 6,5 eShop eShop 10 97 148 2 eShop eShop 5 56 85 6,8 eShop eShop 5 102 156 2,1 eShop eShop 5 56 85 7 eShop eShop 5 102 156 2,2 eShop eShop 5 59 90 7,2 eShop eShop 5 102 156 2,3 eShop eShop 5 59 90 7,5 eShop eShop 5 102 156 2,4 eShop eShop 5 62 95 7,8 eShop eShop 5 109 165 2,5 eShop eShop 5 62 95 8 eShop eShop 5 109 165 2,6 eShop eShop 5 62 95 8,2 eShop eShop 5 109 165 2,7 eShop eShop 5 66 100 8,5 eShop eShop 5 109 165 2,8 eShop eShop 5 66 100 9 eShop eShop 5 115 175 2,9 eShop eShop 5 66 100 9,5 eShop eShop 5 115 175 3 eShop eShop 10 66 100 9,8 eShop eShop 5 121 184 3,1 eShop eShop 10 69 106 10 eShop eShop 5 121 184 3,2 eShop eShop 10 69 106 10,5 eShop eShop 1 121 184 3,3 eShop eShop 10 69 106 11 eShop eShop 1 128 195 3,4 eShop eShop 10 73 112 11,5 eShop eShop 1 128 195 3,5 eShop eShop 10 73 112 12 eShop eShop 1 134 205 3,6 eShop eShop 10 73 112 12,5 eShop eShop 1 134 205 3,7 eShop eShop 10 73 112 13 eShop eShop 1 134 205 3,8 eShop eShop 10 78 119 14 eShop eShop 1 140 214 3,9 eShop eShop 10 78 119 15 eShop eShop 1 144 220 4 eShop eShop 10 78 119 16 eShop eShop 1 149 227 57
