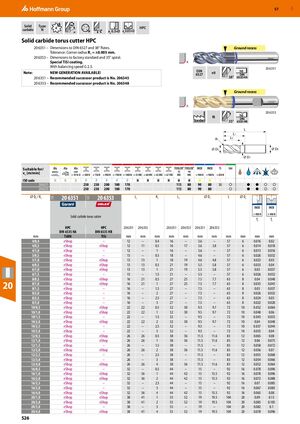

Твердосплавный торцовый резец HPC
- 20 6351 – Размеры по DIN 6527 и спираль 38°. Допуск: Радиус угла R1 = ±0,005 мм.
- 20 6353 – Размеры по стандарту изготовителя и спираль 35°. Специальное покрытие TiSi. С балансировкой скорость G 2.5.
Примечание:
Доступно новое поколение!
- 20 6351 – Рекомендуемый продукт-преемник № 206345
- 20 6353 – Рекомендуемый продукт-преемник № 206348
| Размер (мм) | 20 6351 TiAlN | 20 6353 TiSi | Lc (мм) 20 6351 | Lc (мм) 20 6353 | R1 (мм) | L1 (мм) 20 6351 | L1 (мм) 20 6353 | D1 (мм) 20 6351 | D1 (мм) 20 6353 | L (мм) | Ds (мм) | fz 20 6351 | fz 20 6353 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4/0,4 | eShop | – | 12 | – | 0.4 | 16 | – | 3.6 | – | 57 | 6 | 0.016 | 0.02 |
| 4/0,5 | eShop | eShop | 12 | 11 | 0.5 | 16 | 17 | 3.6 | 3.8 | 57 | 6 | 0.014 | 0.018 |
| 4/1,0 | eShop | – | 12 | – | 1 | 16 | – | 3.6 | – | 57 | 6 | 0.013 | 0.016 |
| 5/0,5 | eShop | – | 13 | – | 0.5 | 18 | – | 4.6 | – | 57 | 6 | 0.026 | 0.032 |
| 5/1,0 | eShop | eShop | 13 | 13 | 1 | 18 | 19 | 4.6 | 4.8 | 57 | 6 | 0.023 | 0.03 |
| 6/0,5 | eShop | eShop | 13 | 13 | 0.5 | 21 | 19 | 5.5 | 5.8 | 57 | 6 | 0.033 | 0.04 |
| 6/1,0 | eShop | eShop | 13 | 13 | 1 | 21 | 19 | 5.5 | 5.8 | 57 | 6 | 0.03 | 0.037 |
| 6/1,5 | eShop | – | 13 | – | 1.5 | 21 | – | 5.5 | – | 57 | 6 | 0.026 | 0.032 |
| 8/0,5 | eShop | eShop | 16 | 21 | 0.5 | 27 | 25 | 7.5 | 7.7 | 63 | 8 | 0.04 | 0.048 |
| 8/1,0 | eShop | eShop | 16 | 21 | 1 | 27 | 25 | 7.5 | 7.7 | 63 | 8 | 0.035 | 0.043 |
| 8/1,5 | eShop | – | 16 | – | 1.5 | 27 | – | 7.5 | – | 63 | 8 | 0.03 | 0.037 |
| 8/2,0 | eShop | – | 16 | – | 2 | 27 | – | 7.5 | – | 63 | 8 | 0.026 | 0.032 |
| 8/2,5 | eShop | – | 16 | – | 2.5 | 27 | – | 7.5 | – | 63 | 8 | 0.024 | 0.03 |
| 8/3,0 | eShop | – | 16 | – | 3 | 27 | – | 7.5 | – | 63 | 8 | 0.022 | 0.028 |
| 10/0,5 | eShop | eShop | 22 | 22 | 0.5 | 32 | 30 | 9.5 | 9.7 | 72 | 10 | 0.052 | 0.064 |
| 10/1,0 | eShop | eShop | 22 | 22 | 1 | 32 | 30 | 9.5 | 9.7 | 72 | 10 | 0.048 | 0.06 |
| 10/1,5 | eShop | – | 22 | – | 1.5 | 32 | – | 9.5 | – | 72 | 10 | 0.043 | 0.053 |
| 10/2,0 | eShop | eShop | 22 | 22 | 2 | 32 | 30 | 9.5 | 9.7 | 72 | 10 | 0.04 | 0.048 |
| 10/2,5 | eShop | – | 22 | – | 2.5 | 32 | – | 9.5 | – | 72 | 10 | 0.037 | 0.044 |
| 10/3,0 | eShop | – | 22 | – | 3 | 32 | – | 9.5 | – | 72 | 10 | 0.035 | 0.04 |
| 12/0,5 | eShop | eShop | 26 | 26 | 0.5 | 38 | 36 | 11.5 | 11.6 | 83 | 12 | 0.065 | 0.08 |
| 12/1,0 | eShop | eShop | 26 | 26 | 1 | 38 | 36 | 11.5 | 11.6 | 83 | 12 | 0.06 | 0.075 |
| 12/1,5 | eShop | – | 26 | – | 1.5 | 38 | – | 11.5 | – | 83 | 12 | 0.058 | 0.072 |
| 12/2,0 | eShop | eShop | 26 | 26 | 2 | 38 | 36 | 11.5 | 11.6 | 83 | 12 | 0.056 | 0.07 |
| 12/2,5 | eShop | – | 26 | – | 2.5 | 38 | – | 11.5 | – | 83 | 12 | 0.055 | 0.068 |
| 12/3,0 | eShop | – | 26 | – | 3 | 38 | – | 11.5 | – | 83 | 12 | 0.054 | 0.066 |
| 12/4,0 | eShop | eShop | 26 | 26 | 4 | 38 | 36 | 11.5 | 11.6 | 83 | 12 | 0.052 | 0.064 |
| 16/0,5 | eShop | – | 32 | – | 0.5 | 44 | – | 15 | – | 92 | 16 | 0.078 | 0.096 |
| 16/1,0 | eShop | eShop | 32 | 36 | 1 | 44 | 42 | 15 | 15.5 | 92 | 16 | 0.078 | 0.096 |
| 16/2,0 | eShop | eShop | 32 | 36 | 2 | 44 | 42 | 15 | 15.5 | 92 | 16 | 0.072 | 0.088 |
| 16/2,5 | eShop | – | 32 | – | 2.5 | 44 | – | 15 | – | 92 | 16 | 0.07 | 0.085 |
| 16/3,0 | eShop | – | 32 | – | 3 | 44 | – | 15 | – | 92 | 16 | 0.067 | 0.083 |
| 16/4,0 | eShop | eShop | 32 | 36 | 4 | 44 | 42 | 15 | 15.5 | 92 | 16 | 0.065 | 0.08 |
| 20/1,0 | eShop | eShop | 38 | 41 | 1 | 55 | 52 | 19 | 19.5 | 104 | 20 | 0.09 | 0.13 |
| 20/2,0 | eShop | eShop | 38 | 41 | 2 | 55 | 52 | 19 | 19.5 | 104 | 20 | 0.085 | 0.105 |
| 20/3,0 | eShop | – | 38 | – | 3 | 55 | – | 19 | – | 104 | 20 | 0.082 | 0.1 |
| 20/4,0 | eShop | eShop | 38 | 41 | 4 | 55 | 52 | 19 | 19.5 | 104 | 20 | 0.078 | 0.096 |
