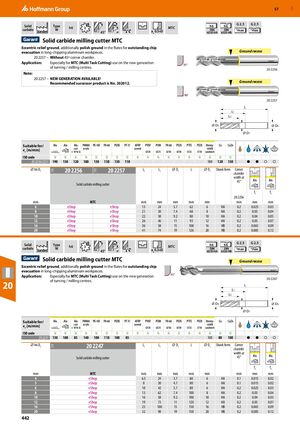

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 442

GBP 57 G 2.5 G 2.5 Solid Type h6 MTC h6 h6 carbide Standard W 3 DIN DIN ≠ ae 0.5×D max n max n 45° 6535 HA 6535 HB Solid carbide milling cutter MTC Eccentric relief ground, additionally polish ground in the flutes for outstanding chip evacuation in long-chipping aluminium workpieces. Ground recess 20 2257 – Without 45º corner chamfer. Application: Especially for MTC (Multi Task Cutting) use on the new generation 45° of turning / milling centres. 20 2256 Note: 20 2257 – NEW GENERATION AVAILABLE! Recommended successor product is No. 202012. Ground recess 90° 20 2257 L L1 LC ⌀ Dc ⌀ DS ⌀ D1 Suitable for/ vc [m/min] ISO code N N N N N N N N N N N N N N N N N N ​ ​ ​ ​ ​ 20 2256/​2257 190 150 120 180 130 150 130 110 180 120 150 ● ● ○ ○ ⌀ h6 DC 20 2256 20 2257 Lc L1 ⌀ D1 L ⌀ Ds Shank form Corner 11X 11X chamfer width at 45° Solid carbide milling cutter fz fz ​ ​ ​ ​ ​ ​ 20 2256 ​ ​ mm MTC mm mm mm mm mm ​ mm mm mm 6 eShop eShop 13 24 5.7 62 6 HA 0.2 0.025 0.03 8 eShop eShop 21 30 7.4 68 8 HA 0.2 0.03 0.04 10 eShop eShop 22 38 9.2 80 10 HA 0.2 0.04 0.05 12 eShop eShop 26 46 11 93 12 HA 0.2 0.05 0.07 16 eShop eShop 36 58 15 108 16 HB 0.2 0.065 0.09 20 eShop eShop 41 74 19 126 20 HB 0.2 0.085 0.12 G 2.5 G 2.5 Solid Type h6 MTC h6 h6 carbide Standard W 3 DIN DIN ≠ ae 0.3×D max n max n 45° 6535 HA 6535 HB Solid carbide milling cutter MTC Ground recess Eccentric relief ground, additionally polish ground in the flutes for outstanding chip evacuation in long-chipping aluminium workpieces. 45° Application: Especially for MTC (Multi Task Cutting) use on the new generation 20 2247 of turning / milling centres. 20 L1 L LC ⌀ Dc ⌀ DS ⌀ D1 Suitable for/ vc [m/min] ISO code N N N N N N N N N N N N N N N N N N ​ ​ ​ ​ ​ 20 2247 130 100 85 140 100 110 100 85 100 80 100 ● ● ○ ○ ⌀ h6 DC 20 2247 Lc L1 ⌀ D1 L ⌀ Ds Shank form Corner 11X chamfer width at Solid carbide milling cutter 45° fz fz mm MTC mm mm mm mm mm ​ mm mm mm 4 eShop 6.5 24 3.7 80 6 HA 0.1 0.015 0.02 5 eShop 8 30 4.7 80 6 HA 0.1 0.015 0.02 6 eShop 10 42 5.7 80 6 HA 0.2 0.025 0.03 8 eShop 13 62 7.4 100 8 HA 0.2 0.03 0.04 10 eShop 16 58 9.2 100 10 HA 0.2 0.04 0.05 12 eShop 19 73 11 120 12 HA 0.2 0.05 0.07 16 eShop 25 100 15 150 16 HB 0.2 0.065 0.09 20 eShop 32 98 19 150 20 HB 0.2 0.085 0.12 442
