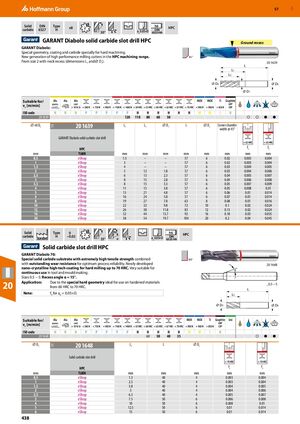

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 438

GBP 57 Solid DIN Type e8 h6 HPC carbide 6527 H 2 DIN 30° ae 0.05×D 6535 HA GARANT Diabolo solid carbide slot drill HPC Ground recess GARANT Diabolo: Special geometry, coating and carbide specially for hard machining. New generation of high performance milling cutters in the HPC machining range. 45° From size 2 with neck recess (dimensions L1 and⌀ D1). 20 1639 L L1 LC ⌀ Dc ⌀ DS ⌀ D1 Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H H M M S N ​ ​ ​ ​ ​ 20 1639 120 110 80 60 50 ○ ○ ● ● ⌀ e8 DC 20 1639 Lc L1 ⌀ D1 L ⌀ Ds Corner chamfer 11X width at 45° GARANT Diabolo solid carbide slot drill HPC fz fz mm TiAlN mm mm mm mm mm mm mm mm 0,5 eShop 1.5 – – 57 6 0.02 0.003 0.004 1 eShop 3 – – 57 6 0.02 0.003 0.004 1,5 eShop 4 – – 57 6 0.03 0.004 0.005 2 eShop 5 12 1.8 57 6 0.03 0.004 0.006 2,5 eShop 6 13 2.3 57 6 0.04 0.005 0.007 3 eShop 8 15 2.8 57 6 0.04 0.006 0.008 3,5 eShop 8 15 3.3 57 6 0.05 0.007 0.009 4 eShop 11 15 3.8 57 6 0.05 0.008 0.01 5 eShop 13 21 4.8 57 6 0.06 0.01 0.014 6 eShop 16 24 5.8 57 6 0.07 0.01 0.014 8 eShop 19 27 7.8 63 8 0.08 0.01 0.016 10 eShop 22 32 9.8 72 10 0.1 0.02 0.024 12 eShop 26 38 11.8 83 12 0.13 0.02 0.024 16 eShop 32 44 15.7 92 16 0.18 0.03 0.035 20 eShop 38 54 19.7 104 20 0.2 0.04 0.045 Solid Type 0 h6 HPC carbide Standard H −0.02 2 DIN 35° ≠ ae 0.05×D 6535 HA Solid carbide slot drill HPC GARANT Diabolo 70: Special solid carbide substrate with extremely high tensile strength combined 90° with outstanding wear resistance for optimum process reliability. Newly developed 20 1648 nano-crystalline high-tech coating for hard milling up to 70 HRC. Very suitable for α continuous use in tool and mould making. Sizes 0.5 − 5: Recess angle α = 15°. 20 Application: Due to the special hard geometry ideal for use on hardened materials _0,5 – 5 from 60 HRC to 70 HRC. L Note: fz for ap = 0.05×D. LC ⌀ DC ⌀ DS Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M S N ​ ​ ​ ​ ​ ​ 20 1648 60 50 40 35 ○ ● ● ⌀ DC 20 1648 Lc L ⌀ Ds 11X Solid carbide slot drill HPC fz fz mm TiAlN mm mm mm mm mm 0,5 eShop 1.3 40 4 0.003 0.004 1 eShop 2.5 40 4 0.003 0.004 1,5 eShop 3.8 40 4 0.004 0.005 2 eShop 5 40 4 0.004 0.006 2,5 eShop 6.3 40 4 0.005 0.007 3 eShop 7.5 50 6 0.006 0.008 4 eShop 10 50 6 0.008 0.01 5 eShop 12.5 50 6 0.01 0.014 6 eShop 15 50 6 0.01 0.014 438
