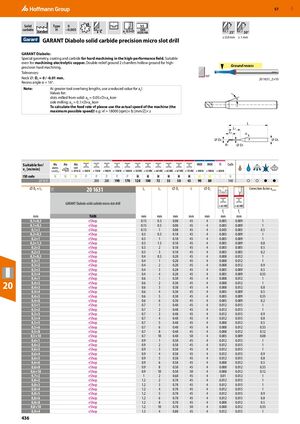

GBP 57 Solid Type 0 h5 carbide Standard H −0.005 2 DIN ae 0.1×D 6535 HA 25° 30° ≤ 0.8 mm ≥ 1 mm GARANT Diabolo solid carbide precision micro slot drill GARANT Diabolo: Special geometry, coating and carbide for hard machining in the high-performance field. Suitable even for machining electrolytic copper. Double-relief ground 2 chamfers hollow ground for high- precision hard machining. Ground recess Tolerances: 90° Neck ⌀: D1 = 0 / -0.01 mm. 20 1631_2×10 Recess angle α = 16°. Note: At greater tool overhang lengths, use a reduced value for ap! Values for: slots milled from solid: ap = 0.05×D×ap korr α side milling: ap = 0.1×D×ap korr To calculate the feed rate vf please use the actual speed of the machine (the maximum possible speed)! e.g: vf = 18000 [rpm]× fz [mm/Z]× z L L1 Lc α ⌀ DC ⌀ DS R1 ⌀ D1 Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H H M M S N ​ ​ ​ ​ ​ 20 1631 200 200 190 170 120 100 72 55 50 45 90 80 140 ○ ○ ● ● ⌀ DC × L1 20 1631 Lc L1 ⌀ D1 L ⌀ Ds Correction factor ap corr 11X GARANT Diabolo solid carbide micro slot drill fz fz mm TiAlN mm mm mm mm mm mm mm ​ 0,1×0,3 eShop 0.15 0.3 0.08 45 4 0.005 0.009 1 0,1×0,5 eShop 0.15 0.5 0.08 45 4 0.005 0.009 1 0,1×1 eShop 0.15 1 0.08 45 4 0.003 0.005 0.5 0,2×0,5 eShop 0.3 0.5 0.18 45 4 0.005 0.009 1 0,2×1 eShop 0.3 1 0.18 45 4 0.005 0.009 1 0,2×1,5 eShop 0.3 1.5 0.18 45 4 0.005 0.009 0.8 0,2×2 eShop 0.3 2 0.18 45 4 0.003 0.005 0.5 0,2×3 eShop 0.3 3 0.18 45 4 0.003 0.005 0.2 0,3×0,5 eShop 0.4 0.5 0.28 45 4 0.008 0.012 1 0,3×1 eShop 0.4 1 0.28 45 4 0.008 0.012 1 0,3×2 eShop 0.4 2 0.28 45 4 0.008 0.012 0.9 0,3×3 eShop 0.4 3 0.28 45 4 0.005 0.009 0.5 0,3×4 eShop 0.4 4 0.28 45 4 0.005 0.009 0.35 0,4×1 eShop 0.6 1 0.38 45 4 0.008 0.012 1 20 0,4×2 0,4×3 0,4×4 eShop eShop eShop 0.6 0.6 0.6 2 3 4 0.38 0.38 0.38 45 45 45 4 4 4 0.008 0.008 0.005 0.012 0.012 0.009 1 0.8 0.5 0,4×5 eShop 0.6 5 0.38 45 4 0.005 0.009 0.35 0,4×6 eShop 0.6 6 0.38 45 4 0.005 0.009 0.2 0,5×1 eShop 0.7 1 0.48 45 4 0.012 0.015 1 0,5×2 eShop 0.7 2 0.48 45 4 0.012 0.015 1 0,5×3 eShop 0.7 3 0.48 45 4 0.012 0.015 0.9 0,5×4 eShop 0.7 4 0.48 45 4 0.012 0.015 0.8 0,5×5 eShop 0.7 5 0.48 45 4 0.008 0.012 0.5 0,5×6 eShop 0.7 6 0.48 45 4 0.008 0.012 0.35 0,5×8 eShop 0.7 8 0.48 45 4 0.008 0.012 0.12 0,5×10 eShop 0.7 10 0.48 50 4 0.005 0.009 0.08 0,6×1 eShop 0.9 1 0.58 45 4 0.012 0.015 1 0,6×2 eShop 0.9 2 0.58 45 4 0.012 0.015 1 0,6×3 eShop 0.9 3 0.58 45 4 0.012 0.015 1 0,6×4 eShop 0.9 4 0.58 45 4 0.012 0.015 0.9 0,6×5 eShop 0.9 5 0.58 45 4 0.012 0.015 0.8 0,6×6 eShop 0.9 6 0.58 45 4 0.008 0.012 0.5 0,6×8 eShop 0.9 8 0.58 45 4 0.008 0.012 0.35 0,6×10 eShop 0.9 10 0.58 50 4 0.008 0.012 0.12 0,7×2 eShop 1 2 0.68 45 4 0.01 0.012 1 0,8×2 eShop 1.2 2 0.78 45 4 0.012 0.015 1 0,8×3 eShop 1.2 3 0.78 45 4 0.012 0.015 1 0,8×4 eShop 1.2 4 0.78 45 4 0.012 0.015 1 0,8×5 eShop 1.2 5 0.78 45 4 0.012 0.015 0.9 0,8×6 eShop 1.2 6 0.78 45 4 0.012 0.015 0.8 0,8×8 eShop 1.2 8 0.78 45 4 0.008 0.012 0.5 0,8×10 eShop 1.2 10 0.78 50 4 0.008 0.012 0.35 0,9×4 eShop 1.3 4 0.88 45 4 0.012 0.015 1 436
