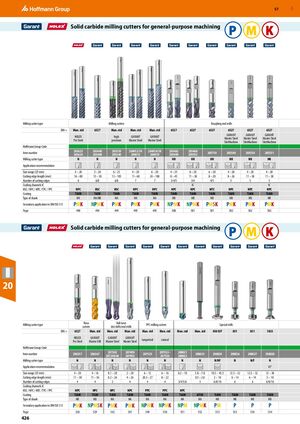

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 426

GBP 57 Solid carbide milling cutters for general-purpose machining Milling cutter type Milling cutters Roughing end mills DIN > Man. std 6527 Man. std Man. std Man. std 6527 6527 6527 6527 6527 6527 GARANT GARANT GARANT HOLEX high GARANT GARANT Master Steel Master Steel Master Steel Pro Steel precision Master Steel Master Steel SlotMachine SlotMachine SlotMachine Hoffmann Group Code 203623 203440 203530 204012/14 204016/18 205482 205488 Item number 205710 205548 205550 205551 203624 203480 203540 204015 204019 205490 205592 Milling cutter type N N N N N HR HR HR NR NR NR Application recommendation Size range (⌀ mm) 4 – 20 5 – 20 6 – 25 4 – 20 6 – 20 4 – 25 8 – 20 6 – 20 4 – 20 4 – 20 4 – 20 Cutting edge length (mm) 16 – 80 13 – 38 13 – 105 11– 60 24 – 100 8 – 45 11 – 38 8 – 20 8 – 26 11 – 38 11 – 38 Number of cutting edges 6 6/8 6/8 7 7 3/4/5 3/4 4/5 5 5 5 Cooling channels IC IC IC HSC / HPC / MTC / TPC / PPC HPC HSC HSC HPC HPC HPC HPC MTC HPC HPC HPC Coating TiAlN TiAIN TiAIN TiAlN TiAlN TiAIN TiAIN TiAIN TiAIN TiAIN TiAIN Type of shank HA HA/HB HA HA HA HB HB HB HB HB HB Secondary application to DIN ISO 513 PMK NPMK PMK PMK PMK NPMK NPMK PMSK PMK PMK PMK Page 490 494 494 495 495 500 501 501 502 502 502 Solid carbide milling cutters for general-purpose machining 20 Torus Ball nose Milling cutter type PPC milling cutters Special mills cutters slot drills/end mills DIN > 6527 Man. std Man. std Man. std Man. std Man. std Man. std Man. std 850 D/F 851 851 1833 HOLEX GARANT GARANT GARANT tangential conical Pro Steel Master UNI Master Steel Master Steel Hoffmann Group Code 207242 207490 207532– 208021 Item number 206357 206367 207525 208033 208024 208026 208027 208028 207244/46 207492 207534 208023 Milling cutter type N N N N N N N N N/NF N N/F N Application recommendation 45° Size range (⌀ mm) 4 – 20 4 – 16 0.1 – 20 2 – 20 6 – 12 6 – 16 0.2 – 10 5.8 – 7.8 10.5 – 45.5 12.5 – 32 12.5 – 32 12 – 38 Cutting edge length (mm) 11 – 38 11 – 36 0.2 – 26 4 – 26 20.5 – 27 8 – 22 0.5 – 2.0 2 – 10 6 – 14 6 – 14 3 – 10 Number of cutting edges 4 4 2 4 4 4 3/4/5/6 3 6/8/10 6 6 6/8/10 Cooling channels IC HSC / HPC / MTC / TPC / PPC HPC HPC HPC HPC PPC PPC HPC Coating TiAlN TiSiN TiAlN TiAlN TiAlN TiAlN TiAlN AlTiN TiAlN TiAlN TiAlN TiAlN Type of shank HB HB HA HA HA HA HA HA HB HB HB HB Secondary application to DIN ISO 513 PMK NPMSK PMK PMK NPMK NPMK NPM NPMK PM P P P Page 528 529 542 547 549 550 551 552 553 553 554 554 426
