Режущие и зажимные инструменты Hoffmann Group 2026 - страница 424

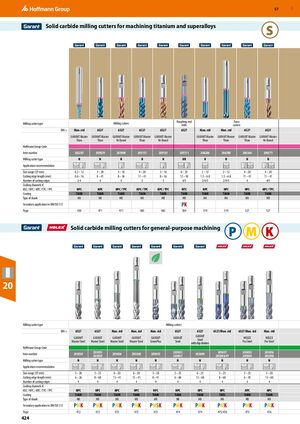

GBP 57 Solid carbide milling cutters for machining titanium and superalloys Roughing end Torus Milling cutter type Milling cutters mills cutters DIN > Man. std 6527 6527 6527 6527 6527 Man. std Man. std 6527 6527 GARANT Master GARANT Master GARANT Master GARANT Master GARANT Master GARANT Master GARANT Master GARANT Master GARANT Master ­Titan ­Titan Ni-Based ­Titan Ni-Based ­Titan ­Titan ­Titan Ni-Based Hoffmann Group Code Item number 202287 203029 203048 203157 203161 205711 206286 206288 206364 206371 Milling cutter type N N N N N HR N N N N Application recommendation Size range (⌀ mm) 0.2 – 12 3 – 20 3 – 16 4 – 20 3 – 16 6 – 25 2 – 12 2 – 12 4 – 20 4 – 20 Cutting edge length (mm) 0.6 – 16 8 – 41 8 – 36 11 – 41 8 – 36 12 – 50 1.5 – 6.8 1.5 – 6.8 11 – 41 11 – 41 Number of cutting edges 2-4 4 4 5 5 4/5 2/4/5 2/4/5 4 4/5 Cooling channels IC HSC / HPC / MTC / TPC / PPC HPC HPC HPC / TPC HPC / TPC HPC / TPC MTC HPC HPC HPC HPC / TPC Coating TiAIN TiAIN TiAIN TiAIN TiAIN TiAIN TiAIN TiAIN TiAIN TiAIN Type of shank HA HA HB HA HB HB HA HA HA HB Secondary application to DIN ISO 513 PK Page 450 471 471 483 483 504 519 519 527 527 Solid carbide milling cutters for general-purpose machining 20 Milling cutter type Milling cutters DIN > 6527 6527 Man. std Man. std Man. std 6527 6527 6527/Man. std 6527/Man. std Man. std GARANT GARANT GARANT GARANT GARANT GARANT GARANT HOLEX HOLEX Steel Master Steel Master Steel Master Steel Master Steel GreenPlus Steel Pro Steel Pro Steel with chip dividers Hoffmann Group Code 203035 203053 203037 203052 203056 Item number 203034 203036 203038 203055 203049 203039 203057 203044/47 203054 203058 Milling cutter type N N N N N N N N N N Application recommendation Size range (⌀ mm) 3 – 20 3 – 25 6 – 20 6 – 20 3 – 20 3 – 25 6 – 25 3 – 25 3 – 25 5 – 20 Cutting edge length (mm) 6 – 26 8 – 68 13 – 41 13 – 41 8 – 41 6 – 68 13 – 68 8 – 68 6 – 45 13 – 60 Number of cutting edges 4 4 4 4 4 4 4 4 4 4 Cooling channels IC HSC / HPC / MTC / TPC / PPC HPC HPC HPC HPC HPC HPC HPC HPC HPC HPC Coating TiAIN TiAIN TiAIN TiAIN TiAIN TiAIN TiAIN TiXSi TiAIN TiAIN Type of shank HB HB HB HB HB HB HB HB HB HB Secondary application to DIN ISO 513 PMK PMK PMK PMK PMSK PMK PMK PMK PMK PMK Page 472 472 472 472 473 474 474 475/476 475 476 424
