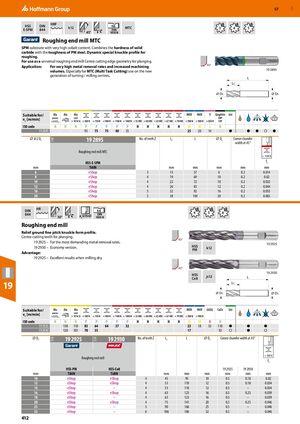

GBP 57 HRF HSS DIN k12 h6 MTC E-SPM 844 DIN 3 4 5 45° 1835 B Roughing end mill MTC SPM substrate with very high cobalt content. Combines the hardness of solid carbide with the toughness of PM steel. Dynamic special knuckle profile for roughing. For use as a universal roughing end mill Centre cutting edge geometry for plunging. 45° Application: For very high metal removal rates and increased machining volumes. Especially for MTC (Multi Task Cutting) use on the new 19 2895 generation of turning / milling centres. L LC ⌀ DC ⌀ DS Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M S N ​ ​ ​ ​ ​ ​ 19 2895 95 75 75 40 35 25 20 14 ● ● ● ○ ● ⌀ k12 DC 19 2895 No. of teeth Z Lc L ⌀ Ds Corner chamfer 11W width at 45° Roughing end mill MTC < 1100 N HSS-E-SPM fz mm TiAlN ​ mm mm mm mm mm 6 eShop 3 13 57 6 0.2 0.014 8 eShop 4 19 69 10 0.2 0.02 10 eShop 4 22 72 10 0.2 0.032 12 eShop 4 26 83 12 0.2 0.044 16 eShop 5 32 92 16 0.2 0.053 20 eShop 5 38 104 20 0.2 0.065 HR DIN h6 844 DIN 4 5 6 30° ae 0.15×D 1835 B ​Roughing end mill Relief ground fine pitch knuckle form profile. Centre cutting teeth for plunging. 45° 19 2925 – For the most demanding metal removal rates. 19 2925 19 2930 – Economy version. HSS k12 PM Advantage: 19 2925 – Excellent results when milling dry. 45° 19 2930 HSS js12 Co8 L 19 LC ⌀ DC ⌀ DS Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M K N ​ ​ ​ ​ ​ ​ 19 2925 138 110 83 64 64 37 32 23 18 55 110 ● ● ● 19 2930 120 101 78 55 17 92 ○ ● ○ ⌀ DC 19 2925 19 2930 No. of teeth Z Lc L ⌀ Ds Corner chamfer width at 45° 12W 11W < 900 N Roughing end mill fz HSS-PM HSS-Co8 ​ ​ ​ ​ 19 2925 19 2930 ​ mm TiAlN TiAlN ​ mm mm mm mm mm mm 10 eShop eShop 4 45 95 10 0.5 0.18 0.02 12 eShop eShop 4 53 110 12 0.5 0.18 0.034 14 eShop – 4 53 110 12 0.5 – 0.034 16 eShop eShop 4 63 123 16 0.5 0.25 0.039 18 eShop – 4 63 123 16 0.5 – 0.039 20 eShop eShop 4 75 141 20 0.5 0.25 0.046 25 eShop – 5 90 166 25 0.5 – 0.046 32 eShop – 6 106 186 32 0.5 – 0.046 412
