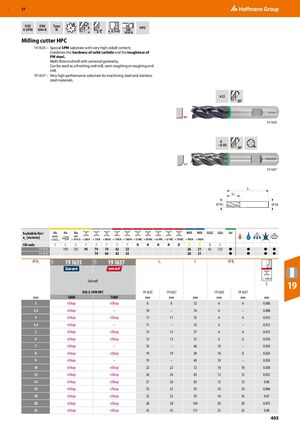

GBP 57 HSS DIN Type h6 HPC E-SPM 844 B N 4 DIN ≠ ae 0.5×D 1835 B ​Milling cutter HPC 19 1635 – Special SPM substrate with very high cobalt content. Combines the hardness of solid carbide and the toughness of PM steel. Multi-flute end mill with universal geometry. Can be used as a finishing end mill, semi-roughing or roughing end mill. 19 1637 – Very high-performance substrate for machining steel and stainless steel materials. k12 30° 90° 19 1635 0 −0.03 38° 45° 19 1637 L LC ⌀ DC ⌀ DS Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M K N ​ ​ ​ ​ ​ ​ 19 1635 159 125 95 74 74 42 32 26 21 63 125 ● ● ● ● 19 1637 74 64 42 32 26 21 ● ● ● ● ⌀ DC 19 1635 19 1637 Lc L ⌀ Ds 12W 11W < 1100 N End mill HSS-E-SPM HPC 19 1635 19 1637 ​ 19 1635 19 1637 fz ​ 19 mm TiAlN TiAlN mm mm mm mm mm mm 3 eShop eShop 8 8 52 6 6 0.008 3,5 eShop – 10 – 54 6 – 0.008 4 eShop eShop 11 11 55 6 6 0.012 4,5 eShop – 11 – 55 6 – 0.012 5 eShop eShop 13 13 57 6 6 0.012 6 eShop eShop 13 13 57 6 6 0.016 7 eShop – 16 – 66 10 – 0.016 8 eShop eShop 19 19 69 10 8 0.024 9 eShop – 19 – 69 10 – 0.024 10 eShop eShop 22 22 72 10 10 0.038 12 eShop eShop 26 26 83 12 12 0.052 14 eShop eShop 27 26 83 12 12 0.06 16 eShop eShop 32 32 92 16 16 0.066 18 eShop eShop 32 32 92 16 16 0.07 20 eShop eShop 38 38 104 20 20 0.075 25 eShop eShop 45 45 121 25 25 0.08 405
