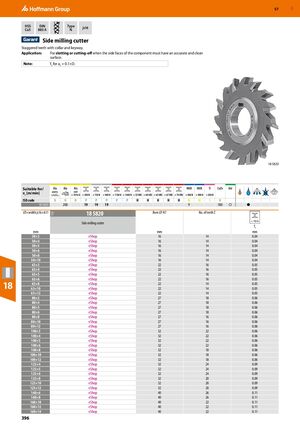

GBP 57 HSS DIN Type js16 Co5 885 A N Side milling cutter Staggered teeth with collar and keyway. Application: For slotting or cutting-off when the side faces of the component must have an accurate and clean surface. Note: fz for ae = 0.1×D. 18 5820 Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M S N ​ ​ ​ ​ ​ ​ 18 5820 200 19 19 19 9 180 ○ ● ⌀×width js16×k11 18 5820 Bore ⌀ H7 No. of teeth Z 11U < 750 N Side milling cutter fz mm mm ​ mm 50×3 eShop 16 14 0.04 50×4 eShop 16 14 0.04 50×5 eShop 16 14 0.04 50×6 eShop 16 14 0.04 50×8 eShop 16 14 0.04 50×10 eShop 16 14 0.04 63×3 eShop 22 16 0.05 63×4 eShop 22 16 0.05 63×5 eShop 22 16 0.05 63×6 eShop 22 16 0.05 18 63×8 63×10 eShop eShop 22 22 14 14 0.05 0.05 63×12 eShop 22 14 0.05 80×3 eShop 27 18 0.06 80×4 eShop 27 18 0.06 80×5 eShop 27 18 0.06 80×6 eShop 27 18 0.06 80×8 eShop 27 16 0.06 80×10 eShop 27 16 0.06 80×12 eShop 27 16 0.06 100×3 eShop 32 22 0.06 100×4 eShop 32 22 0.06 100×5 eShop 32 22 0.06 100×6 eShop 32 22 0.06 100×8 eShop 32 18 0.06 100×10 eShop 32 18 0.06 100×12 eShop 32 18 0.06 125×4 eShop 32 24 0.09 125×5 eShop 32 24 0.09 125×6 eShop 32 24 0.09 125×8 eShop 32 20 0.09 125×10 eShop 32 20 0.09 125×12 eShop 32 20 0.09 160×6 eShop 40 26 0.11 160×8 eShop 40 26 0.11 160×10 eShop 40 22 0.11 160×12 eShop 40 22 0.11 160×14 eShop 40 22 0.11 396
