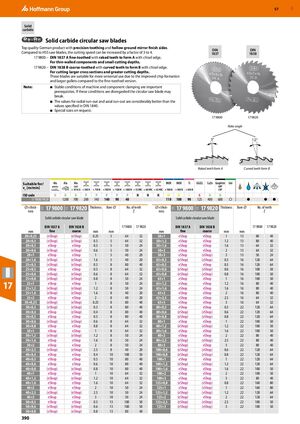

GBP 57 Solid carbide Solid carbide circular saw blades Top quality German product with precision toothing and hollow ground mirror finish sides. DIN DIN Compared to HSS saw blades, the cutting speed can be increased by a factor of 3 to 4. 1837 1838 17 9800 – DIN 1837 A fine-toothed with raked teeth to form A with chisel edge. For thin-walled components and small cutting depths. 17 9820 – DIN 1838 B coarse-toothed with curved teeth to form B with chisel edge. For cutting larger cross sections and greater cutting depths. These blades are suitable for more universal use due to the improved chip formation and larger gullets compared to the fine-toothed version. Note: ■ Stable conditions of machine and component clamping are important prerequisites. If these conditions are disregarded the circular saw blade may break. ■ The values for radial run-out and axial run-out are considerably better than the values specified in DIN 1840. ■ Special sizes on request. 17 9800​ 17 9820 Rake angle 3° 12° Raked teeth form A Curved teeth form B Suitable for/ vc [m/min] ISO code N N N P P P P P H H H M M S K N N ​ ​ ​ ​ ​ ​ 17 9800/​9820 1200 700 200 140 140 90 40 110 100 90 125 400 600 ○ ● ● ● ⌀×thick- 17 9800 17 9820 Thickness Bore ⌀ No. of teeth ⌀×thick- 17 9800 17 9820 Thickness Bore ⌀ No. of teeth 17C 17C 17C 17C ness Z ness Z Solid carbide circular saw blade Solid carbide circular saw blade DIN 1837 A DIN 1838 B ​ ​ 17 9800 17 9820 DIN 1837 A DIN 1838 B ​ ​ 17 9800 17 9820 mm fine coarse mm mm ​ ​ mm fine coarse mm mm ​ ​ 20×0,25 (eShop) (eShop) 0.25 5 64 32 50×1 eShop eShop 1 13 80 40 20×0,3 (eShop) (eShop) 0.3 5 64 32 50×1,2 eShop eShop 1.2 13 80 40 20×0,5 eShop eShop 0.5 5 50 24 50×1,6 eShop eShop 1.6 13 64 32 20×0,6 (eShop) (eShop) 0.6 5 50 24 50×2 eShop eShop 2 13 64 32 20×1 eShop eShop 1 5 40 20 50×3 eShop (eShop) 3 13 50 24 20×1,6 (eShop) (eShop) 1.6 5 40 20 63×0,3 (eShop) (eShop) 0.3 16 128 64 25×0,3 (eShop) (eShop) 0.3 8 80 40 63×0,5 eShop eShop 0.5 16 128 64 25×0,5 eShop eShop 0.5 8 64 32 63×0,6 (eShop) (eShop) 0.6 16 100 50 25×0,6 (eShop) (eShop) 0.6 8 64 32 63×0,8 (eShop) (eShop) 0.8 16 100 50 25×0,8 (eShop) (eShop) 0.8 8 50 24 63×1 eShop eShop 1 16 100 50 17 25×1 25×1,2 eShop (eShop) eShop (eShop) 1 1.2 8 8 50 50 24 24 63×1,2 63×1,6 eShop eShop eShop eShop 1.2 1.6 16 16 80 80 40 40 25×1,6 (eShop) (eShop) 1.6 8 40 20 63×2 eShop eShop 2 16 80 40 25×2 eShop eShop 2 8 40 20 63×2,5 eShop eShop 2.5 16 64 32 30×0,25 (eShop) (eShop) 0.25 8 80 40 63×3 eShop eShop 3 16 64 32 30×0,3 (eShop) (eShop) 0.3 8 80 40 80×0,5 eShop eShop 0.5 22 128 64 30×0,4 eShop (eShop) 0.4 8 80 40 80×0,6 (eShop) (eShop) 0.6 22 128 64 30×0,5 eShop eShop 0.5 8 80 40 80×0,8 (eShop) (eShop) 0.8 22 128 64 30×0,6 (eShop) (eShop) 0.6 8 64 32 80×1 eShop eShop 1 22 100 50 30×0,8 eShop eShop 0.8 8 64 32 80×1,2 (eShop) (eShop) 1.2 22 100 50 30×1 eShop eShop 1 8 64 32 80×1,6 eShop eShop 1.6 22 100 50 30×1,2 (eShop) (eShop) 1.2 8 50 24 80×2 eShop eShop 2 22 80 40 30×1,6 eShop eShop 1.6 8 50 24 80×2,5 (eShop) (eShop) 2.5 22 80 40 30×2 eShop eShop 2 8 50 24 80×3 (eShop) eShop 3 22 80 40 30×2,5 (eShop) (eShop) 2.5 8 40 20 100×0,6 (eShop) (eShop) 0.6 22 128 64 40×0,4 eShop eShop 0.4 10 100 50 100×0,8 (eShop) (eShop) 0.8 22 128 64 40×0,5 eShop eShop 0.5 10 80 40 100×1 eShop eShop 1 22 128 64 40×0,6 eShop eShop 0.6 10 80 40 100×1,2 (eShop) (eShop) 1.2 22 128 64 40×0,8 (eShop) (eShop) 0.8 10 80 40 100×1,6 eShop eShop 1.6 22 100 50 40×1 eShop eShop 1 10 64 32 100×2 eShop eShop 2 22 100 50 40×1,2 (eShop) (eShop) 1.2 10 64 32 100×3 eShop eShop 3 22 80 40 40×1,6 eShop eShop 1.6 10 64 32 125×0,8 (eShop) (eShop) 0.8 22 160 80 40×2 eShop eShop 2 10 50 24 125×1 eShop (eShop) 1 22 160 80 40×2,5 (eShop) (eShop) 2.5 10 50 24 125×1,2 (eShop) (eShop) 1.2 22 128 64 40×3 eShop eShop 3 10 50 24 125×2 (eShop) eShop 2 22 128 64 50×0,5 eShop eShop 0.5 13 100 50 125×2,5 (eShop) (eShop) 2.5 22 100 50 50×0,6 (eShop) (eShop) 0.6 13 100 50 125×3 (eShop) (eShop) 3 22 100 50 50×0,8 (eShop) (eShop) 0.8 13 80 40 ​ ​ ​ ​ ​ ​ ​ 390
