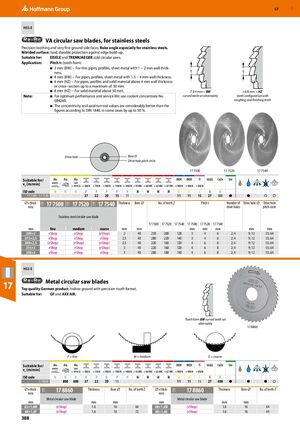

GBP 57 HSS-E VA circular saw blades, for stainless steels Precision toothing and very fine ground side faces. Rake angle especially for stainless steels. Nitrided surface: hard, durable protection against edge build-up. Suitable for: EISELE and TRENNJAEGER cold circular saws. Application: Pitch t: (tooth form) ■ 3 mm (BW) − For thin pipes, profiles, sheet metal with 1 − 2 mm wall thick- ness. t t ■ 4 mm (BW) − For pipes, profiles, sheet metal with 1.5 − 4 mm wall thickness. ■ 6 mm (HZ) − For pipes, profiles and solid material above 4 mm wall thickness or cross−section up to a maximum of. 50 mm. ■ 8 mm (HZ) − For solid material above 50 mm. T 3/4 mm = BW t 6/8 mm = HZ Note: ■ For optimum performance and service life: use coolant concentrate No. curved teeth set alternately tooth configuration with 084260. roughing and finishing teeth ■ The concentricity and axial run-out values are considerably better than the figures according to DIN 1840, in some cases by up to 50 %. Drive hole Bore ⌀ Drive hole pitch circle 17 7500 17 7520 17 7540 Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H M M S K N ​ ​ ​ ​ ​ ​ 17 7500–​17 7540 37 22 20 15 11 11 11 15 27 400 ● ● ○ ○ ⌀×thick- 17 7500 17 7520 17 7540 Thickness Bore ⌀ No. of teeth Z Pitch t Number of Drive hole ⌀ Drive hole 17B 17B 17B ness drive holes pitch circle Stainless steel circular saw blade ​ ​ 17 7500 17 7520 17 7540 17 7500 17 7520 17 7540 ​ ​ ​ mm fine medium coarse mm mm ​ ​ ​ mm mm mm ​ mm mm 250×2 eShop eShop (eShop) 2 40 250 200 128 3 4 6 2; 4 9; 12 55; 64 275×2,5 eShop eShop eShop 2.5 40 280 220 140 3 4 6 2; 4 9; 12 55; 64 300×2,5 (eShop) (eShop) (eShop) 2.5 40 220 160 120 4 6 8 2; 4 9; 12 55; 64 315×3 eShop eShop (eShop) 3 40 220 160 120 4 6 8 2; 4 9; 12 55; 64 350×3 eShop eShop eShop 3 40 280 180 140 4 6 8 2; 4 9; 12 55; 64 HSS-E Metal circular saw blades 17 Top quality German product, hollow ground with precision tooth format. Suitable for: GF and AXX AiR. Tooth form BW curved teeth set alternately 17 8860 F = fine M = medium G = coarse Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H M M S K N ​ ​ ​ ​ ​ ​ 17 8860 800 600 37 22 20 15 11 11 15 27 400 ● ● ● ○ ⌀×thick- 17 8860 Thickness Bore ⌀ No. of teeth Z ⌀×thick- 17 8860 Thickness Bore ⌀ No. of teeth Z 17B 17B ness ness Metal circular saw blade Metal circular saw blade mm mm mm ​ mm mm mm ​ 63×1,6M (eShop) 1.6 16 64 68×1,6M (eShop) 1.6 16 64 68×1,6F (eShop) 1.6 16 72 68×1,6G (eShop) 1.6 16 44 388
