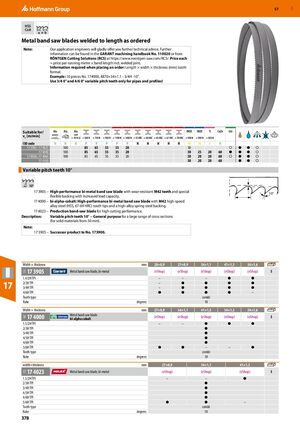

GBP 57 HSS Co8 a≠b ​Metal band saw blades welded to length as ordered Note: Our application engineers will gladly offer you further technical advice. Further information can be found in the GARANT machining handbook No. 110020 or from RÖNTGEN Cutting Solutions (RCS) at https://www.roentgen-saw.com/RCS/. Price each = price per running metre × band length incl. welded joint. Information required when placing an order: Length × width × thickness (mm) tooth format. Example: 10 pieces No. 174000, 4870×34×1.1 - 3/4H -10°. Use 3/4 0° and 4/6 0° variable pitch teeth only for pipes and profiles! Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M S N ​ ​ ​ ​ ​ ​ 17 3905–​17 4025 100 85 65 55 35 20 30 ○ ● ● ○ 17 4040 100 85 65 55 35 20 30 25 20 60 ● ● ● ○ 17 4050–​17 4064 100 85 65 55 35 20 30 20 20 60 ○ ● ● ○ 17 4105 30 20 20 60 ● ● ○ Variable pitch teeth 10° ​ 10° 17 3905 – High-performance bi-metal band saw blade with wear-resistant M42 teeth and special 10° flexible backing with increased load capacity. 17 4000 – bi-alpha-cobalt: High-performance bi-metal band saw blade with M42 high-speed alloy steel (HSS, 67-69 HRC) tooth tips and a high-alloy spring steel backing. 17 4023 – Production band-saw blade for high cutting performance. Description: Variable pitch teeth 10° − General purpose for a large range of cross sections (for solid materials from 50 mm). Note: 17 3905 – Successor product to No. 173900. Width × thickness mm 20×0,9 27×0,9 34×1,1 41×1,3 54×1,6 17 3905 Metal band saw blade, bi-metal (eShop) (eShop) (eShop) (eShop) (eShop) 5 11S 1.4/2H TPI – – – ● ● ​ 17 2/3H TPI 3/4H TPI 4/6H TPI – – ● ● ● ● ● ● ● ● ● ● ● ● – ​ ​ ​ Tooth type combi ​ Rake degrees 10 ​ Width × thickness mm 27×0,9 34×1,1 41×1,3 54×1,3 54×1,6 Metal band saw blade 17 4000 (eShop) (eShop) (eShop) (eShop) (eShop) 5 16F bi-alpha cobalt 1.5/2H TPI – – ● ● ● ​ 2/3H TPI ● ​ 3/4H TPI ● ​ 4/5H TPI ● ​ 4/6H TPI ● ​ 5/6H TPI ● ● – – ● ​ Tooth type combi ​ Rake degrees 10 ​ width×thickness mm 27×0,9 34×1,1 41×1,3 17 4023 Metal band saw blade, bi-metal (eShop) (eShop) (eShop) 5 12S 1.5/2H TPI – – ● ​ 2/3H TPI ● ​ 3/4H TPI ● ​ 4/5H TPI ● ​ 4/6H TPI ● ​ 5/6H TPI ● ● – ​ Tooth type combi ​ Rake degrees 10 ​ 378
