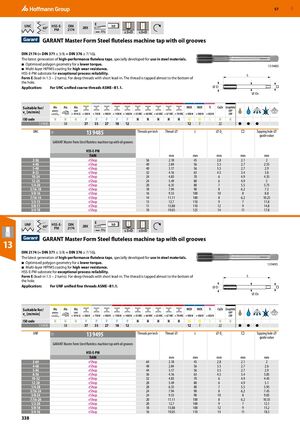

GBP 57 UNC E 60° HSS-E- DIN 2BX h9 PM 2174 1½ ≤3×D ≤3×D GARANT Master Form Steel fluteless machine tap with oil grooves DIN 2174 (≈ DIN 371 ≤ 3/8; ≈ DIN 376 ≥ 7/16). The latest generation of high-performance fluteless taps, specially developed for use in steel materials. ■ Optimised polygon geometry for a lower torque. ​ 13 9485 ■ Multi-layer HIPIMS coating for high wear resistance. HSS-E-PM substrate for exceptional process reliability. L Form E (lead-in 1.5 – 2 turns). For deep threads with short lead-in. The thread is tapped almost to the bottom of the hole. Application: For UNC unified coarse threads ASME−B1.1. ØD Ø DS Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M S N N ​ ​ ​ ​ ​ 13 9485 38 37 35 27 18 12 12 7 22 ● ● ● UNC 13 9485 Threads per inch Thread ⌀ L ⌀ Ds □ Tapping hole ⌀ 11I guide value GARANT Master Form Steel fluteless machine tap with oil grooves HSS-E-PM TiAlN ​ mm mm mm mm mm 2-56 eShop 56 2.18 45 2.8 2.1 2 4-40 eShop 40 2.84 56 3.5 2.7 2.55 5-40 eShop 40 3.17 56 3.5 2.7 2.9 8-32 eShop 32 4.16 63 4.5 3.4 3.8 10-24 eShop 24 4.83 70 6 4.9 4.35 12-24 eShop 24 5.49 80 6 4.9 5 1/4-20 eShop 20 6.35 80 7 5.5 5.75 5/16-18 eShop 18 7.94 90 8 6.2 7.3 3/8-16 eShop 16 9.53 100 10 8 8.8 7/16-14 eShop 14 11.11 100 8 6.2 10.25 1/2-13 eShop 13 12.7 110 9 7 11.8 5/8-11 eShop 11 15.88 110 12 9 14.8 3/4-10 eShop 10 19.05 125 14 11 17.8 UNF E 60° HSS-E- DIN 2BX h9 PM 2174 1½ ≤3×D ≤3×D GARANT Master Form Steel fluteless machine tap with oil grooves 13 DIN 2174 (≈ DIN 371 ≤ 3/8; ≈ DIN 376 ≥ 7/16). The latest generation of high-performance fluteless taps, specially developed for use in steel materials. ■ Optimised polygon geometry for a lower torque. ​ 13 9495 ■ Multi-layer HIPIMS coating for high wear resistance. HSS-E-PM substrate for exceptional process reliability. Form E (lead-in 1.5 – 2 turns). For deep threads with short lead-in. The thread is tapped almost to the bottom of L the hole. Application: For UNF unified fine threads ASME−B1.1. ØD Ø DS Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M S N N ​ ​ ​ ​ ​ 13 9495 38 37 35 27 18 12 12 7 22 ● ● ● UNF 13 9495 Threads per inch Thread ⌀ L ⌀ Ds □ Tapping hole ⌀ 11I guide value GARANT Master Form Steel fluteless machine tap with oil grooves HSS-E-PM TiAlN ​ mm mm mm mm mm 2-64 eShop 64 2.18 45 2.8 2.1 2 4-48 eShop 48 2.84 56 3.5 2.7 2.6 5-44 eShop 44 3.17 56 3.5 2.7 2.9 8-36 eShop 36 4.16 63 4.5 3.4 3.85 10-32 eShop 32 4.83 70 6 4.9 4.45 12-28 eShop 28 5.49 80 6 4.9 5.1 1/4-28 eShop 28 6.35 80 7 5.5 5.95 5/16-24 eShop 24 7.94 90 8 6.2 7.45 3/8-24 eShop 24 9.53 90 10 8 9.05 7/16-20 eShop 20 11.11 100 8 6.2 10.55 1/2-20 eShop 20 12.7 100 9 7 12.1 5/8-18 eShop 18 15.88 100 12 9 15.2 3/4-16 eShop 16 19.05 110 14 11 18.3 338
