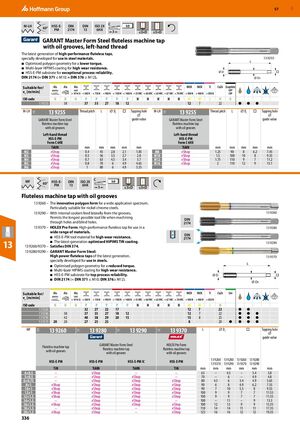

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 336

GBP 57 M-LH C 60° HSS-E- DIN DIN ISO 2X h9 PM 2174 13 6HX 3 ≤3×D ≤3×D GARANT Master Form Steel fluteless machine tap with oil grooves, left-hand thread The latest generation of high-performance fluteless taps, specially developed for use in steel materials. 13 9255 L ■ Optimised polygon geometry for a lower torque. ■ Multi-layer HIPIMS coating for high wear resistance. ■ HSS-E-PM substrate for exceptional process reliability. ØD DIN 2174 (≈ DIN 371 ≤ M10; ≈ DIN 376 ≥ M12). Ø DS Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M S N N ​ ​ ​ ​ ​ 13 9255 38 37 35 27 18 12 12 7 22 ● ● ● M-LH 13 9255 Thread pitch L ⌀ Ds □ Tapping hole M-LH 13 9255 Thread pitch L ⌀ Ds □ Tapping hole 11I 11I ⌀ ⌀ GARANT Master Form Steel guide value GARANT Master Form Steel guide value fluteless machine tap fluteless machine tap with oil grooves with oil grooves Left-hand thread Left-hand thread HSS-E-PM HSS-E-PM Form C 6HX Form C 6HX TiAlN mm mm mm mm mm TiAlN mm mm mm mm mm M2 eShop 0.4 45 2.8 2.1 1.85 M8 eShop 1.25 90 8 6.2 7.45 M3 eShop 0.5 56 3.5 2.7 2.8 M10 eShop 1.5 100 10 8 9.35 M4 eShop 0.7 63 4.5 3.4 3.7 M12 eShop 1.75 110 9 7 11.2 M5 eShop 0.8 70 6 4.9 4.65 M16 eShop 2 110 12 9 15.1 M6 eShop 1 80 6 4.9 5.55 ​ ​ ​ ​ ​ ​ ​ MF C 60° HSS-E- DIN ISO 2X h9 PM 13 6HX 3 ≤3×D ≤3×D ​Fluteless machine tap with oil grooves 13 9260 – The innovative polygon form for a wide application spectrum. Particularly suitable for nickel-chrome steels. 13 9290 – With internal coolant feed laterally from the grooves. 13 9260 Permits the longest possible tool life when machining DIN through holes and blind holes. 2174 13 9370 – HOLEX Pro Form: High-performance fluteless tap for use in a 13 9280 wide range of materials. DIN ■ HSS-E-PM tool material for high wear resistance. 2174 13 ■ The latest-generation optimised HiPIMS TiN coating. 13 9290 13 9260/9370 – Satisfies DIN 374. 13 9280/9290 – GARANT Master Form Steel: High power fluteless taps of the latest generation, 13 9370 specially developed for use in steels. L ■ Optimised polygon geometry for a reduced torque. ■ Multi-layer HIPIMS coating for high wear resistance. ■ HSS-E-PM substrate for top process reliability. ØD ■ DIN 2174 (≈ DIN 371 ≤ M10; DIN 376≥ M12). Ø DS Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M S N ​ ​ ​ ​ ​ ​ 13 9260 32 27 22 17 12 7 22 ● ● 13 9280 38 37 35 27 18 12 12 7 22 ● ● ● 13 9290 42 40 38 29 20 15 15 8 25 ● ● ● 13 9370 20 20 27 25 25 8 20 ● ● ● ● MF 13 9260 13 9280 13 9290 13 9370 L ⌀ Ds □ Tapping hole 11H 12I 11I 11I ⌀ guide value GARANT Master Form Steel HOLEX Pro Form Fluteless machine tap fluteless machine tap fluteless machine tap with oil grooves with oil grooves with oil grooves ​ 13 9260 13 9280 13 9260 13 9280 ​ HSS-E-PM HSS-E-PM HSS-E-PM IC HSS-E-PM 13 9370 13 9290 13 9370 13 9290 TiN TiAlN TiAlN TiN mm mm mm mm mm mm 4×0,5 – eShop – – 63 – 4.5 – 3.4 3.8 5×0,5 – eShop eShop – 70 – 6 – 4.9 4.8 6×0,75 – eShop eShop eShop 80 4.5 6 3.4 4.9 5.65 8×1 eShop eShop eShop eShop 90 6 8 4.9 6.2 7.55 10×1 eShop eShop eShop eShop 90 7 10 5.5 8 9.55 12×1 eShop eShop eShop eShop 100 9 9 7 7 11.55 12×1,5 eShop eShop eShop eShop 100 9 9 7 7 11.35 14×1,5 – eShop eShop – 100 – 11 – 9 13.3 16×1,5 eShop eShop eShop eShop 100 12 12 9 9 15.35 18×1,5 – eShop – eShop 110 14 14 11 11 17.35 20×1,5 eShop eShop – eShop 125 16 16 12 12 19.35 336
