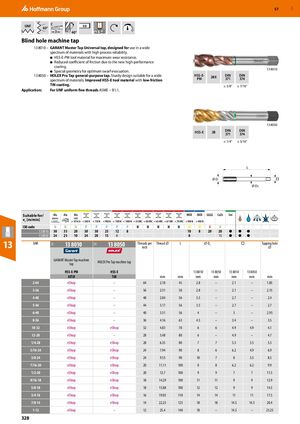

GBP 57 UNF C 60° h9 3 40° ≤2.5×D ​Blind hole machine tap 13 8010 – GARANT Master Tap Universal tap, designed for use in a wide spectrum of materials with high process reliability. ■ HSS-E-PM tool material for maximum wear resistance. ■ Reduced coefficient of friction due to the new high-performance coating. 13 8010 ■ Special geometry for optimum swarf evacuation. 13 8050 – HOLEX Pro Tap general-purpose tap. Sturdy design suitable for a wide HSS-E- 2BX DIN DIN spectrum of materials. Improved HSS-E tool material with low-friction PM 371 374 TiN coating. ≤ 3/8“ ≥ 7/16“ Application: For UNF uniform fine threads ASME − B1.1. 13 8050 HSS-E 2B DIN DIN 371 374 ≤ 1/4“ ≥ 5/16“ L ØD Ø DS Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M K N ​ ​ ​ ​ ​ ​ 13 8010 30 35 20 30 30 25 12 8 10 8 20 20 ● ● ● 13 8050 24 25 10 24 20 15 8 8 15 ● ● ● 13 UNF 13 8010 13 8050 Threads per Thread ⌀ L ⌀ Ds □ Tapping hole 12I 11I inch ⌀ GARANT Master Tap machine HOLEX Pro Tap machine tap tap HSS-E-PM HSS-E ​ ​ ​ 13 8010 13 8050 13 8010 13 8050 ​ AlTiX TiN ​ mm mm mm mm mm mm mm 2-64 eShop – 64 2.18 45 2.8 – 2.1 – 1.85 3-56 eShop – 56 2.51 50 2.8 – 2.1 – 2.15 4-48 eShop – 48 2.84 56 3.5 – 2.7 – 2.4 5-44 eShop – 44 3.17 56 3.5 – 2.7 – 2.7 6-40 eShop – 40 3.51 56 4 – 3 – 2.95 8-36 eShop – 36 4.16 63 4.5 – 3.4 – 3.5 10-32 eShop eShop 32 4.83 70 6 6 4.9 4.9 4.1 12-28 eShop – 28 5.48 80 6 – 4.9 – 4.7 1/4-28 eShop eShop 28 6.35 80 7 7 5.5 5.5 5.5 5/16-24 eShop eShop 24 7.94 90 8 6 6.2 4.9 6.9 3/8-24 eShop eShop 24 9.53 90 10 7 8 5.5 8.5 7/16-20 eShop eShop 20 11.11 100 8 8 6.2 6.2 9.9 1/2-20 eShop eShop 20 12.7 100 9 9 7 7 11.5 9/16-18 eShop eShop 18 14.29 100 11 11 9 9 12.9 5/8-18 eShop eShop 18 15.88 100 12 12 9 9 14.5 3/4-16 eShop eShop 16 19.05 110 14 14 11 11 17.5 7/8-14 eShop eShop 14 22.23 125 18 18 14.5 14.5 20.4 1-12 eShop – 12 25.4 140 18 – 14.5 – 23.25 328
