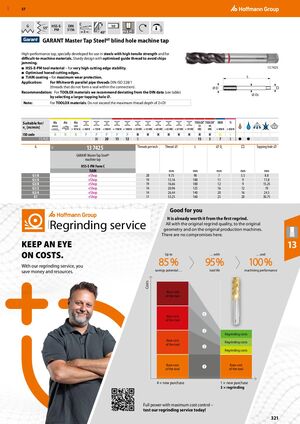

GBP 57 G C 55° HSS-E- DIN h9 PM 5156 3 40° ≤2.5×D GARANT Master Tap SteelHT blind hole machine tap High-performance tap, specially developed for use in steels with high tensile strength and for difficult-to-machine materials. Sturdy design with optimised guide thread to avoid chips jamming. ■ HSS-E-PM tool material – for very high cutting edge stability. 13 7425 ■ Optimised honed cutting edges. ■ TiAlN coating – for maximum wear protection. L Application: For Whitworth parallel pipe threads DIN-ISO 228/1 (threads that do not form a seal within the connection). ØD Recommendation: For TOOLOX materials we recommend deviating from the DIN data (see table) Ø DS by selecting a larger tapping hole ⌀. Note: For TOOLOX materials: Do not exceed the maximum thread depth of 2×D! Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H H H H M S ​ ​ ​ ​ ​ 13 7425 30 20 15 12 5 15 5 7 5 ● ● G 13 7425 Threads per inch Thread ⌀ L ⌀ Ds □ Tapping hole ⌀ 11I GARANT Master Tap SteelHT machine tap HSS-E-PM Form C TiAlN ​ mm mm mm mm mm G1/8 eShop 28 9.73 90 7 5.5 8.8 G1/4 eShop 19 13.16 100 11 9 11.8 G3/8 eShop 19 16.66 100 12 9 15.25 G1/2 eShop 14 20.96 125 16 12 19 G3/4 eShop 14 26.44 140 20 16 24.5 G1 eShop 11 33.25 160 25 20 30.75 Good for you It is already worth it from the first regrind. Nachschleifservice Regrinding service All with the original regrind quality, to the original geometry and on the original production machines. There are no compromises here. KEEP AN EYE 13 ON COSTS. Up to … with … and With our regrinding service, you savings potential … tool life machining performance save money and resources. Costs Base cost of the tool Base cost of the tool Regrinding costs Base cost Regrinding costs of the tool Regrinding costs Base cost Base cost of the tool of the tool 4 × new purchase 1 × new purchase 3 × regrinding Full power with maximum cost control – test our regrinding service today! 321
