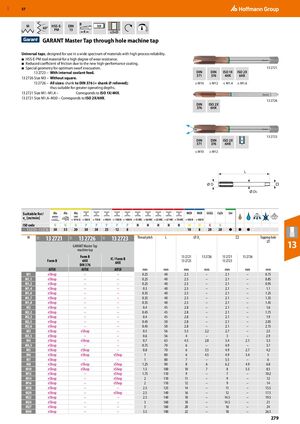

GBP 57 M B 60° HSS-E- DIN h9 PM 13 4 ≤3×D GARANT Master Tap through hole machine tap Universal taps, designed for use in a wide spectrum of materials with high process reliability. ■ HSS-E-PM tool material for a high degree of wear resistance. ■ Reduced coefficient of friction due to the new high-performance coating. ■ Special geometry for optimum swarf evacuation. 13 2721 13 2723 – With internal coolant feed. DIN DIN ISO 1X ISO 2X 371 376 4HX 6HX 13 2726 Size M3 – Without square. 13 2726 – All sizes: shank to DIN 376 (= shank ⌀ relieved); ≤ M10 ≥ M12 ≤ M1.4 ≥ M1.6 thus suitable for greater operating depths. 13 2721 Size M1–M1,4 – Corresponds to ISO 1X/4HX. 13 2721 Size M1,6–M30 – Corresponds to ISO 2X/6HX. 13 2726 DIN ISO 2X 376 6HX 13 2723 DIN DIN ISO 2X 371 376 6HX ≤ M10 ≥ M12 L ØD Ø DS Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M K N ​ ​ ​ ​ ​ ​ 13 2721–​13 2726 30 35 20 30 30 25 12 8 10 8 20 20 ● ● ● M 13 2721 13 2726 13 2723 Thread pitch L ⌀ Ds □ Tapping hole 11I 11I 11I ⌀ GARANT Master Tap machine tap 13 Form B ​ ​ 13 2721 13 2726 13 2721 13 2726 ​ IC / Form B Form B 6HX 13 2723 13 2723 6HX DIN 376 AlTiX AlTiX AlTiX mm mm mm mm mm mm mm M1 eShop – – 0.25 40 2.5 – 2.1 – 0.75 M1,1 eShop – – 0.25 40 2.5 – 2.1 – 0.85 M1,2 eShop – – 0.25 40 2.5 – 2.1 – 0.95 M1,4 eShop – – 0.3 40 2.5 – 2.1 – 1.1 M1,6 eShop – – 0.35 40 2.5 – 2.1 – 1.25 M1,7 eShop – – 0.35 40 2.5 – 2.1 – 1.35 M1,8 eShop – – 0.35 40 2.5 – 2.1 – 1.45 M2 eShop – – 0.4 45 2.8 – 2.1 – 1.6 M2,2 eShop – – 0.45 45 2.8 – 2.1 – 1.75 M2,3 eShop – – 0.4 45 2.8 – 2.1 – 1.9 M2,5 eShop – – 0.45 50 2.8 – 2.1 – 2.05 M2,6 eShop – – 0.45 50 2.8 – 2.1 – 2.15 M3 eShop eShop – 0.5 56 3.5 2.2 2.7 – 2.5 M3,5 eShop – – 0.6 56 4 – 3 – 2.9 M4 eShop eShop – 0.7 63 4.5 2.8 3.4 2.1 3.3 M4,5 eShop – – 0.75 70 6 – 4.9 – 3.7 M5 eShop eShop – 0.8 70 6 3.5 4.9 2.7 4.2 M6 eShop eShop eShop 1 80 6 4.5 4.9 3.4 5 M7 eShop – – 1 80 7 – 5.5 – 6 M8 eShop eShop eShop 1.25 90 8 6 6.2 4.9 6.8 M10 eShop eShop eShop 1.5 100 10 7 8 5.5 8.5 M12 eShop – eShop 1.75 110 9 – 7 – 10.2 M14 eShop – eShop 2 110 11 – 9 – 12 M16 eShop – eShop 2 110 12 – 9 – 14 M18 eShop – – 2.5 125 14 – 11 – 15.5 M20 eShop – eShop 2.5 140 16 – 12 – 17.5 M22 eShop – – 2.5 140 18 – 14.5 – 19.5 M24 eShop – – 3 160 18 – 14.5 – 21 M27 eShop – – 3 160 20 – 16 – 24 M30 eShop – – 3.5 180 22 – 18 – 26.5 279
