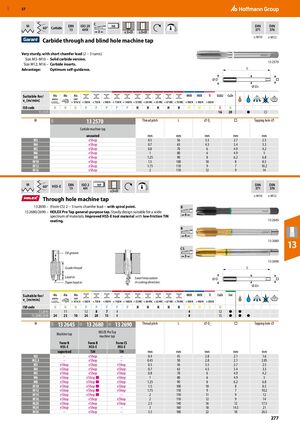

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 277

GBP 57 M C 60° Carbide DIN ISO 2X h6 DIN DIN 13 6HX 371 376 3 ≤3×D ≤3×D ≤ M10 ≥ M12 Carbide through and blind hole machine tap Very sturdy, with short chamfer lead (2 − 3 turns). Size M3–M10 – Solid carbide version. 13 2570 Size M12; M16 – Carbide inserts. Advantage: Optimum self-guidance. L ØD Ø DS Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M S K N ​ ​ ​ ​ ​ 13 2570 16 20 ● ○ M 13 2570 Thread pitch L ⌀ Ds □ Tapping hole ⌀ 11H Carbide machine tap uncoated mm mm mm mm mm M3 eShop 0.5 56 3.5 2.7 2.5 M4 eShop 0.7 63 4.5 3.4 3.3 M5 eShop 0.8 70 6 4.9 4.2 M6 eShop 1 80 6 4.9 5 M8 eShop 1.25 90 8 6.2 6.8 M10 eShop 1.5 100 10 8 8.5 M12 eShop 1.75 110 9 7 10.2 M16 eShop 2 110 12 9 14 M HSS-E DIN ISO 2 h9 DIN DIN 60° 13 6H 371 376 ≤3×D ≤ M10 ≥ M12 Through hole machine tap 13 2690 – (Form CS) 2 − 3 turns chamfer lead − with spiral point. B 13 2680/2690 – HOLEX Pro Tap general-purpose tap. Sturdy design suitable for a wide spectrum of materials. Improved HSS-E tool material with low-friction TiN 4 coating. ​ 13 2645 B 4 ​ 13 2680 CS 13 Oil groove 3 ​ 13 2690 Guide thread L Lead-in Swarf evacuation ØD Taper lead-in in cutting direction. Ø DS Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M S N ​ ​ ​ ​ ​ ​ 13 2645 11 12 8 7 4 4 12 ● ● 13 2680/​2690 24 25 10 24 20 15 8 8 15 ● ● ● M 13 2645 13 2680 13 2690 Thread pitch L ⌀ Ds □ Tapping hole ⌀ 12H 12I 12I HOLEX Pro Tap Machine tap machine tap Form B Form B Form CS HSS-E HSS-E HSS-E vaporised TiN TiN mm mm mm mm mm M2 – eShop – 0.4 45 2.8 2.1 1.6 M2,5 – eShop – 0.45 50 2.8 2.1 2.05 M3 eShop eShop eShop 0.5 56 3.5 2.7 2.5 M4 eShop eShop eShop 0.7 63 4.5 3.4 3.3 M5 eShop eShop eShop 0.8 70 6 4.9 4.2 M6 eShop eShop ■ eShop 1 80 6 4.9 5 M8 eShop eShop ■ eShop 1.25 90 8 6.2 6.8 M10 eShop eShop ■ eShop 1.5 100 10 8 8.5 M12 eShop eShop ■ eShop 1.75 110 9 7 10.2 M14 eShop eShop ■ – 2 110 11 9 12 M16 eShop eShop eShop 2 110 12 9 14 M20 eShop eShop eShop 2.5 140 16 12 17.5 M24 eShop eShop – 3 160 18 14.5 21 M30 – eShop – 3.5 180 22 18 26.5 277
