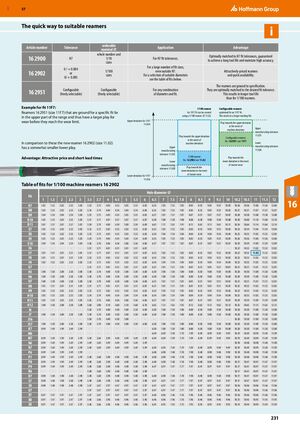

GBP 57 The quick way to suitable reamers orderable Article number Tolerance Application Advantage nominal ⌀ whole number and Optimally matched to H7 fit tolerances, guaranteed 16 2900 H7 1/10 sizes For H7 fit tolerances. to achieve a long tool life and maintain high accuracy. For a large number of fit sizes, 0 / + 0.004 1/100 even outside H7. Attractively-priced reamers 16 2902 or 0/ + 0.005 sizes For a selection of suitable diameters and quick availability. see the table of fits below. The reamers are ground to specification. Configurable Configurable For any combination They are optimally matched to the desired fit tolerance. 16 2951 (freely selectable) (freely selectable) of diameter and fit. This results in longer tool life than for 1/100 reamers. Example for fit 11F7: 1/100 reamer Configurable reamers Reamers 16 2951 (size 11F7) that are ground for a specific fit lie An 11F7 fit can be created optimised for an 11F7 fit. using a 1/100 reamer ⌀ 11.02. This results in a longer working life. in the upper part of the range and thus have a larger play for wear before they reach the wear limit. Upper deviation for 11F7 Play towards the upper deviation 11.034 in the event of machine deviation Upper manufacturing tolerance Play towards the upper deviation 11.031 Configurable reamers in the event of No. 16 2951 size 11F7 In comparison to these the new reamer 16 2902 (size 11.02) machine deviation Lower has a somewhat smaller lower play. Upper manufacturing tolerance manufacturing 11.026 tolerance 11.025 1/100 reamer Advantage: Attractive price and short lead times No. 16 2902 size 11.02 Play towards the Lower lower deviation in the event manufacturing of reamer wear tolerance 11.020 Play towards the lower deviation in the event of reamer wear Lower deviation for 11F7 11.016 Table of fits for 1/100 machine reamers 16 2902 Hole diameter ⌀ Fit 1 1.5 2 2.5 3 3.5 3.7 4 4.5 5 5.5 6 6.5 7 7.5 7.8 8 8.5 9 9.5 10 10.2 10.5 11 11.5 12 D7 D8 1.02 1.03 1.52 1.53 2.02 2.03 2.52 2.53 3.02 3.03 3.53 3.54 3.73 3.74 4.03 4.04 4.53 4.54 5.03 5.04 5.53 5.54 6.03 6.04 6.55 6.55 7.05 7.05 7.55 7.55 7.85 7.85 8.05 8.05 8.55 8.55 9.05 9.05 9.55 9.55 10.05 10.05 10.26 10.27 10.56 10.57 11.06 11.07 11.56 11.57 12.06 12.07 16 D9 1.04 1.54 2.04 2.54 3.04 3.55 3.75 4.05 4.55 5.05 5.55 6.05 6.57 7.07 7.57 7.87 8.07 8.57 9.07 9.57 10.07 10.28 10.58 11.08 11.58 12.08 D10 1.05 1.55 2.05 2.55 3.05 3.57 3.77 4.07 4.57 5.07 5.57 6.07 6.58 7.08 7.58 7.88 8.08 8.58 9.08 9.58 10.08 10.30 10.60 11.10 11.60 12.10 D11 1.07 1.57 2.07 2.57 3.07 3.59 3.79 4.09 4.59 5.09 5.59 6.09 6.61 7.11 7.61 7.91 8.11 8.61 9.11 9.61 10.11 10.34 10.64 11.14 11.64 12.14 E7 1.02 1.52 2.02 2.52 3.02 3.52 3.72 4.02 4.52 5.02 5.52 6.02 6.53 7.03 7.53 7.83 8.03 8.53 9.03 9.53 10.03 10.24 10.54 11.04 11.54 12.04 E8 1.02 1.52 2.02 2.52 3.02 3.53 3.73 4.03 4.53 5.03 5.53 6.03 6.54 7.04 7.54 7.84 8.04 8.54 9.04 9.54 10.04 10.25 10.55 11.05 11.55 12.05 E9 1.03 1.53 2.03 2.53 3.03 3.54 3.74 4.04 4.54 5.04 5.54 6.04 6.55 7.05 7.55 7.85 8.05 8.55 9.05 9.55 10.05 10.26 10.56 11.06 11.56 12.06 E10 1.04 1.54 2.04 2.54 3.04 3.56 3.76 4.06 4.56 5.06 5.56 6.06 6.57 7.07 7.57 7.87 8.07 8.57 9.07 9.57 10.07 10.29 10.59 11.09 11.59 12.09 F6 - - - - - 3.51 3.71 4.01 4.51 5.01 5.51 6.01 - - - - - - - - - 10.22 10.52 11.02 11.52 12.02 F7 1.01 1.51 2.01 2.51 3.01 3.51 3.71 4.01 4.51 5.01 5.51 6.01 6.52 7.02 7.52 7.82 8.02 8.52 9.02 9.52 10.02 10.22 10.52 11.02 11.52 12.02 F8 1.01 1.51 2.01 2.51 3.01 3.52 3.72 4.02 4.52 5.02 5.52 6.02 6.53 7.03 7.53 7.83 8.03 8.53 9.03 9.53 10.03 10.23 10.53 11.03 11.53 12.03 F9 1.02 1.52 2.02 2.52 3.02 3.53 3.73 4.03 4.53 5.03 5.53 6.03 6.54 7.04 7.54 7.84 8.04 8.54 9.04 9.54 10.04 10.25 10.55 11.05 11.55 12.05 G7 - - - - - 3.51 3.71 4.01 4.51 5.01 5.51 6.01 6.51 7.01 7.51 7.81 8.01 8.51 9.01 9.51 10.01 10.21 10.51 11.01 11.51 12.01 H5 1.00 1.50 2.00 2.50 3.00 3.50 3.70 4.00 4.50 5.00 5.50 6.00 6.50 7.00 7.50 7.80 8.00 8.50 9.00 9.50 10.00 10.20 10.50 11.00 11.50 12.00 H6 1.00 1.50 2.00 2.50 3.00 3.50 3.70 4.00 4.50 5.00 5.50 6.00 6.50 7.00 7.50 7.80 8.00 8.50 9.00 9.50 10.00 10.20 10.50 11.00 11.50 12.00 H7 1.00 1.50 2.00 2.50 3.00 3.50 3.70 4.00 4.50 5.00 5.50 6.00 6.51 7.01 7.51 7.81 8.01 8.51 9.01 9.51 10.01 10.21 10.51 11.01 11.51 12.01 H8 1.01 1.51 2.01 2.51 3.01 3.51 3.71 4.01 4.51 5.01 5.51 6.01 6.51 7.01 7.51 7.81 8.01 8.51 9.01 9.51 10.01 10.22 10.52 11.02 11.52 12.02 H9 1.02 1.52 2.02 2.52 3.02 3.52 3.72 4.02 4.52 5.02 5.52 6.02 6.53 7.03 7.53 7.83 8.03 8.53 9.03 9.53 10.03 10.23 10.53 11.03 11.53 12.03 H10 1.03 1.53 2.03 2.53 3.03 3.54 3.74 4.04 4.54 5.04 5.54 6.04 6.54 7.04 7.54 7.84 8.04 8.54 9.04 9.54 10.04 10.25 10.55 11.05 11.55 12.05 H11 1.05 1.55 2.05 2.55 3.05 3.56 3.76 4.06 4.56 5.06 5.56 6.06 6.57 7.07 7.57 7.87 8.07 8.57 9.07 9.57 10.07 10.29 10.59 11.09 11.59 12.09 H12 1.08 1.58 2.08 2.58 3.08 3.60 3.80 4.10 4.60 5.10 5.60 6.10 6.62 7.12 7.62 7.92 8.12 8.62 9.12 9.62 10.12 10.35 10.65 11.15 11.65 12.15 J6 - - - - - 3.50 3.70 4.00 4.50 5.00 5.50 6.00 6.50 7.00 7.50 7.80 8.00 8.50 9.00 9.50 10.00 10.20 10.50 11.00 11.50 12.00 J7 1.00 1.50 2.00 2.50 3.00 3.50 3.70 4.00 4.50 5.00 5.50 6.00 6.50 7.00 7.50 7.80 8.00 8.50 9.00 9.50 10.00 10.20 10.50 11.00 11.50 12.00 JS6 - - - - - 3.50 3.70 4.00 4.50 5.00 - - - - - - - - - - - 10.20 10.50 11.00 11.50 12.00 JS7 1.00 1.50 2.00 2.50 3.00 3.50 3.70 4.00 4.50 5.00 5.50 6.00 6.50 7.00 7.50 7.80 8.00 8.50 9.00 9.50 10.00 10.20 10.50 11.00 11.50 12.00 K7 0.99 1.49 1.99 2.49 2.99 - - - - - - - 6.50 7.00 7.50 7.80 8.00 8.50 9.00 9.50 10.00 10.20 10.50 11.00 11.50 12.00 M6 - - - - - - - - - - - - 6.49 6.99 7.49 7.79 7.99 8.49 8.99 9.49 9.99 10.19 10.49 10.99 11.49 11.99 M7 0.99 1.49 1.99 2.49 2.99 3.49 3.69 3.99 4.49 4.99 5.49 5.99 6.49 6.99 7.49 7.79 7.99 8.49 8.99 9.49 9.99 10.19 10.49 10.99 11.49 11.99 N6 0.99 1.49 1.99 2.49 2.99 3.49 3.69 3.99 4.49 4.99 5.49 5.99 - - - - - - - - - 10.18 10.48 10.98 11.48 11.98 N7 0.99 1.49 1.99 2.49 2.99 3.49 3.69 3.99 4.49 4.99 5.49 5.99 6.49 6.99 7.49 7.79 7.99 8.49 8.99 9.49 9.99 10.19 10.49 10.99 11.49 11.99 P6 0.99 1.49 1.99 2.49 2.99 - - - - - - - 6.48 6.98 7.48 7.78 7.98 8.48 8.98 9.48 9.98 10.18 10.48 10.98 11.48 11.98 P7 0.99 1.49 1.99 2.49 2.99 3.48 3.68 3.98 4.48 4.98 5.48 5.98 6.48 6.98 7.48 7.78 7.98 8.48 8.98 9.48 9.98 10.18 10.48 10.98 11.48 11.98 P8 0.99 1.49 1.99 2.49 2.99 3.48 3.68 3.98 4.48 4.98 5.48 5.98 6.48 6.98 7.48 7.78 7.98 8.48 8.98 9.48 9.98 10.17 10.47 10.97 11.47 11.97 P9 0.99 1.49 1.99 2.49 2.99 3.48 3.68 3.98 4.48 4.98 5.48 5.98 6.47 6.97 7.47 7.77 7.97 8.47 8.97 9.47 9.97 10.17 10.47 10.97 11.47 11.97 R6 - - - - - 3.48 3.68 3.98 4.48 4.98 5.48 5.98 - - - - - - - - - 10.17 10.47 10.97 11.47 11.97 R7 0.98 1.48 1.98 2.48 2.98 3.48 3.68 3.98 4.48 4.98 5.48 5.98 6.48 6.98 7.48 7.78 7.98 8.48 8.98 9.48 9.98 10.17 10.47 10.97 11.47 11.97 S7 0.98 1.48 1.98 2.48 2.98 3.48 3.68 3.98 4.48 4.98 5.48 5.98 6.47 6.97 7.47 7.77 7.97 8.47 8.97 9.47 9.97 10.17 10.47 10.97 11.47 11.97 S8 0.98 1.48 1.98 2.48 2.98 3.47 3.67 3.97 4.47 4.97 5.47 5.97 6.47 6.97 7.47 7.77 7.97 8.47 8.97 9.47 9.97 10.16 10.46 10.96 11.46 11.96 U7 - - - - - 3.47 3.67 3.97 4.47 4.97 5.47 5.97 6.47 6.97 7.47 7.77 7.97 8.47 8.97 9.47 9.97 10.16 10.46 10.96 11.46 11.96 X7 0.97 1.47 1.97 2.47 2.97 3.47 3.67 3.97 4.47 4.97 5.47 5.97 6.46 6.96 7.46 7.76 7.96 8.46 8.96 9.46 9.96 10.16 10.46 10.96 11.46 11.96 X8 0.97 1.47 1.97 2.47 2.97 3.46 3.66 3.96 4.46 4.96 5.46 5.96 6.46 6.96 7.46 7.76 7.96 8.46 8.96 9.46 9.96 10.15 10.45 10.95 11.45 11.95 Z8 0.97 1.47 1.97 2.47 2.97 3.46 3.66 3.96 4.46 4.96 5.46 5.96 6.45 6.95 7.45 7.75 7.95 8.45 8.95 9.45 9.95 10.14 10.44 10.94 11.44 11.94 231
