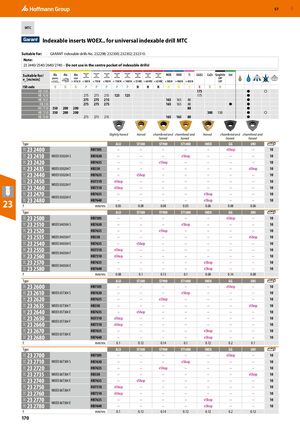

Сменные пластины WOEX для универсального сменного сверла MTC
Подходит для: Сменные сверла GARANT № 232298; 232300; 232302; 232310.
Важно
23 2440/2540/2640/2740 – Не использовать в центральном гнезде сменных сверл!
Пластины типа 23 2400 (WOEX 030204)
| Тип | ISO код | HB 7305 | HB 7630 | HB 7635 | HB 330 | HU 7310 | HB 7310 | HB 7640 |
|---|---|---|---|---|---|---|---|---|
| 23 2400 | – | HB7305 | – | – | – | – | – | eShop |
| 23 2410 | WOEX 030204 S | HB7630 | – | – | – | eShop | – | – |
| 23 2420 | – | HB7635 | – | – | eShop | – | – | – |
| 23 2435 | WOEX 030204 T | HB330 | – | – | – | – | – | eShop |
| 23 2440 | WOEX 030204 E | HB7635 | – | eShop | – | – | – | – |
| 23 2450 | WOEX 030204 F | HU7310 | eShop | – | – | – | – | – |
| 23 2460 | – | HB7310 | eShop | – | – | – | – | – |
| 23 2470 | WOEX 030204 E | HB7635 | – | – | – | – | eShop | – |
| 23 2480 | – | HB7640 | – | – | – | – | eShop | – |
Подача f: 0,05–0,08 мм/об
Пластины типа 23 2500 (WOEX 040304)
| Тип | ISO код | HB 7305 | HB 7630 | HB 7635 | HB 330 | HU 7310 | HB 7310 | HB 7640 |
|---|---|---|---|---|---|---|---|---|
| 23 2500 | – | HB7305 | – | – | – | – | – | eShop |
| 23 2510 | WOEX 040304 S | HB7630 | – | – | – | eShop | – | – |
| 23 2520 | – | HB7635 | – | – | eShop | – | – | – |
| 23 2535 | WOEX 040304 T | HB330 | – | – | – | – | – | eShop |
| 23 2540 | WOEX 040304 E | HB7635 | – | eShop | – | – | – | – |
| 23 2550 | WOEX 040304 F | HU7310 | eShop | – | – | – | – | – |
| 23 2560 | – | HB7310 | eShop | – | – | – | – | – |
| 23 2570 | WOEX 040304 E | HB7635 | – | – | – | – | eShop | – |
| 23 2580 | – | HB7640 | – | – | – | – | eShop | – |
Подача f: 0,08–0,14 мм/об
Пластины типа 23 2600 (WOEX 05T304)
| Тип | ISO код | HB 7305 | HB 7630 | HB 7635 | HB 330 | HU 7310 | HB 7310 | HB 7640 |
|---|---|---|---|---|---|---|---|---|
| 23 2600 | – | HB7305 | – | – | – | – | – | eShop |
| 23 2610 | WOEX 05T304 S | HB7630 | – | – | – | eShop | – | – |
| 23 2620 | – | HB7635 | – | – | eShop | – | – | – |
| 23 2635 | WOEX 05T304 T | HB330 | – | – | – | – | – | eShop |
| 23 2640 | WOEX 05T304 E | HB7635 | – | eShop | – | – | – | – |
| 23 2650 | WOEX 05T304 F | HU7310 | eShop | – | – | – | – | – |
| 23 2660 | – | HB7310 | eShop | – | – | – | – | – |
| 23 2670 | WOEX 05T304 E | HB7635 | – | – | – | – | eShop | – |
| 23 2680 | – | HB7640 | – | – | – | – | eShop | – |
Подача f: 0,1–0,2 мм/об
Пластины типа 23 2700 (WOEX 06T304)
| Тип | ISO код | HB 7305 | HB 7630 | HB 7635 | HB 330 | HU 7310 | HB 7310 | HB 7640 |
|---|---|---|---|---|---|---|---|---|
| 23 2700 | – | HB7305 | – | – | – | – | – | eShop |
| 23 2710 | WOEX 06T304 S | HB7630 | – | – | – | eShop | – | – |
| 23 2720 | – | HB7635 | – | – | eShop | – | – | – |
| 23 2735 | WOEX 06T304 T | HB330 | – | – | – | – | – | eShop |
| 23 2740 | WOEX 06T304 E | HB7635 | – | eShop | – | – | – | – |
| 23 2750 | WOEX 06T304 F | HU7310 | eShop | – | – | – | – | – |
| 23 2760 | – | HB7310 | eShop | – | – | – | – | – |
| 23 2770 | WOEX 06T304 E | HB7635 | – | – | – | – | eShop | – |
| 23 2780 | – | HB7640 | – | – | – | – | eShop | – |
Подача f: 0,1–0,2 мм/об
