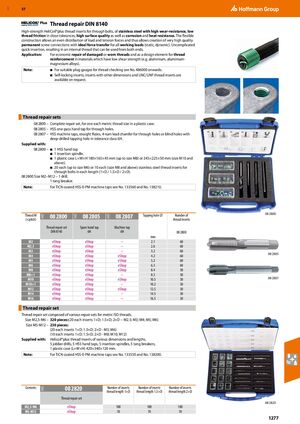

GBP 57 ​ Thread repair DIN 8140 High-strength HeliCoil®plus thread inserts for through bolts, of stainless steel with high wear-resistance, low thread friction in close tolerances, high surface quality as well as corrosion and heat resistance. The flexible construction allows an even distribution of load and tension forces and thus allows creation of very high quality permanent screw connections with ideal force transfer for all working loads (static, dynamic). Uncomplicated quick insertion, resulting in an internal thread that can be used from both ends. Application: For economic repair of damaged or worn threads and as a design element for thread reinforcement in materials which have low shear strength (e.g. aluminium, aluminium- magnesium alloys). Note: ■ For suitable plug gauges for thread checking see No. 486000 onwards. ■ Self-locking inserts, inserts with other dimensions and UNC/UNF thread inserts are available on request. Thread repair sets ​ 08 2800 – Complete repair set, for one each metric thread size in a plastic case. 08 2805 – HSS one-pass hand tap for through holes. 08 2807 – HSS machine taps, straight flutes, 4-turn lead chamfer for through holes or blind holes with deep-drilled tapping hole in tolerance class 6H. Supplied with: 08 2800 – ■ 1 HSS hand tap ■ 1 insertion spindle. ■ 1 plastic case L×W×H 180×165×45 mm (up to size M8) or 245×225×50 mm (size M10 and above). ■ 20 each (up to size M6) or 10 each (size M8 and above) stainless steel thread inserts for through bolts in each length (1×D / 1.5×D / 2×D). 08 2800 Size M2–M12 – 1 drill. 1 tang breaker. Note: For TiCN coated HSS-E-PM machine taps see No. 133560 and No. 138210. 08 2800 Thread M 08 2800 08 2805 08 2807 Tapping hole ⌀ Number of 04D 04D 04D (×pitch) thread inserts Thread repair set Spare hand tap Machine tap DIN 8140 6H 6H ​ 08 2800 mm ​ M2 eShop eShop – 2.1 60 M2,5 eShop eShop – 2.6 60 M3 eShop eShop – 3.2 60 08 2805 M4 eShop eShop eShop 4.2 60 M5 eShop eShop eShop 5.2 60 M6 eShop eShop eShop 6.3 60 M8 eShop eShop eShop 8.4 30 M8×1 eShop eShop – 8.3 30 M10 eShop eShop eShop 10.5 30 08 2807 M10×1 eShop eShop – 10.2 30 M12 eShop eShop eShop 12.5 30 M14 eShop eShop – 14.5 30 M16 eShop eShop – 16.5 30 Thread repair set ​ Thread repair set composed of various repair sets for metric ISO threads. Size M2,5-M6 – 320 pieces:(20 each inserts 1×D; 1.5×D; 2×D − M2.5; M3; M4; M5; M6) Size M5-M12 – 230 pieces: (20 each inserts 1×D; 1.5×D; 2×D - M5; M6) (10 each inserts 1×D; 1.5×D; 2×D - M8; M10; M12) Supplied with: Helicoil®plus thread inserts of various dimensions and lengths, 5 jobber drills, 5 HSS hand taps, 5 insertion spindles, 5 tang breakers, 1 plastic case (L×W×H) 420×340×120 mm. Note: For TiCN coated HSS-E-PM machine taps see No. 133550 and No. 138200. Contents 08 2820 Number of inserts Number of inserts Number of inserts 04D thread length 1×D thread length 1.5×D thread length 2×D Thread repair set 08 2820 M2,5-M6 eShop 100 100 100 M5-M12 eShop 70 70 70 1277
